80 cm Venting Hobs with Integrated Extraction Unit
Verified by manufacturer 2 days ago

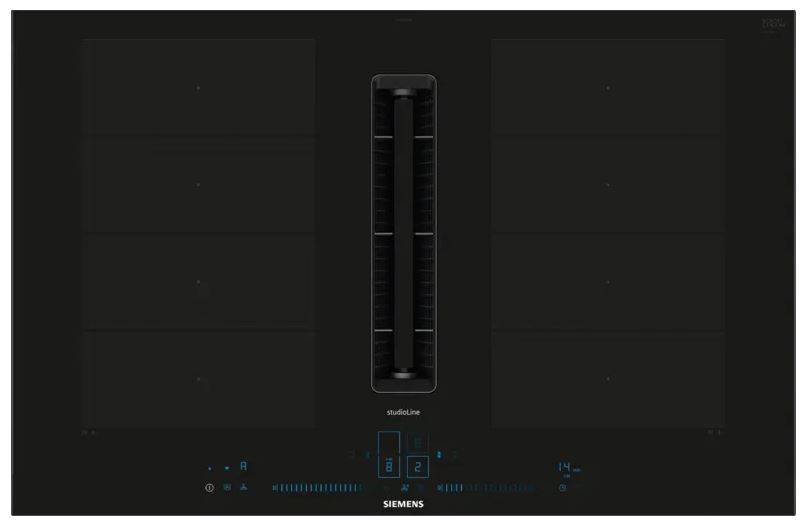

iQ700, Induction hob with integrated ventilation system, 80 cm, flush mount EX807NX68E
iQ700, Induction hob with integrated ventilation system, 80 cm, flush mount EX807NX68E
Induction hob with integrated ventilation system.
Application
For domestic applications.
Description
Induction hob with integrated ventilation system.
Features and benefits:
- flexInduction – smart cooking zone that adapts to the cookware.
- Blue user interface – elegant touch and slide control.
- climateControl sensor – monitors steam and smells, adjusts the power level automatically.
- Easy cleaning – minimal cleaning effort for the built-in extractor.
- Home connect: integrate the hob into a intelligent kitchen.
Models:
- EX877NX68E /EX807NX68E: 80 cm inductionAir venting hob, dual light slider control, 2 x flex and ventilation, cooking sensor plus ready, frying sensor plus, climatecontrol sensor, 7.4 kW, studioLine black steel trim. Blue dual lightSlider, improved flex features (auto join/split and transfer setting), TopFrame without front bevel (EX877NX68E only), includes four cleanAir Plus filters, a telescopic slider, and an adhesive seal for un-ducted installation.
General information
Color | Black |
Material | Ceramic Glass |
Shape | Rectangle |
Length | 512 mm 520 mm |
Width | 792 mm 812 mm |
Height | 223 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/330 Cooking equipment N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Ceramic hob with two 3.7 kW flexInduction zones.Guidance for specification option: Two flexInduction zones: use cookware of any shape or size anywhere within the 40 cm long zone.
|
Dimensions | |
Width (maximum) | 792 mm. |
Depth (maximum) | 512 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240 V.380–415 V. |
Material and finish | Ceramic black. |
Features | Automatic safety cut-out. |
Frequency | 50-60 Hz. |
Cable length | 110 cm. Manufacturer guidanceLength electrical supply cord. |
Output | Maximum output air extraction: 500 m³/h. |
Noise | 69 dB (A) re 1 pW. Manufacturer guidanceNoise level. |
Energy rating | B. |
Mounting | Flush-fitting into worktop. |
Control | dual light slider, front, illuminated. |
Heating element | Power of second heating element: 3.3 kW. |
Integral accessories | Slider for unducted recirculation, clean air plus odor filter. |
Accessories | Not required. HZ9VRPD1: Plinth diffusor. HZ9VRCR1: Clean air plus odor filter (replacement). HZ9VRCR0: cleanAir recirculation replenishment fil. HZ9VEDU0: Acoustics filter. |
Sustainability data
Material | Ceramic Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ700, Induction hob with integrated ventilation system, 80 cm EX877NX68E
iQ700, Induction hob with integrated ventilation system, 80 cm, flush mount EX807NX68E
