Advantage Range Unleaded Gable Abutment Trays

Verified by manufacturer 6 months ago

Cavity Trays Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Preformed, unleaded, DPC cavity trays for use at pitched roof/ gable abutments.

Jump to:
+44 (0)1935 474769 Website

Application

  • For use at stepped and staggered pitched roof gable abutments.
  • Designed to suit standard 75 mm high brickwork courses.


Description

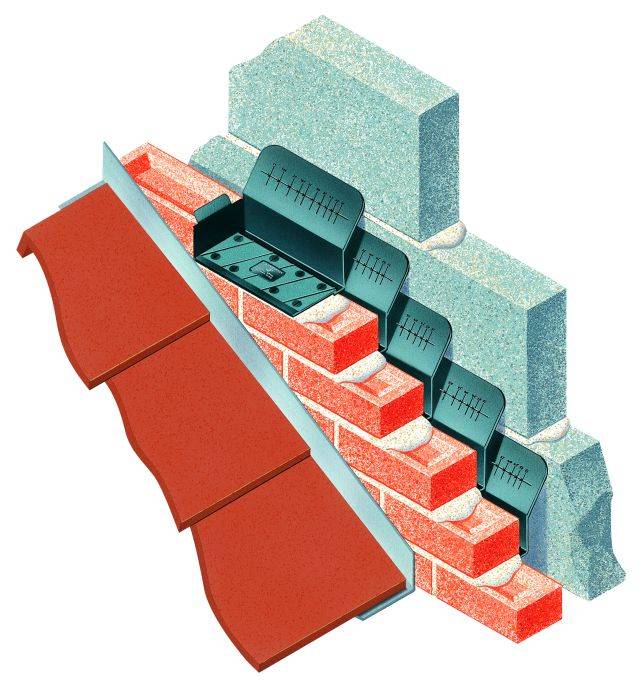

A range of preformed, self-supporting, unleaded, moulded DPC cavity trays for use at stepped and staggered pitched roof gable abutments.


The range includes:

  • Catchment trays: For building in at the bottom of a slope to catch water and direct it to the outside of a masonry wall via weep holes.
  • Intermediate trays: Available in either hand and built in at each course over the length of the abutment rake.
  • Ridge tray: Used to straddle a roof ridge abutment.
  • External angles: Used in place of unleaded catchment trays when commencing laying from the corner of a building.
  • Internal angles should commencement be from an internal masonry corner.


Features and benefits:

  • No attached lead flashing; allows for in situ fitment of flashings at an appropriate time in the construction sequence.
  • Variable cavity upstand to accommodate a wide range of cavity widths.
  • Optional polystyrene strips to aid insertion and fixing of flashing.

General information

Color

Black

Material

Polypropylene

Manufacturer guidance

Injection moulded solid DPC.

Length

330 mm

Width

160 mm

Height

195 mm

Uniclass

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Material

Polypropylene.

To fit cavity width

50 mm.

75 mm.

100 mm.

140 mm.

Location

As shown on drawing where any roof abuts cavity masonry.

Types

Catchment left hand.

Catchment right hand.

External angle.

Internal angle.

Intermediate left hand.

Show more

Rake out strips

Not required.

Required.

Manufacturer guidance

An optional polystyrene strip can be included as an attachment to the bed course element of the tray After the tray is built in, the strip can be raked out to provide a void into which a flashing can be terminated and secured.

Profile

Guidance for specification option:

Available in a range of profiles; a selection is illustrated in technical literature. Cavity Trays Ltd can advise on requirements and submit recommendations.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Manufacturer guidance

Injection moulded solid DPC.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.3 kg CO₂ eq/kg

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Third party certifications

EPD

EPD

EPD - 0848

Literature

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
