Type DPC Profiles – Raft Construction/ Ground Beam
Verified by manufacturer 8 months ago
Semi-rigid polyethylene perimeter DPC.
Application
To provide perimeter DPC when constructing using raft foundations or where the cavity does not continue below DPC level.
Description

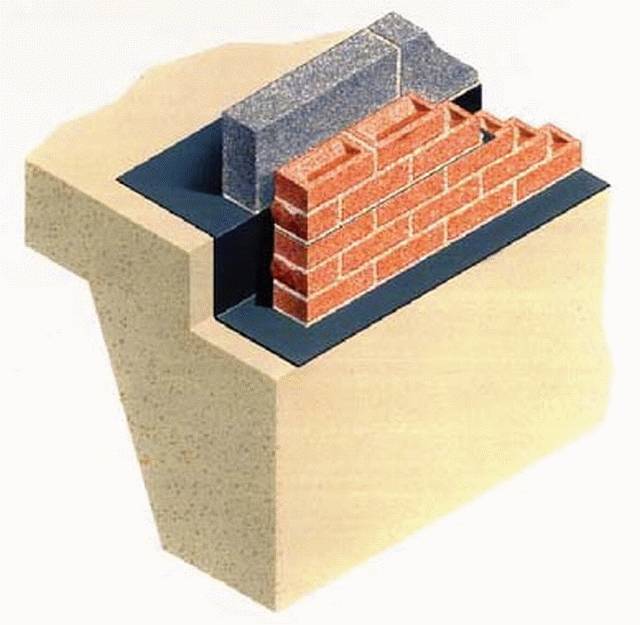

Perimeter damp proof course for raft foundations or where the cavity does not continue below DPC level. It is bedded and lapped on the foundation prior to the commencement of masonry being laid and does not sag or distort.
Features and benefits:
- Chlorofluorocarbon (CFC) free with zero ozone depletion potential (ODP).
- Establishes gas protection provision.
- Integrates with oversite membrane.
- Matches raft edge dimensions.
- One-piece DPC wall protection.
- Angles: 400 x 400 mm.
- Rise corresponds with the masonry course height.
General information
Color | Black |
Finish | Textured |
Material | Polyethylene |
Shape | Other |
Length | 2400 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | J40/297 Waterproofing/ damp-proofing/ gas-retardant membrane |
Specification data - Preformed cavity trays
Material | Polyethylene. |
Height | Manufacturer guidanceConsult manufacturer and insert requirements. |
Length (effective) | 2400 mm. |
Rise | 150 mm. 225 mm. |
Purpose | Damp-proof membrane. |
PhysicalPropertiesColour | Black. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
