Cavicloaks and Cavilengths

Verified by manufacturer 6 months ago

Cavity Trays Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Preformed, self-supporting, moulded DPC cavity wall cloaks and lengths.

Jump to:
+44 (0)1935 474769 Website

Application

For use in cavity walls.

Description

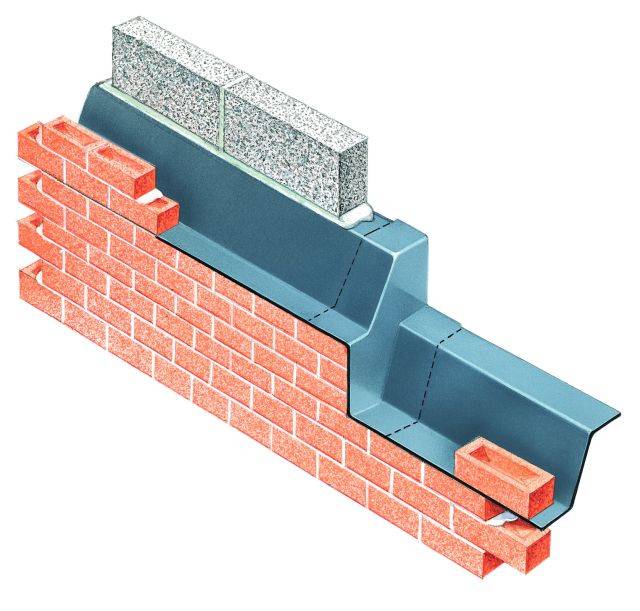

A wide range of standard, preformed, modular, self-supporting moulded, DPC cavity wall cloaks, with the option of custom made items; shaped to fit construction details at corners, columns, steps and angles, Cavicloaks and Cavilengths to be incorporated, lapped and joints sealed in cavity walls to form a continuous protective shaped damp-proof course (DPC).


Cavicloaks can be linked to Cavity Trays Ltd Sitesealer membranes.

General information

Color

Black

Material

Polypropylene

Length

2400 mm

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/380 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/58 Preformed dpc/ cavity tray junction cloaks/ stop ends

Specification data - Preformed cavity trays

Material

Polypropylene.

To fit cavity width

___ mm.

Guidance for specification option:

State actual cavity width - available to suit all dimensions.

Location

As on drawing.

Dpc thickness

1.5 mm.

Guidance for specification option:

standard thickness

Upstand vertical rise

150 mm.

225 mm.

___ mm.

Guidance for specification option:

State requirement - available to suit all rise dimensions.

Inner skin returns

Not required.

Required.

Stop ends

CC/ SE/ 040.

CC/ SE/ 0410.

CC/ SE 0160.

As shown on drawing ___.

Column cloaks

Cavibak CC/ C/ 090.

CC/ C/ 0400.

CC/ C/ 0450.

CC/ CC/ 0270.

Corner CC/ CEC/ 0240.

Show more

Angle cloaks

External CC/ EC / 010.

External CC/ EC/ 0380.

External CC/ EC/ 0390.

Internal CC/ IC/ 0320.

Internal CC/ IC/ 0370.

Show more

Step down/ level change cloaks

Change of level/ change of direction CC/ SLIC/ 060.

Level change/ external corner CC/ S/ 0110.

Step down (large) CC/ LC/ 0340.

Guidance for specification option:

150–600 mm high.

Step down (small) CC/ LC/ 080.

As shown on drawing ___.

Change of profile

CC/ COP/ 0190.

Change of profile/ change of direction/ change of level CC/ CLCP/ IC/ 0270.

Frame CC/ FC 0420.

As shown on drawing ___.

Sill/ threshold cloaks

Threshold CC/ S/ 060.

Window Sill tray (dependent on size) CC/ UC/ 0350.

As shown on drawing ___.

Other cloaks

Cloak around vertical vent sleeve.

CC/ CS/ 0440 CC/ CS/ 050.

Cloak over vent CC/ SCC/ 0330.

Party Wall link CC/ PWL/ 0220.

Type C/P with pipe projecting through cloak CC/ CP/ 0360.

Show more

Windpost cloaks

CC/ WC/ 0280.

CC/ WC/ 0300.

CC/ WC/ 0430.

CC/ WRS/ 0290.

As shown on drawing ___.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.89 kg CO₂ eq/kg

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Third party certifications

EPD

EPD

EPD - 0847
