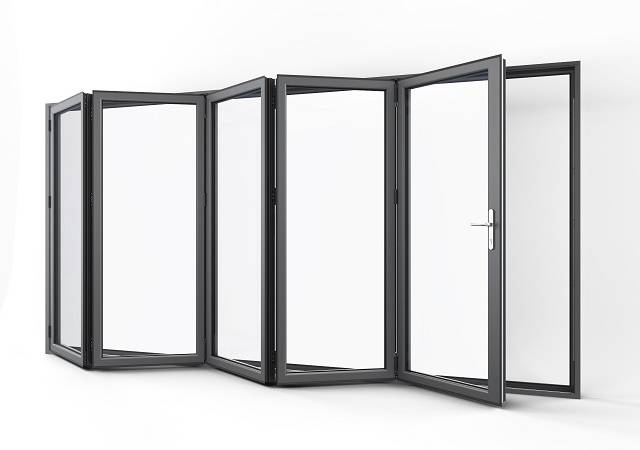

Ali FOLD Folding Door System

Verified by manufacturer 2 months ago

Heavy duty

Senior Architectural Systems Ltd Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

Aluminium folding door system.

Jump to:
+44 (0)1709 772600 Website

Application

Suitable for both commercial and domestic use, Ali FOLD doors have a polyamide thermal break to give high thermal efficiency, and are fully compatible with all Senior windows and curtain walling.

Description

A high-performance range of folding aluminium doors. Available in a range of colours and finishes both inside and out, the doors have narrow sightlines and are available in a choice of configurations and sizes. For maximum daylight, a heavy-duty version allows leaf sizes of 1300 x 2400 mm, with a maximum leaf weight of 125 kg. Tested to PAS 24, BS 6375-1, BS 6375-2 and BS 6375-3 Annex A.


Features and benefits:

  • High-performance polyamide thermal barrier providing thermal transmittance (U-values) as low as 1.9 W/m²K.
  • Narrow sightlines.
  • High-tech roller design.
  • Standard leaf sizes are available up to 1000 x 2616 mm, weight up to 100 kg.
  • Non-rebated threshold available.
  • Heavy duty version available with widths up to 1300 mm.
  • 100% recyclable.
  • Life expectancy of 40 years.
  • Also available as double or single doors (specified separately).


Glazing U-values:

Varies depending on type and size of door; average U-values available are:

CEN standard - standard (2000 x 2180 mm):

  • 28 mm double glazed unit: 1.64 W/m²K.
  • 48 mm triple glazed unit: 1.21 W/m²K.

CEN standard - Thermally enhanced (2000 x 2180 mm):

  • 28 mm double glazed unit: 1.61 W/m²K.
  • 48 mm triple glazed unit: 1.219 W/m²K.

General information

Finish

Powder-coated

Anodized

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

H11/135 Doors

L20/530 Sliding folding external doors

Product range

Ali FOLD Door System

Specification data - Sliding door and partition sets

Third party accreditation

To PAS 24, Annex A.

Door leaves

-

Construction

-

Manufacturer guidance

Constructed using mitred corners, joined with crimped or mechanical cleats; alignment chevrons assist in clean, accurate mitres. A proprietary sealant is used on all metal joints.

Operation

Manual.

Accessories

Guidance for specification option:

Insert requirements, consult manufacturer for information.

Design

Heavy duty.

Type

Open in.

Open out.

Configuration

Guidance for specification option:

Insert requirement.

Threshold

Manufacturer's standard.

Non-rebated low threshold.

Mullion

Manufacturer's standard.

Floating.

Security

Tested to PAS24.

Standards

To BS EN 755-9, BS EN 12020-2, BS 3734, BS EN 12206-1, BS 3897, BS 6375-1, BS 6375-2 and BS 6375-3.

Framing

-

Manufacturer guidance

Extruded aluminium alloy 6060 or 6063 T6 to BS EN 755-9 or BS EN 12020-2.

Barriers

-

Manufacturer guidance

Polyamide manufactured in accordance with PA66 GF25.

Gaskets

-

Manufacturer guidance

Manufactured in accordance with BS 3734.

Weight

125 kg.

Dimensions

1300 x 2400 mm.

Guidance for specification option:

Width x Height.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100%

Third party certifications

UKAS

UKAS

ISO 14001

UKAS

UKAS

ISO 45001

UKAS

UKAS

ISO 9001
