Application

The ramps can accommodate height differences in floor coverings between 5-7mm or 10.5-15mm


Suitable for use in heavy traffic environments, and perfect for environments subject to wheeled traffic e.g. wheelchairs and shopping trolleys.


RAR077 - for carpet tiles, loose lay PVC tiles etc.

RAR157 - for easy access with pallet trucks, trolleys and wheelchairs.

Description

These heavy duty aluminium ramps provides a safe transition between flooring materials of different heights e.g. ceramic tile and vinyl.


The ramps can accommodate height differences in floor coverings between 5-7mm or 10.5-15mm


Suitable for use in heavy traffic environments, and perfect for environments subject to wheeled traffic e.g. wheelchairs and shopping trolleys.


RAR077 - for carpet tiles, loose lay PVC tiles etc.

RAR157 - for easy access with pallet trucks, trolleys and wheelchairs.



General information

Finish

Anti-slip

Material

Aluminium

Length

2700 mm

Height

Bespoke

Guidance for specification option:

RAR077 5-7mm

RAR157 10.5-15mm

Uniclass

Pr_35_90_31_58 One-part floor transition stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

Covers

Specification data - One-part floor transition strips

Standard product features

Colour/ Finish:

Matt Silver 81.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

100% Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Literature

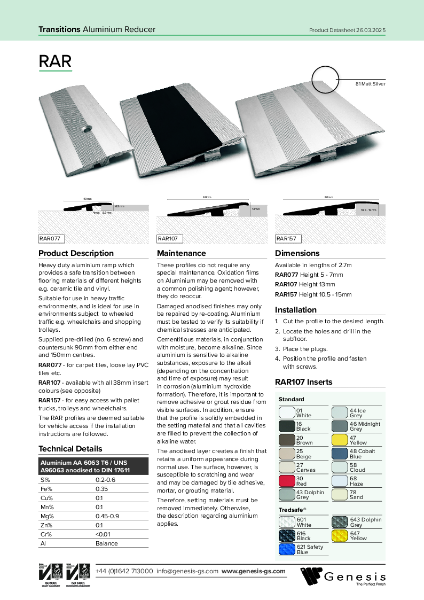

RAR Datasheet

RAR Datasheet
