Aluminium Z-Bar Carpet Lock & Z-Bar Pro - Transition

Verified by manufacturer 5 months ago

Z-Bar TGA909

Genesis Global Systems Limited Variant:

Profile provides an effective transition between different heights and types of floor finishes.

Jump to:
+44 (0)1642 713000 Website

Application

For transition between different heights and types of floor finishes.

Description

The Aluminium Z-Bar carpet lock provides an effective transition between different heights and types of floor finishes. Simple to install the TGA profile provides a neat finish and protects the edges of both floor coverings even when they slightly different depths.


The TGS Aluminium Z-Bar Pro is a premium design that incorporates an integral spacer making this the perfect solution for joining standard pile carpets to laminate, stone and other hard floors.

Simple to install the TGS profile provides a durable solution that protects the edge and allows for expansion gaps.

  • Improved, more robust design.
  • Increased depth to accommodate thicker tiles.
  • Available in retail friendly packaging with shrink wrap, labels and hooks.
  • 0.92 m single door lengths.

General information

Color

Silver

Bronze

Finish

Matt

Brass

Material

Aluminium

Length

900 mm

Guidance for specification option:

TGA909 ,TGA149, TGS159

2700 mm

Guidance for specification option:

TGA907

Width

28 mm

30 mm

Height

9 mm

Guidance for specification option:

TGA909 & TGA907

14 mm

Guidance for specification option:

TGA149

15 mm

Guidance for specification option:

TGS159

Uniclass

Pr_35_90_31_58 One-part floor transition stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

M50/70 Edgings and cover strips

M50/740 Edgings and cover strips

M51/510 Edgings and cover strips

Product range

Covers

Specification data - One-part floor transition strips

Form

Straight.

Profile

Twin top.

Material

Aluminium.

Finish

Matt silver 81.

Matt brass 83.

Brass effect 87.

Bright silver 91.

Colour

As finish.

Size

900 x 28 x 9 mm.

Guidance for specification option:

Length x width x depth.

Carpet gripper

Included (single side).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

Partially (remove fixing components, recycle aluminium, Dispose of Fixing components

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Literature

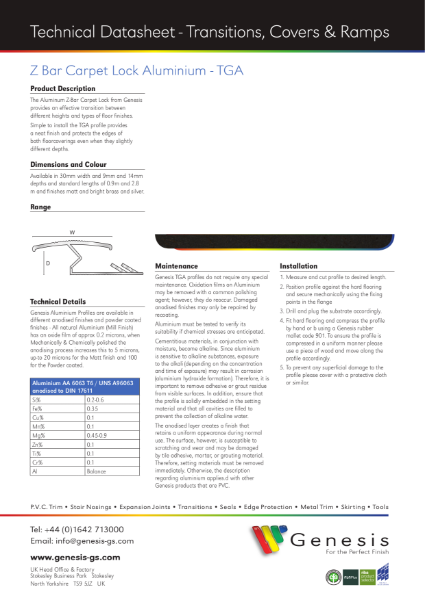

TGA Datasheet

TGA Datasheet

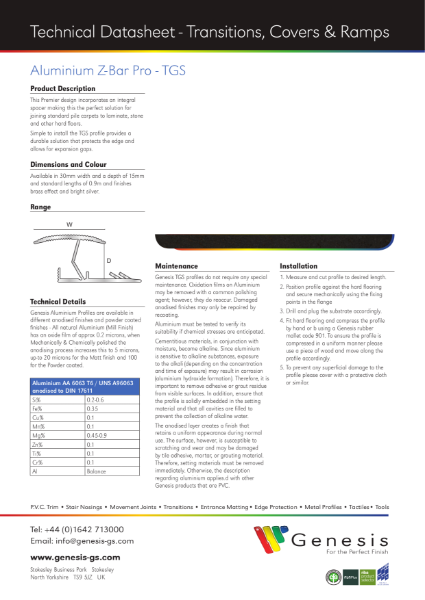

TGS Datasheet

TGS Datasheet
