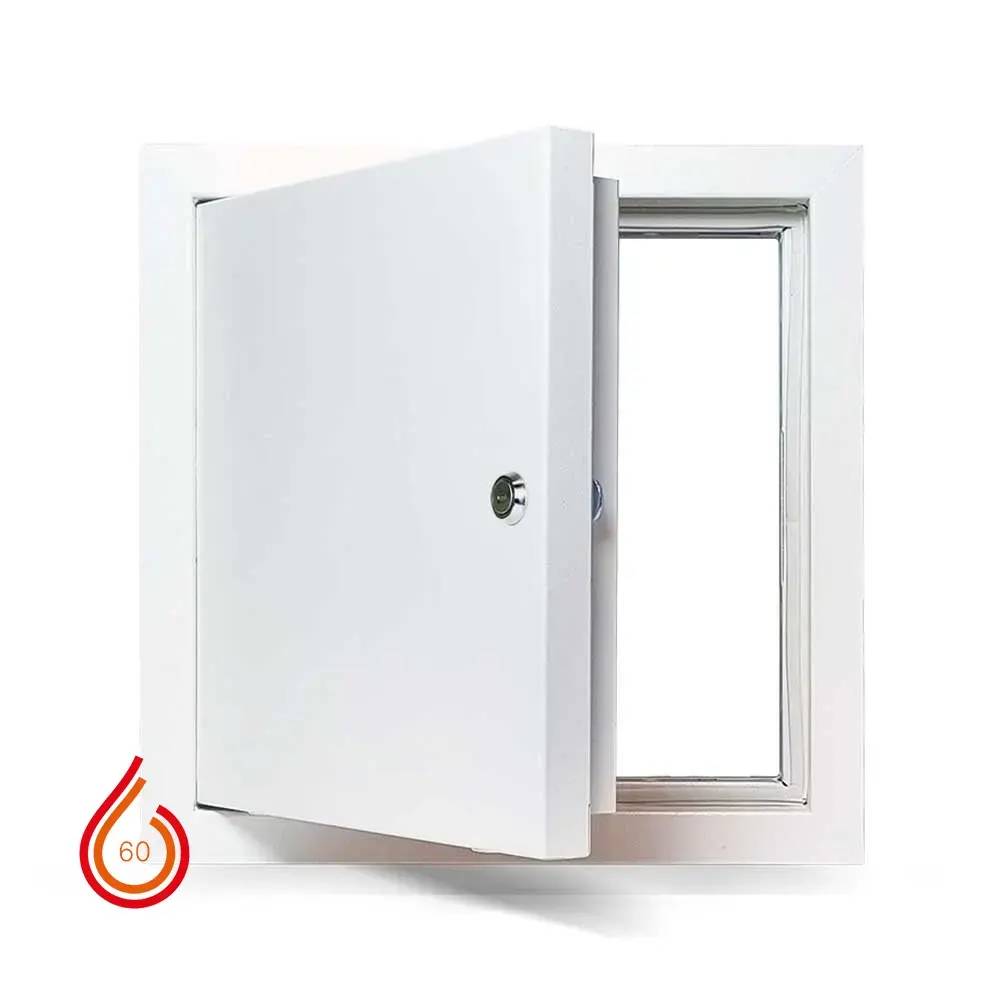

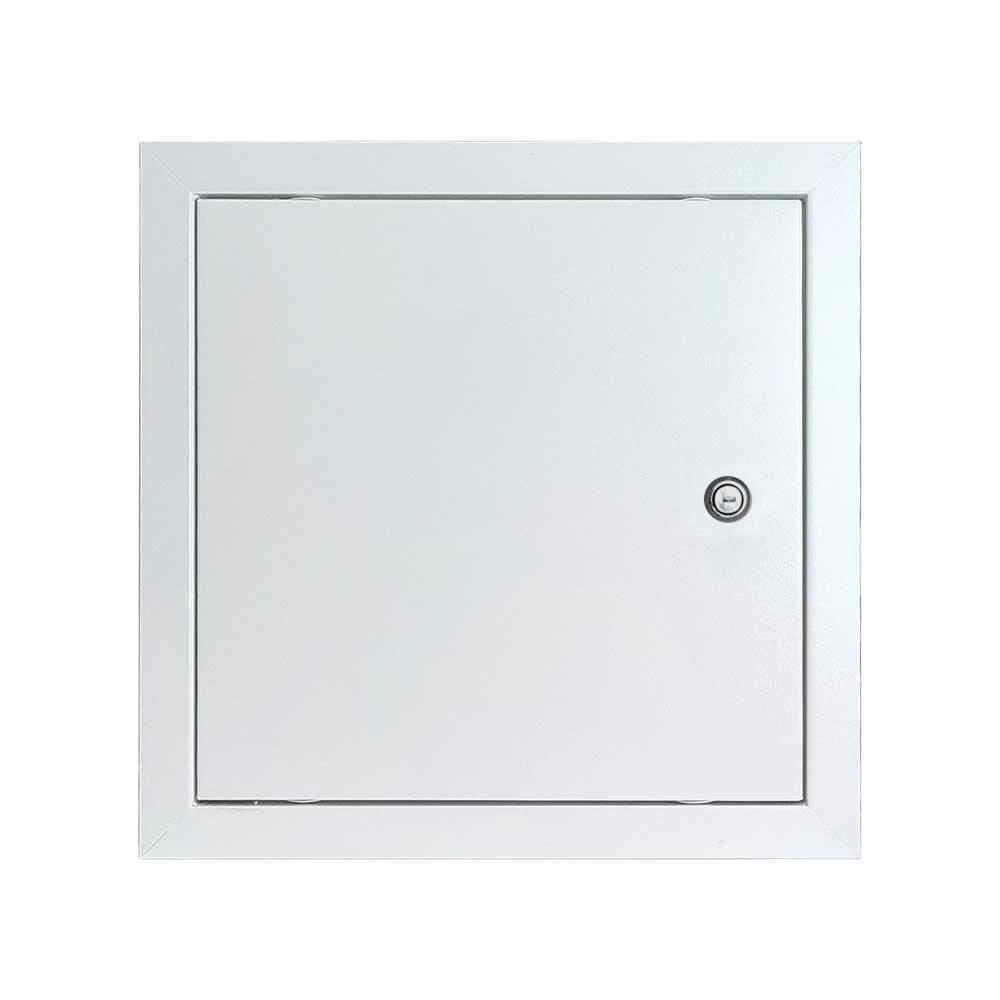

Anti-Ligature Access Panel

Verified by manufacturer 3 months ago

Ceiling Mounted

Access Building Products Ltd Variant:

Zintec steel access panels designed to minimize the risk of ligature attachment points.

Jump to:
+44 (0)1423 874753 Website

Application

Designed for use in settings where there is a need to prevent individuals from self-harming or committing suicide. They are used routinely in:

  • Mental health facilities.
  • Prisons.
  • Hospitals.
  • Specialist educational facilities.
  • Care homes.
  • Detox and rehabilitation centres.

Description

Anti-ligature access panels are designed for use in settings where there is a need to prevent individuals from self-harming or committing suicide. These panels are designed to minimize the risk of ligature attachment points, thereby reducing the possibility of self-harm or suicide attempts.


Features and benefits:

  • Available with picture or beaded frame.
  • Available with secure key locks (keyed alike).
  • Tested to BS 476-22:1987 1 hour face side.
  • Made of Zintec steel.
  • 36 dB acoustic reduction.
  • Bespoke sizes, made to order (minimum size 300 x 300, maximum size 750 x 600 mm).

General information

Color

White

Finish

Powder-coated

Material

Zintec steel

Shape

Square

Rectangle

Length

300 mm

Guidance for specification option:

Minimum length.

750 mm

Guidance for specification option:

Maximum length.

Bespoke

Guidance for specification option:

Made to order.

Width

300 mm

Guidance for specification option:

Minimum width.

600 mm

Guidance for specification option:

Maximum width.

Bespoke

Guidance for specification option:

Made to order.

Height

53 mm

Warranty description

Two year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

60 minutes to BS 476-22.

Position

Ceiling-mounted.

Size

Guidance for specification option:

Made to order. Consult manufacturer and insert requirements.

  • Minimum dimensions: 300 x 300 mm.
  • Maximum dimensions: 750 x 600 mm.

Manufacturer guidance

When selecting a access panel, please add 5 mm to the size when creating a structural opening. E.g. an access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm.

Frame

Bead for taping and jointing.

Exposed picture frame type.

Panel

-

Material

Steel.

Guidance for specification option:

Zintec steel.

Integral finish

Powder-coated.

Latch or lock type

Key operated lock.

Operation

Concealed steel hinges, downward opening.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Colour

Pure white, RAL 9010.

Depth

53 mm.

Sound reduction

36 dB.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Anti-Ligature Access Panel Brochure

Anti-Ligature Access Panel Brochure

Anti-Ligature Access Panel

Anti-Ligature Access Panel
