BASF Elastospray® LWP 1672/1 - Closed Cell Spray Insulation
Verified by manufacturer 6 months ago
Euroclass E (standard)
Euroclass E (standard)
KIWA BDA
Certificate type
Elastospray is a two-component, high-density sprayed (in-situ) thermal insulation.
Application
Suitable for:
- Pitched roofs
- External roofs
- Internal walls
- Agriculture
- Floors
- Underfloor
- Soffits
- Timber frame walls
Suitable substrates include:
- Concrete
- Brick
- Wood
- Steel
Description
Elastospray is a closed cell insulation with low warning potential, as it is free of all ingredients that contribute to global warming due to greenhouse gas effect. The material is suitable for almost all areas of the building envelope and delivers low thermal conductivity owing to its closed-cell structure combined with airtightness, while permitting insulation without thermal bridges. It delivers simple and fast installation, high compressive strength, and water vapour permeability.
Features and benefits:
- Low thermal conductivity due to closed-cell structure.
- Air-tight.
- Insulation without thermal bridges.
- Water-tight and water resistant.
- Good mechanical properties.
- High compressive strength.
- Hydrofluorocarbon (HFC) free.
- Appropriate water vapour permeability.
- Full adhesion to the substrate without the need for primers or mechanical fixings.
- Extremely low global warming potential (GWP) of 1 and zero ozone depletion (ODP).
- Manufactured by BASF, the leading global producer of polyurethane spray foam.
- CE marked and manufactured.
- KIWA (BDA) Certified.
General information
Color | Cream |
Material | Polyurethane (PUR) Guidance for specification option: Including a mixture of polyols and additives (component A) and methylene diphenylmethane diisocyanate (MDI, component B) |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | M22/120 Sprayed M22/170 Thermal transmittance (U-value) M22/130 Externally sprayed P10/60 Air and vapour control layer P10/310 Air and vapour control layer P10/205 Insulation sprayed between studs P10/185 Soffit insulation P10/147 Polyurethane foam sprayed between rafters |
Specification data - Polyisocyanurate (PIR) foam insulation
Standard | To BS EN 14315-1.Guidance for specification option: 2013. |
Fire performance | Euroclass E.Guidance for specification option: For all thicknesses. To EN 13501-1. Manufacturer guidanceReaction to fire. |
Thickness | 15–40 mm (per layer). Guidance for specification option: Dependent on application, consult manufacturer for information. The thickness of each applied layer should be between 15–40 mm. In order to maintain an adequate dimensional stability, it is not recommended to apply thicker layers. See manufacturer's literature for performance charts related to different thicknesses. |
BaseMaterial | Closed cell foam. Guidance for specification option: Including a mixture of polyols and additives (component A) and methylene diphenylmethane diisocyanate (MDI, component B). |
Viscosity at 25°C | 260 mPa/s and 220 mPa/s. Guidance for specification option: Component A and component B. |
Density | 1.18 g/cm³ and 1.23 g/cm³. Guidance for specification option: Component A and component B. Breaker free rise density (FRB): 33 kg/m³. Manufacturer guidanceAt 25°C. |
Tack free time (hours at 23°C and 60% Relative Humidity (RH)) | 9–10 s. Guidance for specification option: Cream time: 4 s. Gel time: 7–8 s. |
Application temperature | 540°C. |
RelativeHumidity | <85%. |
MoistureContent | ≤20%. |
Water absorption | <0.20 kg/m². Guidance for specification option: To EN 1609. (Total immersion: <2%). Manufacturer guidancePartial immersion. |
Water vapour resistance factor | ≥70 µ. Guidance for specification option: To EN 12086. |
Resistance | 1800 Pa. Manufacturer guidanceResistance to rainwater. |
Closed cell content | ≥90%. Guidance for specification option: To ISO 4590. |
Adhesion strength | >100 kPa. Guidance for specification option: To EN 14315-1. |
CompressiveStrength | ≥200 kPa. Guidance for specification option: To EN 826. |
Deformation capability | 40 kPa. Guidance for specification option: Load. To EN 1605. Temperature: 70±1°C. |
Temperature | 5–40°C. Manufacturer guidanceMixing. |
Mix | 100:104. Guidance for specification option: Component A: Component B. Manufacturer guidanceMixing ratio. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Third party certifications
KIWA BDA

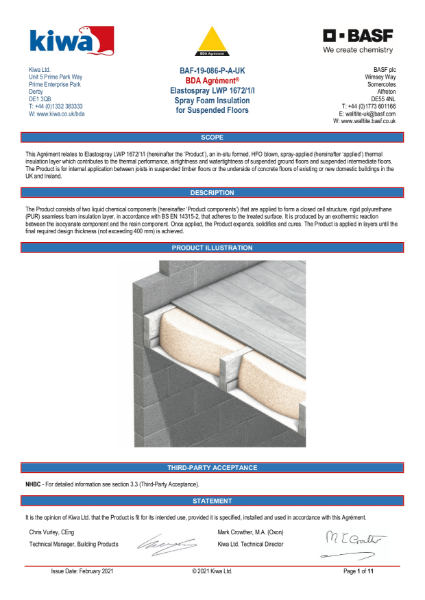

Elastospray LWP KIWA - Floor
KIWA BDA
Elastospray LWP KIWA - Pitched Roof
KIWA BDA

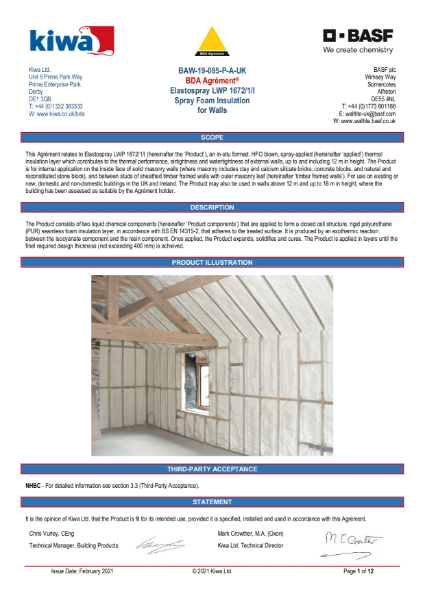

Elastospray LWP KIWA - Wall
Literature
BASF Elastospray LWP Brouchure

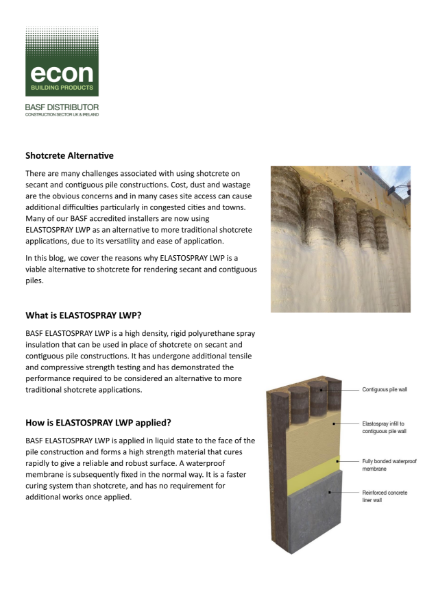

Shotcrete Alternative

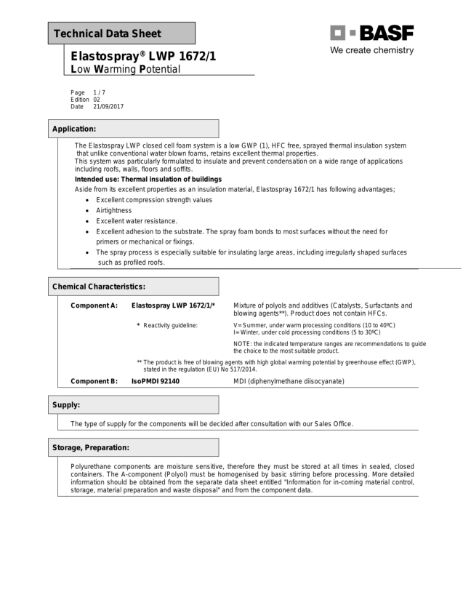

Elastospray LWP 1672/1 Technical Data Sheet
Case studies
Basement Soffit - Elastospray LWP
Underfloor Insulation by Q-Bot
Grand Designs Shipping Container House
Grain Silo Suffolk - Elastospray LWP 1672/1 Case Study
