Beneath Heat Clip & Rail Screeded Floor UFH System - Traditional Underfloor Heating System

Verified by manufacturer 3 months ago

Beneath Heat

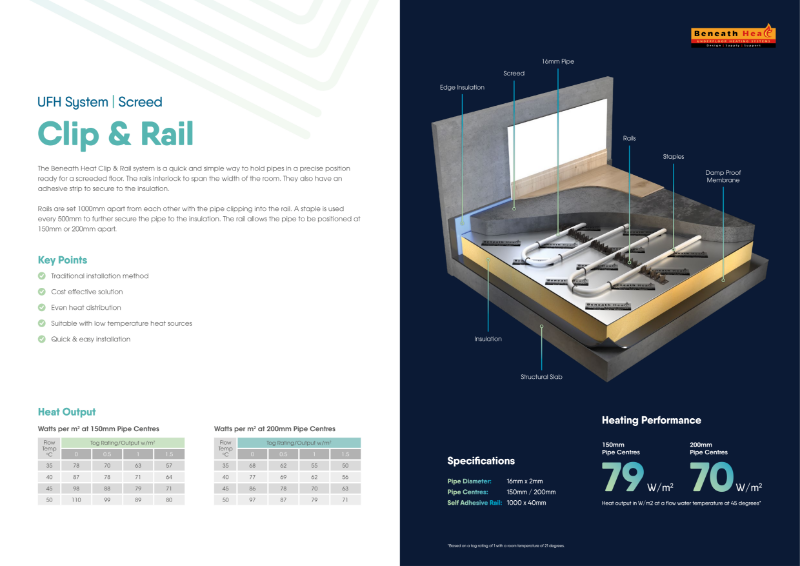

Traditional underfloor heating (UFH) system for use in a screed floor, using a clip & rail arrangement to hold the pipe in place on top of insulation.

Jump to:
07944706296 Website

Application

Traditional underfloor heating (UFH) system for use in a screed floor. Typically for new builds or renovation where floor is excavated.

Pipe laid on insulation before screeding with either a traditional sand & cement screed or a liquid screed.

Description

Traditional underfloor heating (UFH) system for use in a screed floor.

The rails interlock to span the width of the room. They include an adhesive strip for securing to the insulation.

Rails are set 1000 mm apart from each other with the pipe clipping to the rail. A staple is used every 500 mm to further secure the pipe to the insulation. The rail allows the pipe to be positioned at 150 or 200 mm centres.


Features and benefits:

  • Holds pipes in a precise position.
  • Cost-effective solution.
  • Even heat distribution.
  • Suitable for use with low temperature heat sources.
  • Quick and easy installation.
  • Compatible with 16 mm-diameter PERT and MLCP pipes.
  • Pipe to sit typically within 40–65 mm of screed.
  • Heating performance*:
  • 150 mm pipe centres: 79 W/m².
  • 200 mm pipe centres: 70 W/m².


*Heat output at a flow water temperature of 45°, based on a tog rating of 1 with a room temperature of 21°. Consult manufacturer's literature for full details.

General information

Color

Black

Finish

Matt

Material

Plastic

Shape

Rectangle

Length

1000 mm

Warranty description

Two year

Guidance for specification option:

Electrical and mechanical products.

50 year

Guidance for specification option:

Pipes.

Manufacturer guidance

Consult manufacturer for full details.

Uniclass

Ss_60_40_92_94 Underfloor low-temperature hot water heating systemsPrimary

CAWS

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Specification data - Underfloor low-temperature hot water heating systems

System performance

Guidance for specification option:

Insert requirements.

Heat source

Low-temperature hot water heating system.

Guidance for specification option:

Specify details separately.

Pumps

Beneath Heat underfloor heating pump pack.

Beneath Heat single area pump pack.

Manufacturer guidance

Consult manufacturer for details.

Pipework

-

Distribution

Guidance for specification option:

Insert requirements.

Underfloor

16 mm PERT pipes and fittings.

16 mm MLCP pipes and fittings.

Manufacturer guidance

Installation tools available, including pipe decoilers, pipe cutters and pipe calibrators.

100 metres will cover approx. 20 m², 200 metres approx. 30 m² and 240 meters approx. 40 m².

Jointing materials

Guidance for specification option:

Insert requirements.

Insulation

Edge insulation and insulation panels.

Guidance for specification option:

For use with traditional sand & cement screed.

Edge insulation and insulation panels with polythene sheeting.

Guidance for specification option:

For use with liquid screed.

Manufacturer guidance

Consult manufacturer for details.

  • Edge insulation to be fitted around the perimeter of the heated room, providing a barrier against heat loss and expansion. Standard, apron and apron/adhesive options available
  • Insulation panels are laid beneath the pipes, covering the complete floor area.

Pipe accessories

None.

Pipe conduit.

Pipe supports

Interlocking clip rails with staples.

Manufacturer guidance

Compatible staple gun available.

Rails placed 1000 mm apart; staples to be used every 500 mm.

Valves

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Options include manifolds, blend valves, heat pump valves and return elbows.

Water treatment

Guidance for specification option:

Consult manufacturer for options and insert requirements or omit.

Accessories

230 V Saswell dial thermostat.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

230 V Saswell programable thermostat.

230 V Saswell WiFi thermostat.

Wireless Saswell programable thermostat.

Wireless Saswell WiFi thermostat.

Saswell WiFi gateway

Controls

-

Controllers

Saswell 230 V two wire actuator.

230 V wiring centre.

230 V wireless wiring centre.

Control valves

Saswell two-port motorised valve.

Sensors

Not required.

Saswell floor/ air sensor.

Single area pump pack adaptors.

Guidance for specification option:

Not for use with single area pump pack.

Floor components

Screed.

Floor covering

Guidance for specification option:

Insert requirements. Specify separately if required.

Sustainability data

Contains Red List materials

No

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

Beneath Heat Clip & Rail UFH System

Beneath Heat Clip & Rail UFH System

Underfloor Heating Product and Technical Guide

Underfloor Heating Product and Technical Guide
