Beneath Heat Tacker Panel Screeded Floor UFH System - Underfloor Heating System

Verified by manufacturer 3 months ago

Beneath Heat

Underfloor heating (UFH) system for use in a screed floor, using a lightweight castellated tacker panel to hold the pipe in place prior to screeding.

Jump to:
07944706296 Website

Application

Underfloor heating (UFH) system for use in a screed floor. Typically for new builds or renovation where floor is excavated.

Pipe laid on insulation before screeding with dry or wet screed.

Description

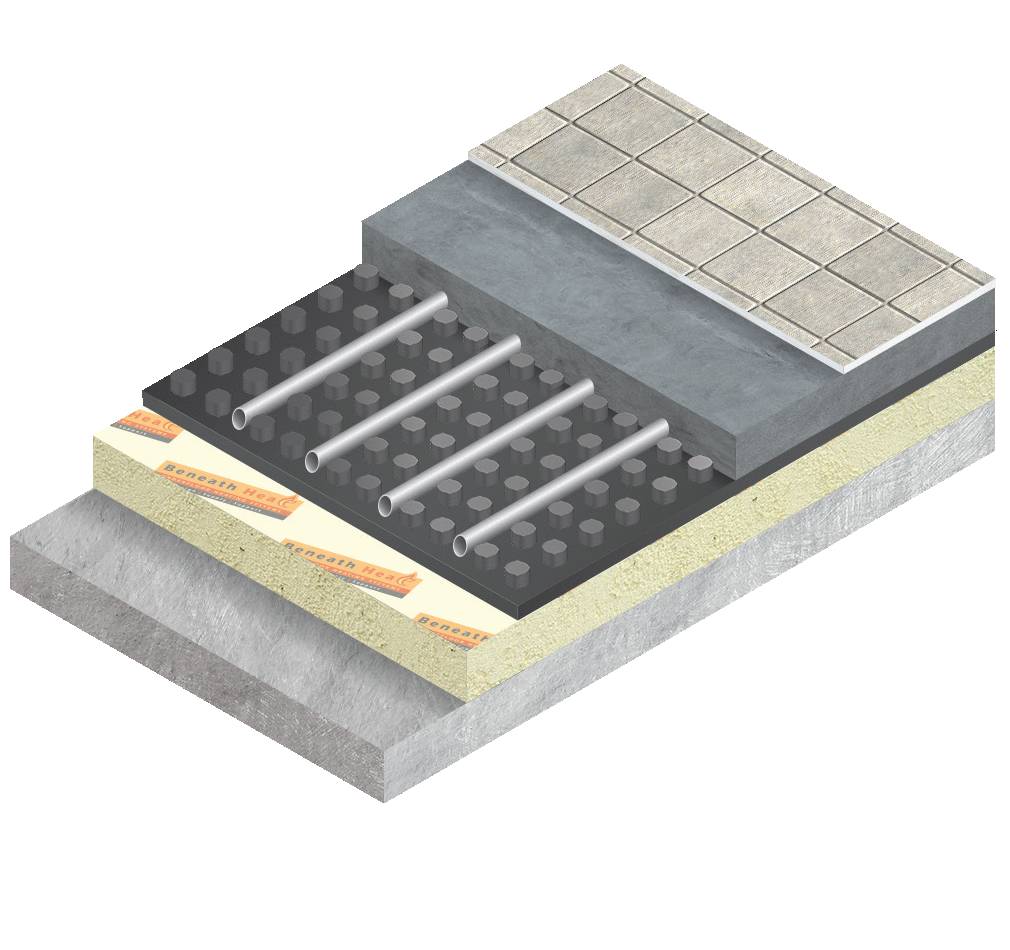

Underfloor heating (UFH) system for use in a screed floor, using a lightweight castellated tacker panel laid on top of the insulation to hold the pipe in place.

The panels interlock, with castellations 50 mm to allow pipes to be positioned at 150 or 200 mm centres.


Features and benefits:

  • Suitable for use with both heat pumps and boilers.
  • Each tray covers a nominal 1 m² (0.96 m² once interlocked).
  • Precise, even heat distribution across the room.
  • If required panels can be fixed down, particularly along the perimeter, using adhesive, screws, clips or high-strength double-sided adhesive tape (where practical).
  • Dry or wet screed can be used (for wet screed it is recommended to start the screeding at the centre of the installation, not at the edges).
  • Compatible with 16 mm-diameter PERT and MLCP pipes.
  • Pipe to sit typically within 40–65 mm of screed.
  • Heating performance*:
  • 150 mm pipe centres: 79 W/m².
  • 200 mm pipe centres: 70 W/m².


*Heat output at a flow water temperature of 45°, based on a tog rating of 1 with a room temperature of 21°. Consult manufacturer's literature for full details.


Standard checks should be carried out prior to screeding as it may be beneficial to load the pipes.

General information

Color

Black

Finish

Grooved

Material

Acrylonitrile butadiene styrene (ABS)

Guidance for specification option:

Tacker panel.

Shape

Rectangle

Length

1220 mm

Width

820 mm

Height

20 mm

Warranty description

Two year

Guidance for specification option:

Electrical and mechanical products.

50 year

Guidance for specification option:

Pipes.

Manufacturer guidance

Consult manufacturer for full details.

Uniclass

Ss_60_40_92_94 Underfloor low-temperature hot water heating systemsPrimary

CAWS

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Specification data - Underfloor low-temperature hot water heating systems

System performance

Guidance for specification option:

Insert requirements.

Heat source

Low-temperature hot water heating system.

Guidance for specification option:

Specify details separately.

Pumps

Beneath Heat underfloor heating pump pack.

Beneath Heat single area pump pack.

Manufacturer guidance

Consult manufacturer for details.

Pipework

-

Distribution

Guidance for specification option:

Insert requirements.

Underfloor

16 mm PERT pipes and fittings.

16 mm MLCP pipes and fittings.

Manufacturer guidance

Installation tools available, including pipe decoilers, pipe cutters and pipe calibrators.

100 metres will cover approx. 20 m², 200 metres approx. 30 m² and 240 meters approx. 40 m².

Jointing materials

Guidance for specification option:

Insert requirements.

Insulation

Edge insulation and insulation panels.

Guidance for specification option:

For use with traditional sand & cement screed.

Edge insulation and insulation panels with polythene sheeting.

Guidance for specification option:

For use with liquid screed.

Manufacturer guidance

Consult manufacturer for details.

  • Edge insulation to be fitted around the perimeter of the heated room, providing a barrier against heat loss and expansion. Standard, apron and apron/adhesive options available
  • Insulation panels are laid beneath the pipes, covering the complete floor area.

Pipe accessories

None.

Pipe conduit.

Pipe supports

Channel supports - castellated tacker panels (pipes at 150 mm centres).

Channel supports - castellated tacker panels (pipes at 200 mm centres).

Manufacturer guidance

  • Material: ABS plastic (recyclable).
  • Panel size (l x w x t): 1220 x 820 x 20 mm.
  • Groove separation: 50 mm.
  • Panel weight: 1.77 kg.


Castellations allow pipe placement at 50 mm intervals; standard pipe placement options of 150 and 200 mm offered.

Valves

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Options include manifolds, blend valves, heat pump valves and return elbows.

Water treatment

Guidance for specification option:

Consult manufacturer for options and insert requirements or omit.

Accessories

230 V Saswell dial thermostat.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

230 V Saswell programable thermostat.

230 V Saswell WiFi thermostat.

Wireless Saswell programable thermostat.

Wireless Saswell WiFi thermostat.

Saswell WiFi gateway

Controls

-

Controllers

Saswell 230 V two wire actuator.

230 V wiring centre.

230 V wireless wiring centre.

Control valves

Saswell two-port motorised valve.

Sensors

Not required.

Saswell floor/ air sensor.

Single area pump pack adaptors.

Guidance for specification option:

Not for use with single area pump pack.

Floor components

Screed.

Floor covering

Guidance for specification option:

Insert requirements. Specify separately if required.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Tacker panel is recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

Literature

Underfloor Heating Product and Technical Guide

Underfloor Heating Product and Technical Guide

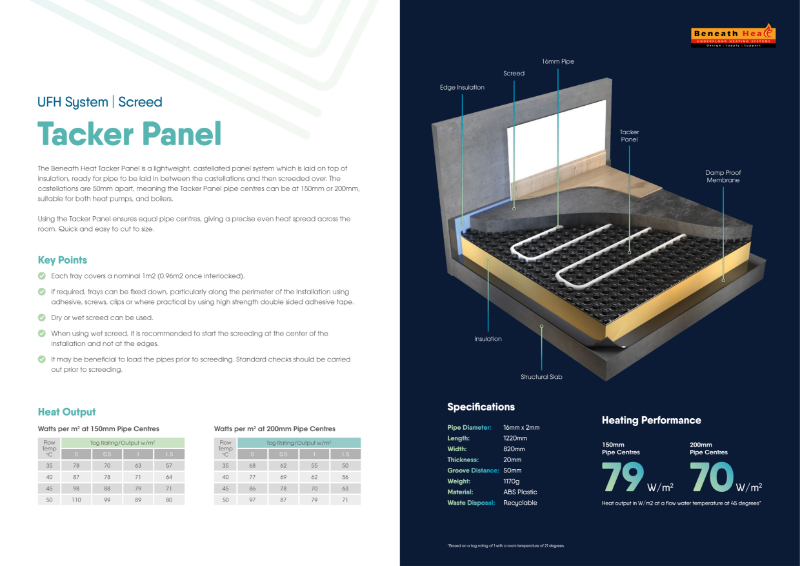

Beneath Heat Tacker Panel UFH System
