Britclips® - Vertical Flange Clip
Verified by manufacturer 18 days ago
VF2
VF2
Clips for fixing to vertical flanges, 1–7 mm.
Application

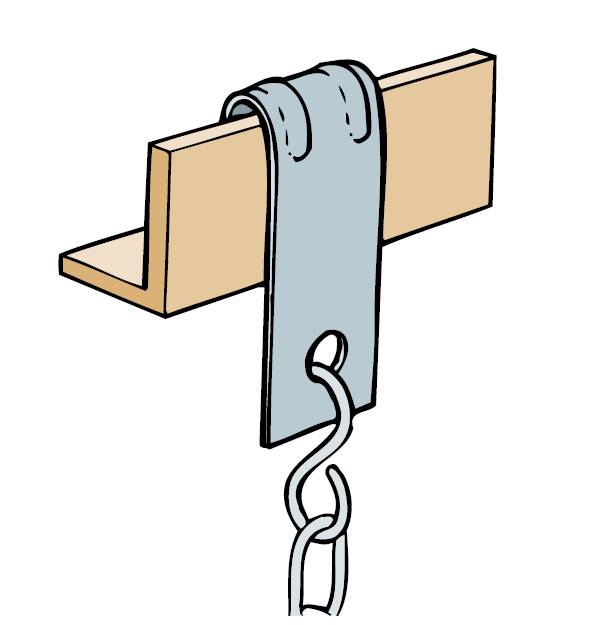

For fixing to vertical flanges. For use with static loads only.
Description
Clips for fixing to vertical flanges, 1–7 mm.
Features and benefits:
- Includes fixing hole, 6.5 mm diameter, vertical, to fix S-hook, bolt/nut, etc.
- Manufactured from spring steel (type CS70).
- Surface treatment: Delta-Tone 9000 (480 hours).
- Available in packs of 25 or 100.
General information
Color | Silver |
Finish | Manufacturer guidanceSurface treatment: Delta-Tone 9000 (480 hours). |
Material | Steel Guidance for specification option: Spring steel, type CS70. |
Width | 19 mm |
Uniclass |
Specification data - Beam clips
Clip type | Vertical flange clip, suitable for S-hook, bolt/nut etc. |
Material | Spring steel, type CS70. |
Finish | Surface treatment: Delta-Tone 9000.Guidance for specification option: 480 hours. |
Load capacity | 720 N. |
Flange size | 5–7 mm.Guidance for specification option: Height: 39 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
