BT2860I-231WSA - Push/Turn Gas Valve
Verified by manufacturer 1 month ago

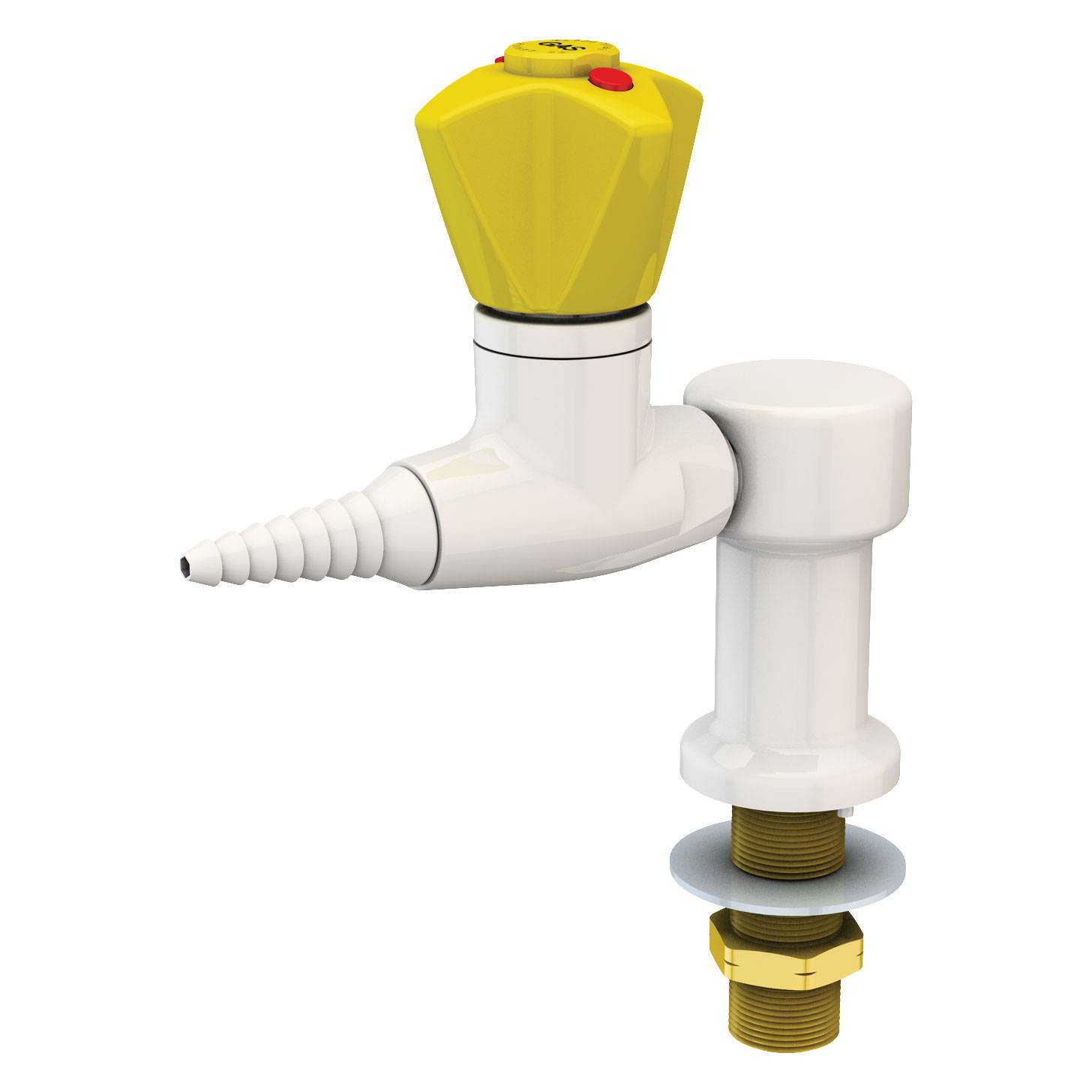

Push/turn gas valve, bench mounted.
Application
Control of burning or combustible gases such as natural gas, propane and bottled gas. Valve is certified for natural gas service by CSA International.
Description
Push/turn gas valve for burning gases. Powder-coated metal hooded handle with pop-up indicators, colour coded per EN standard. Furnished with white powder-coated finish as standard. Also available in satin chrome plated finish with clear powder coating (SCC) and satin nickel plated finish with clear powder coating (SNC).
General information
Color | White Other |
Finish | Powder-coated Other |
Material | Brass |
Shape | Other |
Height | 145 mm |
Warranty description | One year |
Uniclass | |
CAWS | N10/130 Laboratory furniture |
Specification data - Laboratory gas taps
Mounting | Bench. |
Number of outlets | One. |
Nozzles | Removable. |
Operation | Handwheel. |
Colour coding | To BS EN 13792. |
Inlet connection | G1/2". |
Colour/ Finish | White powder-coated. Satin chrome plated (SCC). Satin nickel plated (SNC). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
BT2860I-231WSA Drawing
