Application

Flow regulation of all laboratory gases, including special gases such as nitrogen, oxygen, helium and hydrogen. When ordered, valve may be specially cleaned, lubricated and packaged for pure gas service. Valve is certified for natural gas service by CSA International.

Description

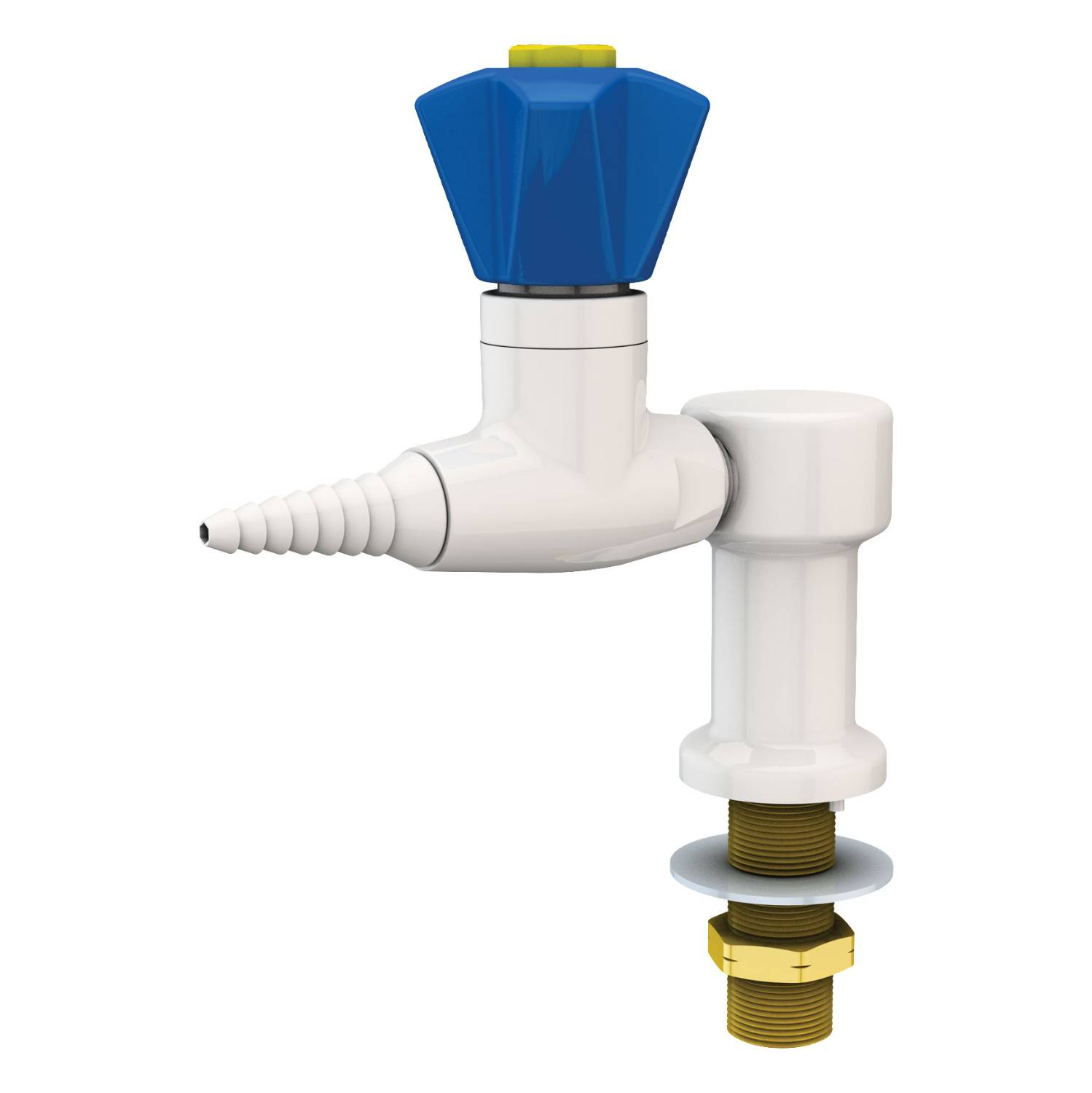

Needle valve for flow regulation of all laboratory gases. Furnished with white powder-coated finish as standard. Also available in satin chrome plated finish with clear powder coating (SCC) and satin nickel plated finish with clear powder coating (SNC).

General information

Color

White

Other

Finish

Powder-coated

Other

Material

Brass

Stainless steel

Shape

Other

Height

145 mm

Warranty description

One year

Uniclass

Pr_65_54_33_45 Laboratory gas tapsPrimary

CAWS

N10/130 Laboratory furniture

Specification data - Laboratory gas taps

Mounting

Bench.

Number of outlets

One.

Nozzles

Removable.

Operation

Handwheel.

Colour coding

To BS EN 13792.

Inlet connection

G1/2".

Colour/ Finish

White powder-coated.

Satin chrome plated (SCC).

Satin nickel plated (SNC).

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

BIM objects

Platform Compatible Version
Revit
-

1

Literature

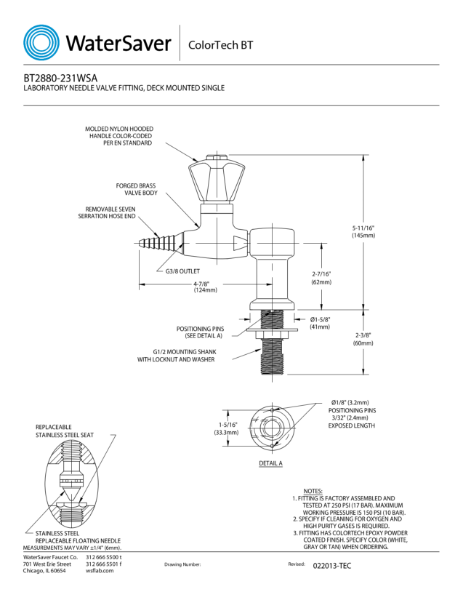

BT2880-231WSA Drawing

BT2880-231WSA Drawing
