BT2870-231WSA - Fine Control Needle Valve
Verified by manufacturer 1 month ago

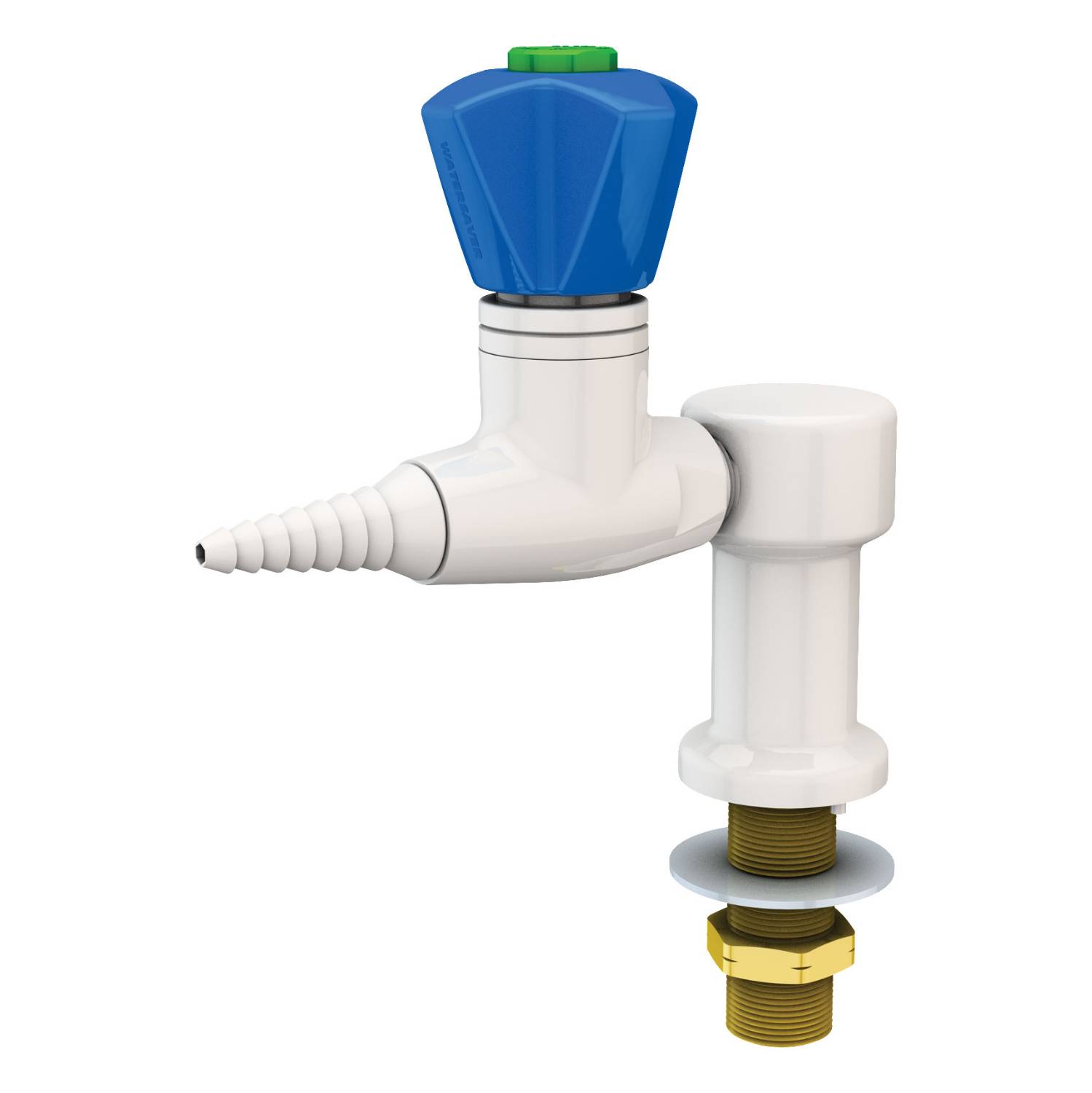

Fine control needle valve, bench mounted.
Application
Precise flow regulation of laboratory gases. Suitable for special gases such as nitrogen, oxygen, helium and hydrogen. Valve is specially cleaned, lubricated and packaged for use with high purity gases.
Description
Fine control needle valve for precise flow regulation of laboratory gases. Furnished with white powder-coated finish as standard. Also available in satin chrome plated finish with clear powder coating (SCC) and satin nickel plated finish with clear powder coating (SNC).
General information
Color | White Other |
Finish | Powder-coated Other |
Material | Brass Stainless steel |
Shape | Other |
Height | 145 mm |
Warranty description | One year |
Uniclass | |
CAWS | N10/130 Laboratory furniture |
Specification data - Laboratory gas taps
Mounting | Bench. |
Number of outlets | One. |
Nozzles | Removable. |
Operation | Handwheel. |
Colour coding | To BS EN 13792. |
Inlet connection | G1/2". |
Colour/ Finish | White powder-coated. Satin chrome plated (SCC). Satin nickel plated (SNC). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

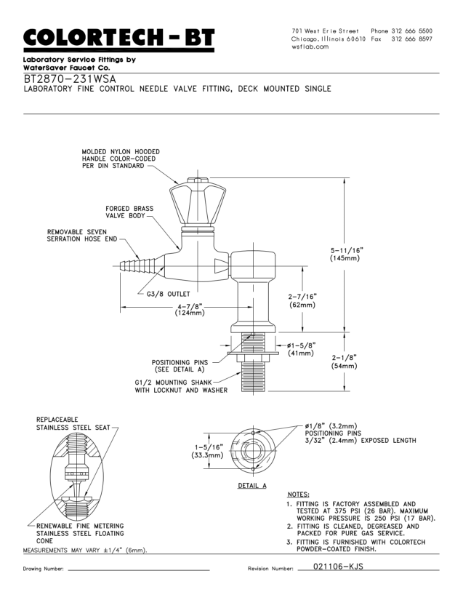

BT2870-231WSA Drawing
