Cavity Tray Channel - Insulation Accessory

Name: Cavity Tray Channel - Insulation Accessory
Brand: Unilin Insulation UK Limited
SKU: jdfDu9EEVbzpGwkAEku4qu

Verified by manufacturer 1 month ago

Third party certifications:

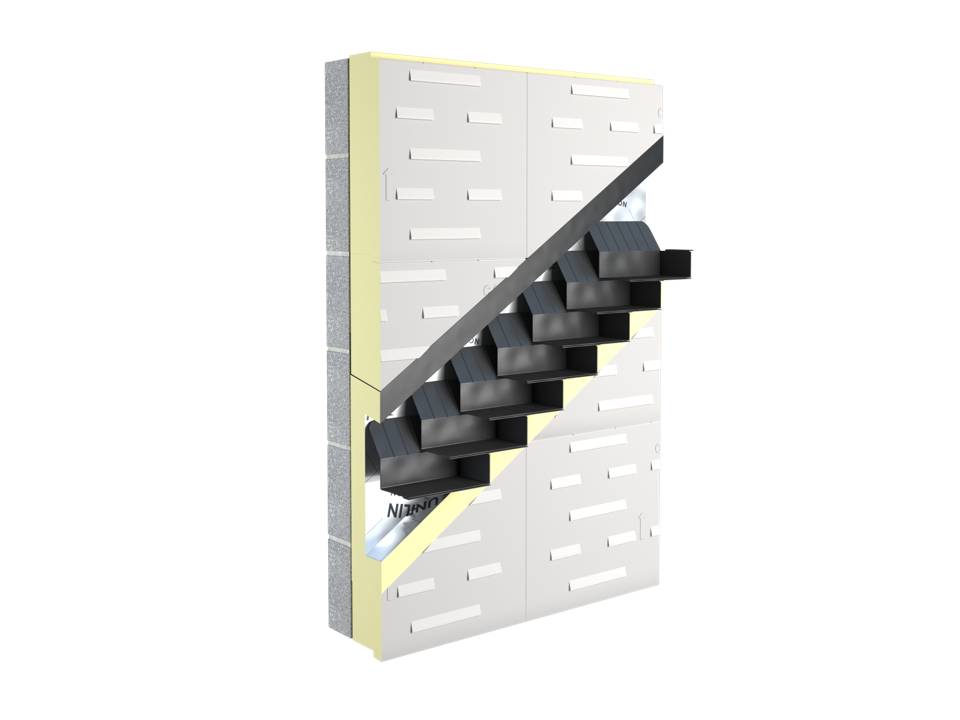

An insulated channel to allow for insulation continuity around stepped cavity trays at gable junctions.

Jump to:

Application

An insulated channel to allow for insulation continuity around stepped cavity trays at gable junctions.

An insulated channel to allow for insulation continuity around stepped cavity trays at gable junctions.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	F30/12 Partial fill cavity insulation F30/155 Partial fill cavity insulation

Standard	To BS EN 13165.
Third-party certification	BBA Certificate No. 23/7059.
Thermal conductivity (maximum)	0.021 W/mk.
Compressive strength at 10% deformation	>100 kPa.
Thickness (nominal)	100 mm. 125 mm. 150 mm.
Density	32 kg/m³.
Recycled content	0%.
Facing	Low emissivity composite foil.
Edges	Square.

Contains Red List materials	No
Country of material origin	United Kingdom Guidance for specification option: UK and Ireland.
Country of product manufacture	United Kingdom Guidance for specification option: UK and Ireland.
Material	Polyisocyanurate (PIR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	10.3 kg CO₂ eq/m²
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
