CavityTherm Top Panel - Insulation Accessory

Name: CavityTherm Top Panel - Insulation Accessory
Brand: Unilin Insulation UK Limited
SKU: 9AkgR1sAsS6p98wrqDFn1S

Verified by manufacturer 2 months ago

Third party certifications:

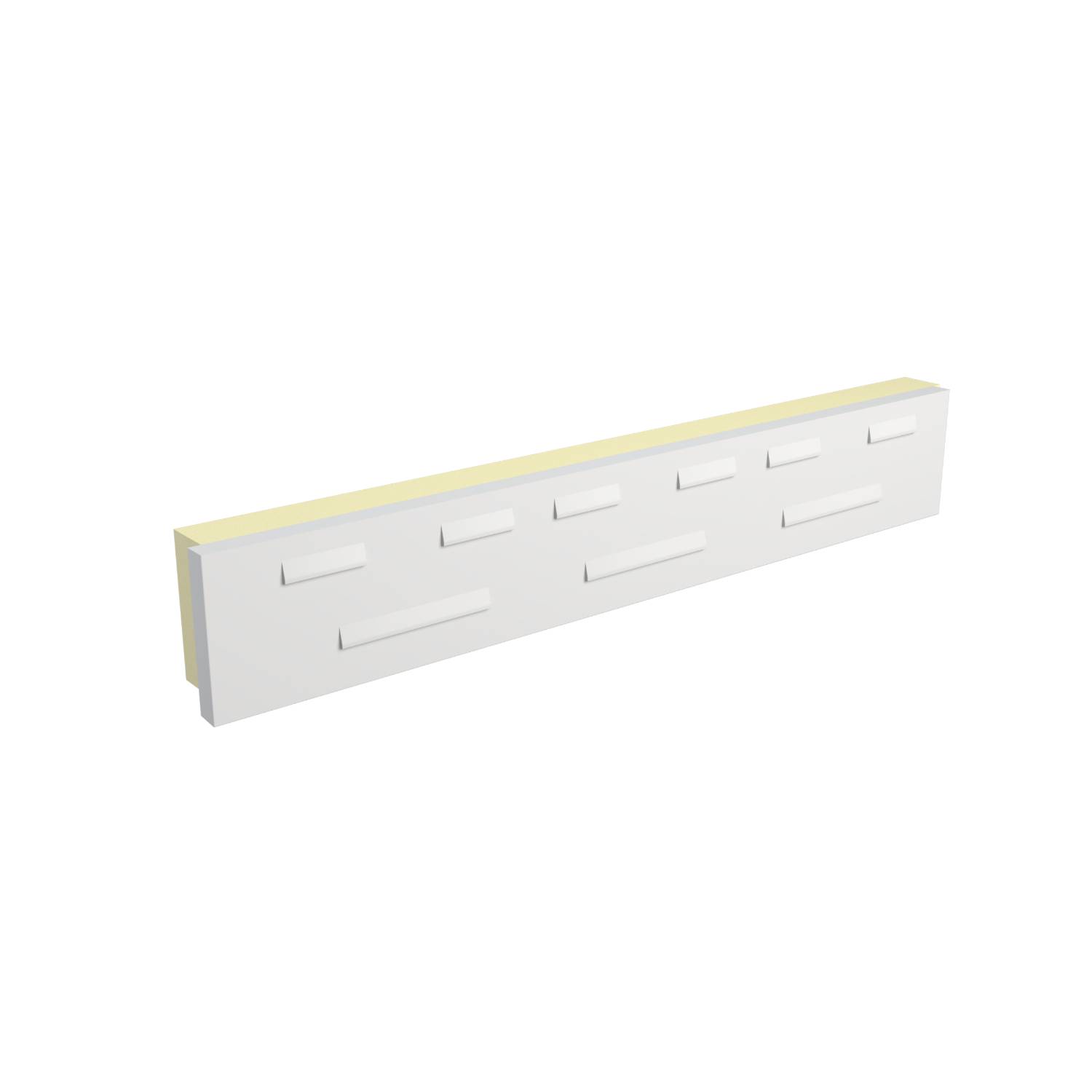

A CavityTherm half-board.

Jump to:

Application

For full fill cavity wall applications.

A CavityTherm half-board that is used to finish wall insulation heights when a full board is not required, reducing cost and wastage on site.

Composite foil-facing on both sides, bonded to profiled high impact polystyrene (HIP) on the exposed face.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	F30/10 Full fill cavity insulation F30/150 Full fill cavity insulation

Standard	To BS EN 13165.
Third-party certification	BBA Certificate No 23/7059.
Thermal conductivity (maximum)	0.021 W/m·K.
Compressive strength at 10% deformation	100 kPa.
Cross section	Rectangular with rebated engineered joint.
Thickness (nominal)	100 mm. 125 mm. 150 mm. Manufacturer guidance The nominal thickness includes the 5 mm profiled facing.
Face size (length x width)	1200 x 225 mm.
Density	32 kg/m³.
Recycled content	0%.
Facing	Low emissivity composite foil.
Edges	Angled. Rebated.

Country of material origin	United Kingdom Guidance for specification option: UK and Ireland.
Country of product manufacture	United Kingdom Guidance for specification option: UK and Ireland.
Material	Polyisocyanurate (PIR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	10.3 kg CO₂ eq/m²
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
