CavityTherm CT/PIR - Full Fill Cavity Wall Insulation

Name: CavityTherm CT/PIR - Full Fill Cavity Wall Insulation
Brand: Unilin Insulation UK Limited
SKU: 65UamrVMQge3AAc5WBPE99

Verified by manufacturer 19 days ago

100 mm

Unilin Insulation UK Limited

Third party certifications:

EPD
Certificate type
BBA Agrément Certificate
Certificate type

High performance composite board of enhanced PIR with a lambda value of 0.021 W/m·K, for full fill cavity wall applications.

Jump to:

BOS

+44 (0)371 2221033 Website

Application

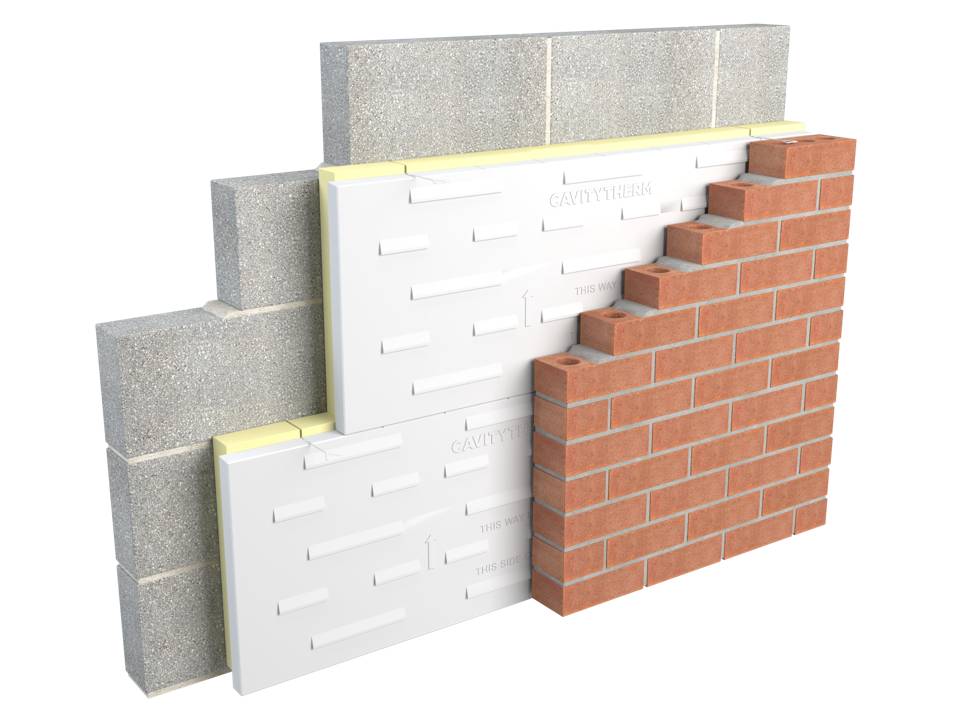

For full-fill masonry cavity wall applications.

Description

High performance composite board of enhanced polyisocyanurate (PIR) with a lambda value of 0.021 W/m·K, for full fill cavity wall applications.

CavityTherm has gas tight facings with one face bonded to a profiled high-impact polystyrene (HIPS) skin during manufacture to provide a drainage plane.

General information

Color	Yellow
Finish	Foil Guidance for specification option: Composite foil-facing on both sides, bonded to profiled high impact polystyrene (HIP) on the exposed face.
Material	Polyisocyanurate (PIR)
Shape	Rectangle
Length	1200 mm
Width	100 mm 110 mm 125 mm 150 mm
Height	450 mm

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	F30/12 Partial fill cavity insulation F30/150 Full fill cavity insulation

Specification data - Polyisocyanurate (PIR) foam boards

Standard	To BS EN 13165.
Third-party certification	BBA Certificate No. 23/7059.
Fire performance	Euroclass F.
Thermal conductivity (maximum)	0.021 W/m·K.
Compressive strength at 10% deformation	100 kPa.
Cross section	Rectangular with rebated engineered joint.
Thickness (nominal)	100 mm. Manufacturer guidance The nominal thickness includes the 5 mm profiled facing.
Face size (length x width)	1200 x 450 mm.
Density	32 kg/m³.
Recycled content	0%.
Facing	Low emissivity composite foil.
Edges	Angled. Rebated.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom Guidance for specification option: UK and Ireland.
Country of product manufacture	United Kingdom Guidance for specification option: UK and Ireland.
Material	Polyisocyanurate (PIR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	10.30 kg CO₂ eq/m² Certified
Recyclability	0
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
