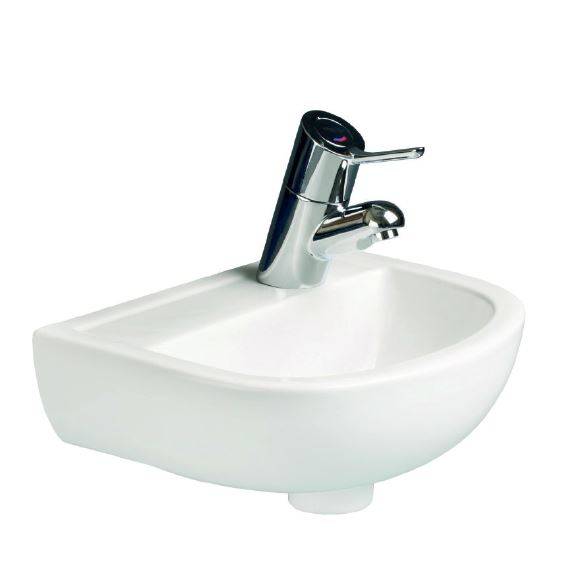

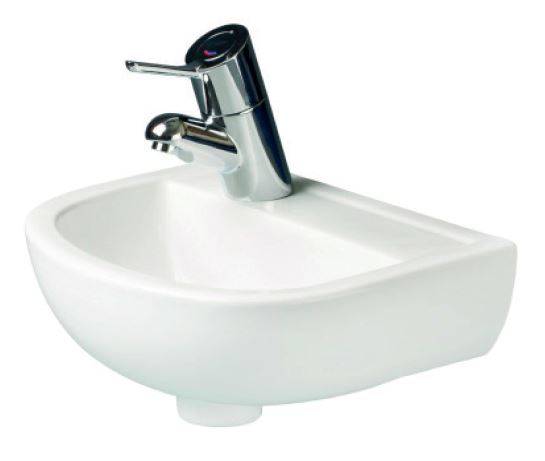

Chartham Wall Hung 380 Washbasin
Verified by manufacturer 5 months ago
CHWB101
CHWB101
380 mm wall hung washbasins with left and right hand taphole options, no overflow or chainstay, ideal for use where space is tight and is DOC M and HBN compliant.
Application
Suitable for all sectors, ideal for use in small spaces.
Suitable in healthcare environments for hand rinsing only (LB G S).
Typical room applications:
- Ensuites
- Bathrooms
Description
SanCeram Chartham wall hung 380mm basins with left and right hand taphole options.
Features and benefits:
- No overflow.
- No chain stay.
- Bottom outlet for ease of maintenance.
- Includes fisher fixings for installation.
- HBN 00-10 Part C compliant (ref: LB G S)
- HTM compliant.
- DOC M compliant.
- Entry level range suitable for all sectors.
General information
Color | White Guidance for specification option: Alpine white. |
Finish | Smooth Guidance for specification option: Alpine white. |
Material | Vitreous china Guidance for specification option: To BS 3402. |
Length | 380 mm |
Width | 300 mm |
Height | 175 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Form | Wall-hung wash basin. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Size | 380 x 300 x 175 mm.Guidance for specification option: L x B x H (bowl depth). |
Water supply, overflow and waste holes | |
Water supply | Left hand taphole. |
Overflow | None. |
Waste | Bottom waste outlet, no chainstay hole. |
Integral accessories | Basin fixings.Guidance for specification option:
|
Weight | 7 kg. |
Waste options | TSWC102. Guidance for specification option: 1 1/4” strainer waste 80 mm, unslotted. TSWC104. Guidance for specification option: 1/4” swivel waste, unslotted. TSWC108. Guidance for specification option: 1/4” click clack waste, unslotted. |
Trap | A10R. Guidance for specification option: 1/4” resealing plastic bottle trap. TSWC112. Guidance for specification option: 1 1/4” metal bottle trap. TSWC114. Guidance for specification option: 1 1/4” modern metal bottle trap. |
Sustainability data
Material | Vitreous china Guidance for specification option: To BS 3402. |
