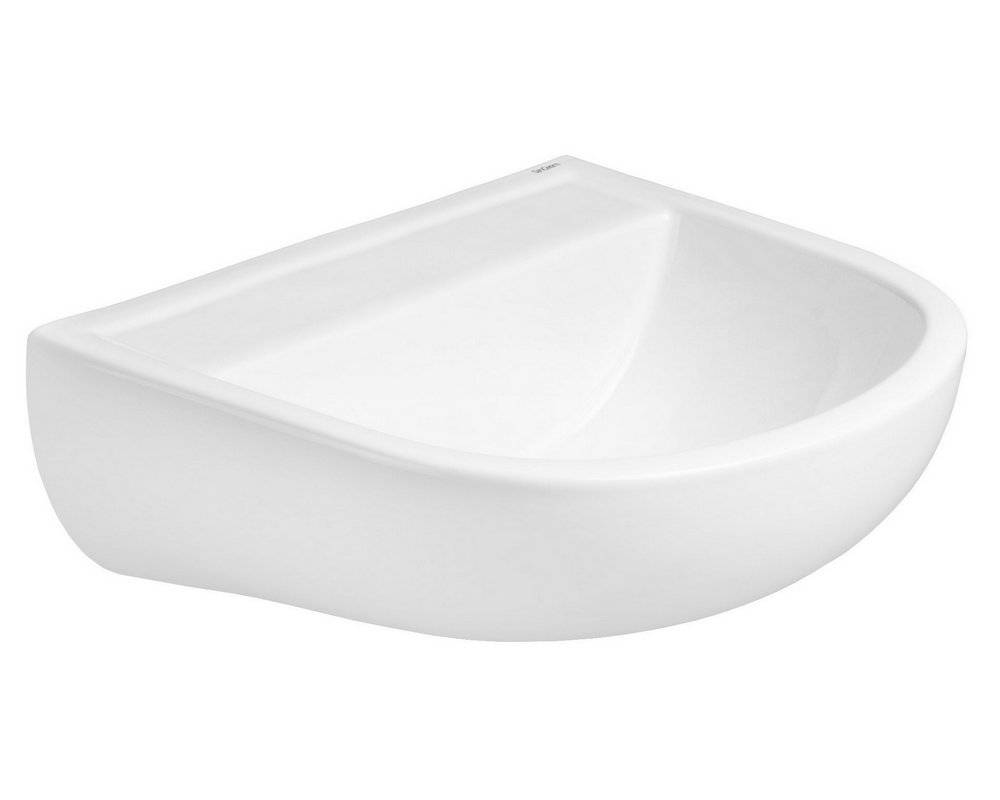

Chartham Wall Hung 500 Clinical Washbasin, Back Outlet
Verified by manufacturer 5 months ago
HBN compliant (ref: LB H M) 500 mm wall hung clinical basin with back outlet.
Application
Suitable for all sectors, in particular clinical and healthcare areas.
Typical room applications:
- 4/6 bed wards
- Single bed wards
- Dirty utility
- Clean utility
- Treatment rooms
- Consulting rooms
Description
Wall hung vitreous china basin with no tap holes, overflow or chain hole.
Features and benefits:
- Part of the Chartham range.
- No tap hole or overflow.
- Back outlet for fully concealed pipework and fixings.
- Easy to clean.
- Manufactured from high grade vitreous china.
- HBN 00-10 Part C compliant, reference: LB H M
- SHTM compliant.
General information
Color | White |
Finish | Smooth |
Material | Vitreous china |

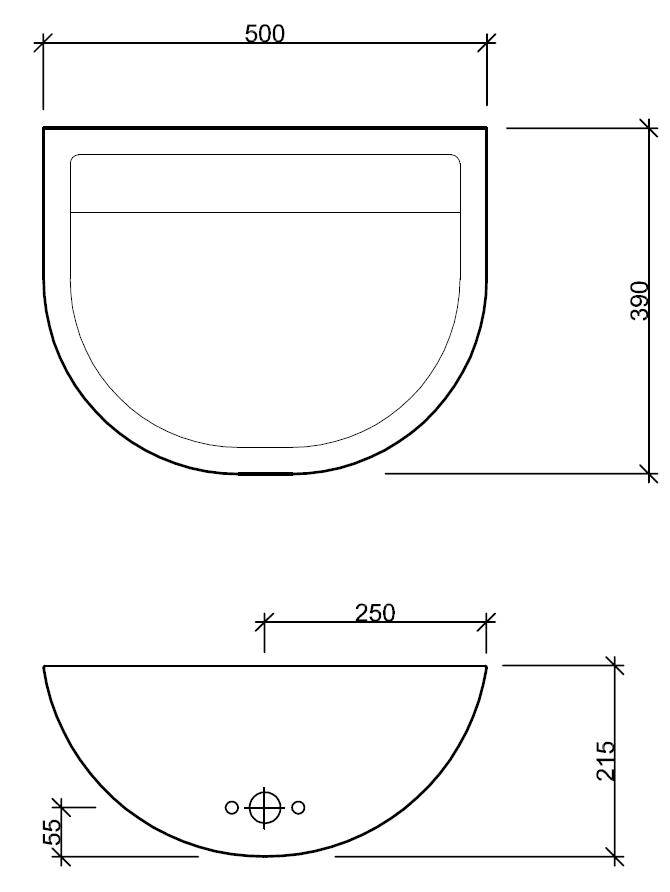

Length | 500 mm |
Width | 390 mm |
Height | 215 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Form | Wall-hung wash basin. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |
Size | 500 x 215 x 390 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | None. |
Waste | TSWC110.Guidance for specification option: Waste adapter and fixings kit. |
Trap | A10R. Guidance for specification option: 1 ¼” resealing plastic bottle trap. |
Weight | 10 kg. |
Sustainability data
Material | Vitreous china |
