Verified by manufacturer 5 months ago

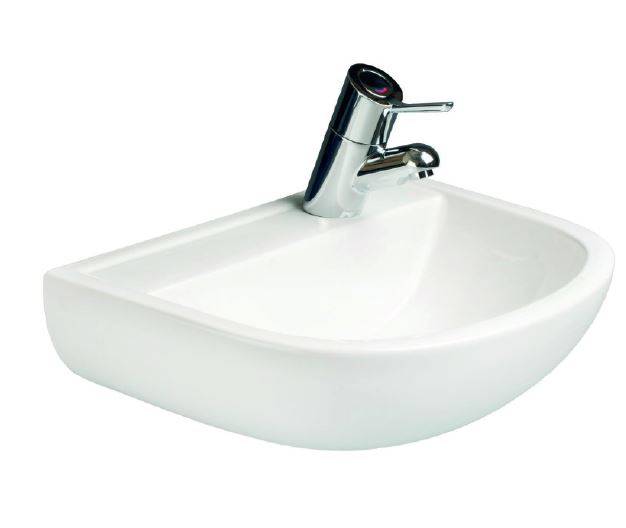

MDWB101 - 420 mm
Wall hung basin with central tap hole.
Suitable for all washroom sectors excluding healthcare.
Wall hung vitreous china basin with central tap hole and overflow.
Features and benefits:
Color | White |
Finish | Smooth |
Material | Vitreous china |
Shape | Rectangle |
Length | 420 mm 525 mm |
Width | 415 mm |
Height | 172 mm Guidance for specification option: for 420mm width 185 mm Guidance for specification option: for 525mm width |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Form | Wall-hung wash basin. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |

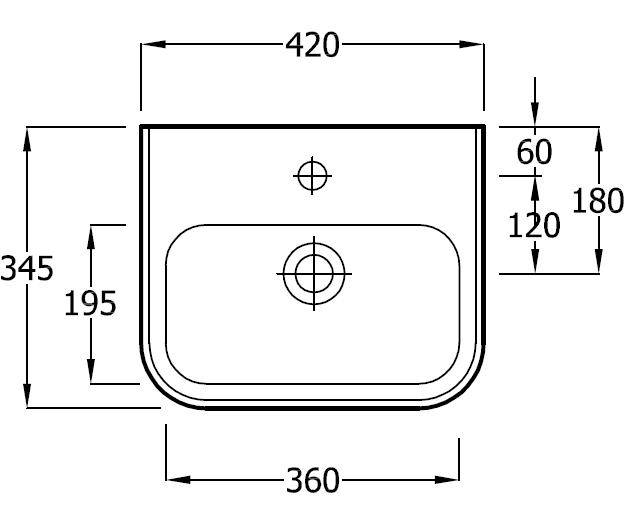

Size | 420 x 360 x 172 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | Rear overflow hole. |
Waste | TSWC101.Guidance for specification option: 1 ¼” strainer waste 80 mm, slotted. TSWC103.Guidance for specification option: 1 ¼” swivel waste, slotted. TSWC105.Guidance for specification option: 1 ¼” plug and chain waste, slotted tail. TSWC107.Guidance for specification option: 1 ¼” click clack waste, slotted. |
Integral accessories | Fischer wall fixings.Guidance for specification option: Supplied with. |
Trap | A10R. Guidance for specification option: 1 1/4” resealing plastic bottle trap. TSWC112. Guidance for specification option: 1 1/4” metal bottle trap. TSWC114. Guidance for specification option: 1 1/4” modern metal bottle trap. |
Weight | 17 kg. |
Accessories | Not required. 0164079. Guidance for specification option: Fixing kit for panel installations. MDWB109. Guidance for specification option: Marden semi pedestal. |
