SCAP150 - Picture Frame

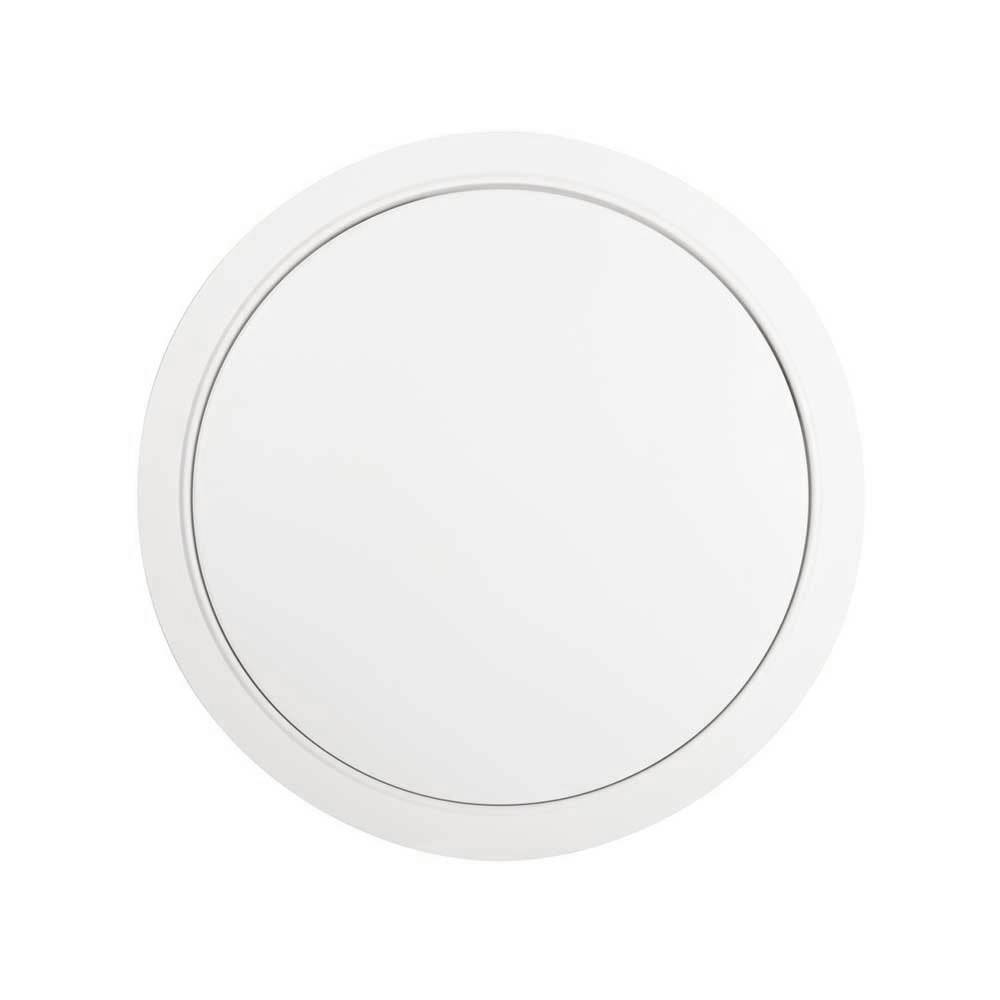

Circular access panel for ceiling use.
Ceiling mounted access panel.
A slender, metal access panel for ceiling use. Where the weight of the removable part of the panel is significant, safety tethers can be fitted to ensure the panel lid cannot be dropped when opening.

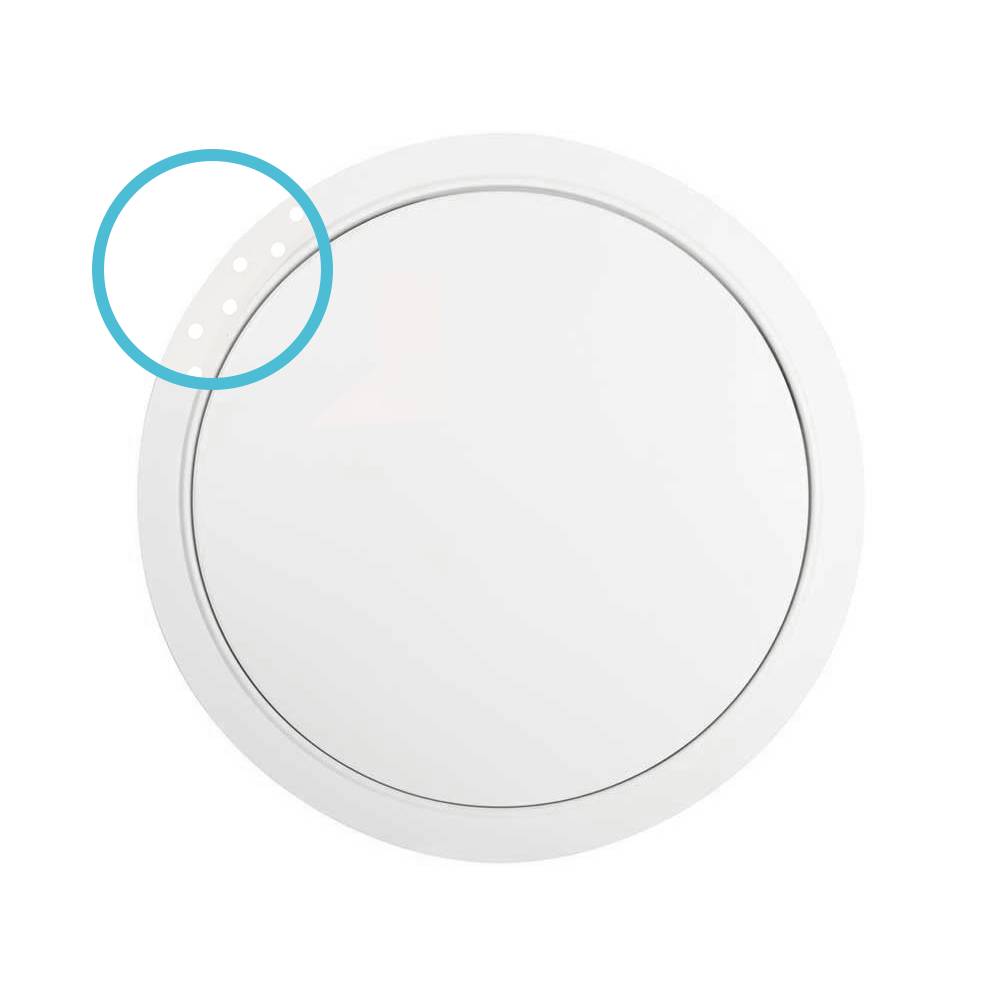

The round access panels provide a flush finish, thanks to a concealed mounting system. The outer frame of the panel has locating pins which support the round metal inner part of the panel. To open the panel, push the inner slightly into the frame and twist anti-clockwise. To re-fit the inner part of the access panel, locate the pins with the inner, offer up and turn clockwise.
Features and benefits:
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Circle |
Length | 150 mm 200 mm 300 mm 450 mm 600 mm |
Width | 150 mm 200 mm 300 mm 450 mm 600 mm |
Height | 25 mm 30 mm |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Position | Ceiling-mounted. |
Size | ∅150 mm. |
Frame | Exposed picture frame type. |
Panel | |
Material | Steel. |
Integral finish | Powder-coated. |
Operation | Push the inner slightly into the frame and twist anti-clockwise.Guidance for specification option: To re-fit the inner part of the access panel locate the pins with the inner, offer up and turn clockwise. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Structural opening size | 155 mm. |
Clear opening | 120 mm. Manufacturer guidanceOnce installed. |
Depth | 25 mm. |
Weight | 0.2 kg. |
Colour | Pure white, RAL 9010. |
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
