Circular Access Panels
Verified by manufacturer 4 months ago

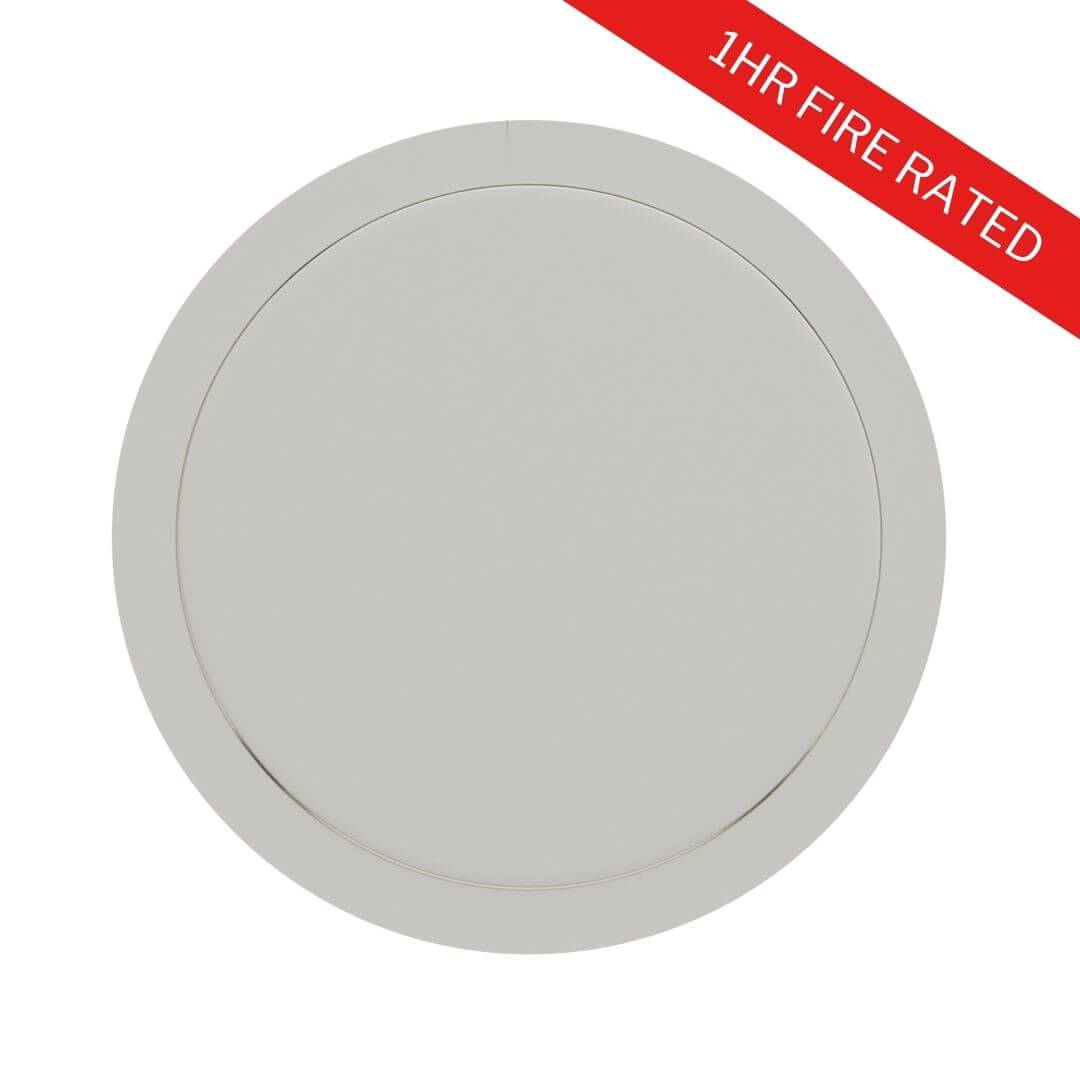

Circular access panel.
Application
Designed to fit into any type of ceiling system allowing easy access into the void.
Description

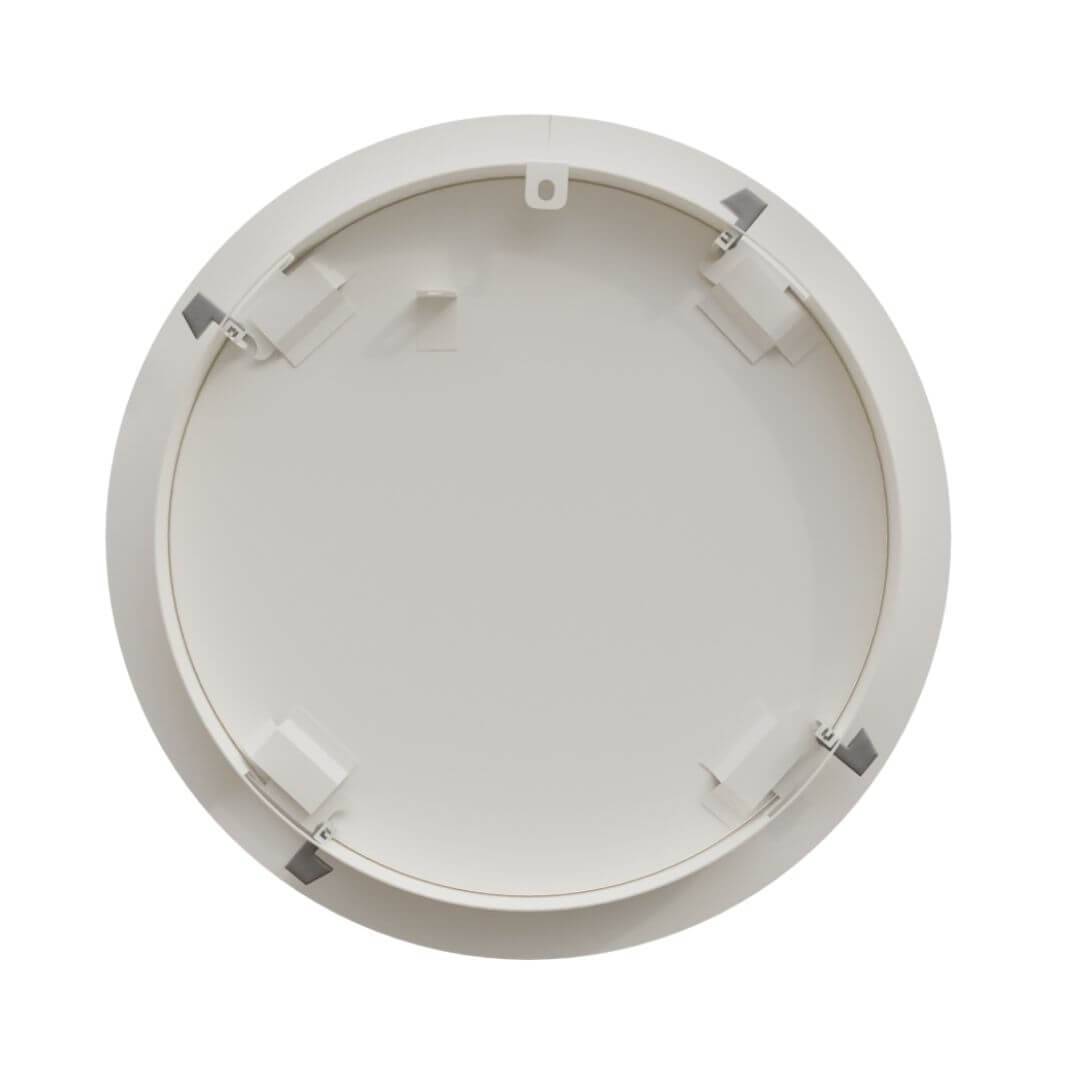

Circular ceiling panels are designed to fit into any type of ceiling system allowing easy access into the void. A 25 mm wide picture frame surround is provided for retofit. This enables the panel to be inserted directly into the clear structural opening and screw-fixed into position through the side of the panel frame.
Manufactured from 1 mm thick Zintec Steel, with a polyester powder coating of matt white RAL 9010 20% gloss. The flush metal door has a three pin locking position and is supplied with a safety chain.
Features and benefits:
- Manufactured from non-combustible materials in accordance with BS 476 Part 4.
- Bespoke enquiries only.
- 25 mm picture frame surround.
- RAL 9010 20% gloss.
General information
Shape | Circle |
Color | White Guidance for specification option: Polyester powder coated in 20% RAL9010 White Semi-gloss. |
Finish | Polyester powder coated |
Material | Steel Guidance for specification option: Zintec Steel. |
Warranty description | 10 year Guidance for specification option: Valid if the access panel is used correctly, not misused and is not modified in any way. |
Size | Manufacturer guidanceAs required. |
Uniclass | |
CAWS | K10/430 Access panels K11/990 Access panels K20/360 Access panels K21/340 Access panels K40/280 Access units K10/25 Ceiling lining on timber K10/15 Lining on timber K10/30 Metal stud K10/50 Suspended ceiling system on metal framing K10/45 Wall lining system (adhesive) K10/35 Wall lining system (metal framing) K10/41 Wall lining system (metal furrings) K10/55 Encasement system (metal framing) K10/57 Encasement on timber framing |
Specification data - Access panels
Size | Manufacturer guidanceAs required. |
Frame | Exposed picture frame type. |
Panel | |
Material | Zintec Steel. |
Integral finish | Polyester powder coated.Guidance for specification option: Powder coated in 20% RAL9010 White Semi-gloss. |
Latch or lock type | Key lock.Tamper proof lock.Waterproof quarter turn.Slotted cam.Three-way.Touch catch.Heavy duty touch catch.Budget Lock.Pull Catch. |
Operation | Manaul |
Integral accessories | Safety Chain. |
Nominal height | 600 mm. |
Length | 600 mm. Guidance for specification option: Nominal length. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
