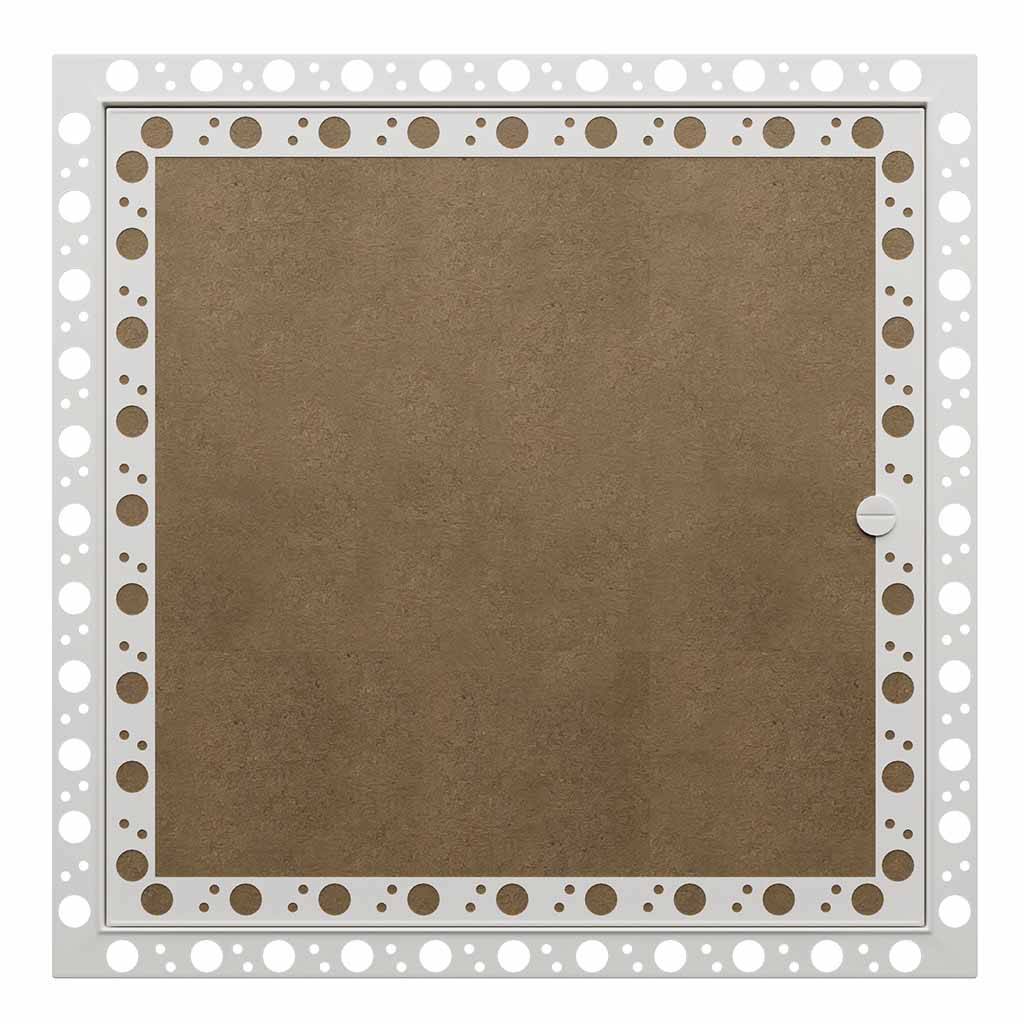

Plasterboard Access Panel with Beaded Frame
Verified by manufacturer 5 months ago
Plasterboard faced access panel.
Application
Suitable for use as standard wall or ceiling access panel.
Description

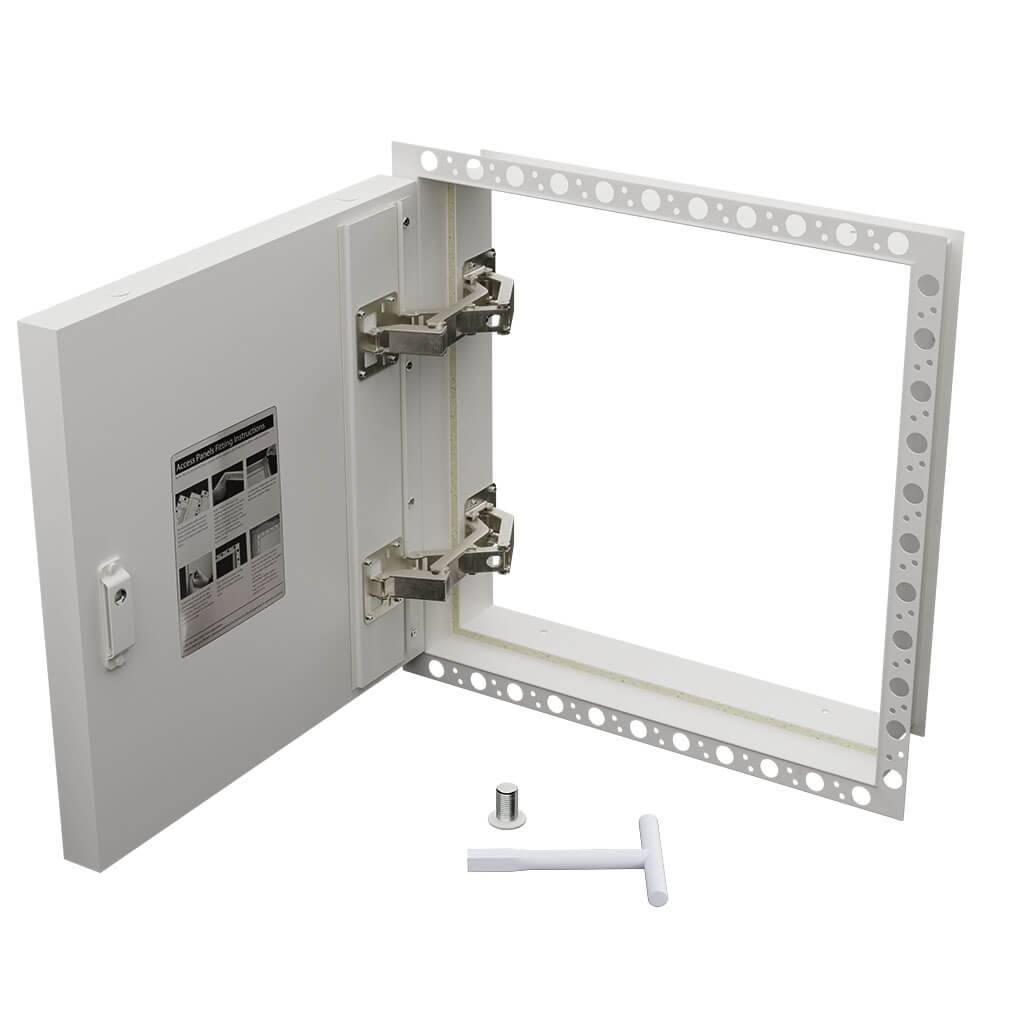

The APD.PB.BF (Access Panels Direct, Plasterboard, Beaded Frame) Access Panel is a non-fire rated Access Panel, featuring a beaded frame and plasterboard door. This particular Access Panel is a dual-purpose Access Panel, this means the panel can be installed in a wall or ceiling. As standard, this panel comes with a budget lock and plastic tee key. Other locking options are available upon request (see locking options). Plasterboard Access Panel is available in small access panel sizes and large access panel sizes, alternatively, we can manufacture a panel to your custom, bespoke size. Please contact us if this is something you require.
Please note: These Access Panels are suitable for inspection purposes only and aren’t suitable for personnel access.
Features and benefits:
- Concealed beaded perforated frame.
- Budget lock, three-way lock & touch catch available.
- Powder coated RAL 9010 20% gloss.
General information
Shape | Square Rectangle |
Color | White Guidance for specification option: Powder Coated RAL 9010 30% Gloss. |
Finish | Polyester powder coated |
Material | Steel Guidance for specification option: Zintec steel, plasterboard faced. |
Warranty description | 10 year Guidance for specification option: Valid if the access panel is used correctly, not misused and is not modified in any way. |
Size | 300 x 300 mm 450 x 450 mm 550 x 550 mm 600 x 600 mm 600 x 900 mm |
Uniclass | |
CAWS | K10/430 Access panels K11/990 Access panels K20/360 Access panels K21/340 Access panels K40/280 Access units K10/25 Ceiling lining on timber K10/15 Lining on timber K10/30 Metal stud K10/50 Suspended ceiling system on metal framing K10/45 Wall lining system (adhesive) K10/35 Wall lining system (metal framing) K10/41 Wall lining system (metal furrings) K10/55 Encasement system (metal framing) K10/57 Encasement on timber framing |
Specification data - Access panels
Frame | Concealed beaded perforated frame. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel with plasterboard faced. |
Integral finish | Powder coated.Guidance for specification option: Powder Coated RAL 9010 30% Gloss. |
Latch or lock type | Budget lock. |
Thickness | 1.2–1.5 mm. Guidance for specification option: 1.2 mm thick door and a 1.5 mm frame. |
OverallDepth | 75 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Similar products from Access Panels Direct

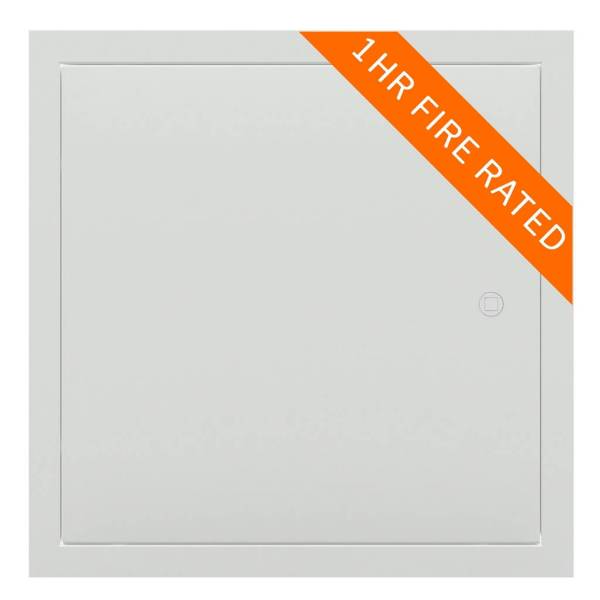

1hr Fire Rated Access Panel - Metal Door Picture Frame
1hr Fire Rated Access Panel - Metal Door with Picture Frame - FlipFix Access Panel - Access Panel
Access Panel - Metal Door with Picture Frame

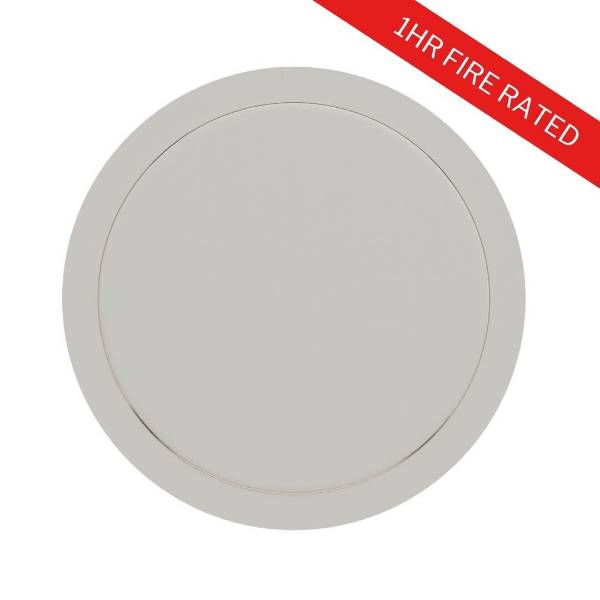

Circular Access Panels

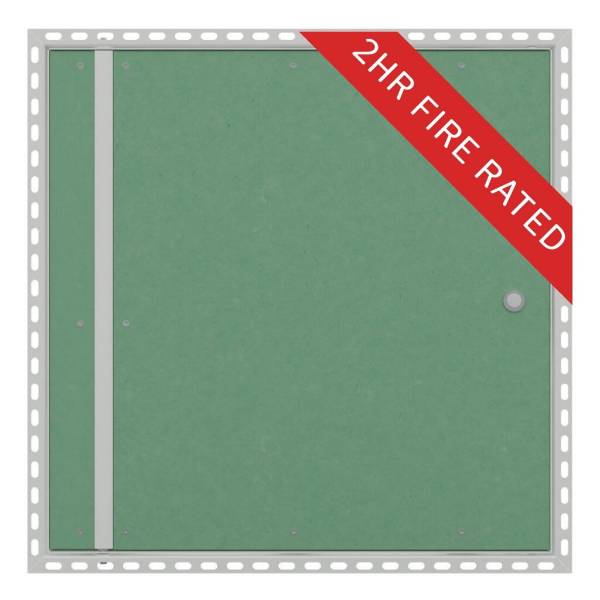

Fire Rated Plasterboard Access Panel with Beaded Frame
Fire Rated Tiled Access Panel

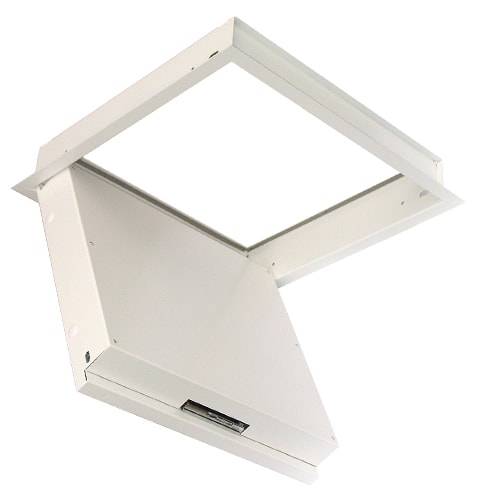

Loft Hatches
Metal Fire Rated Riser Doors

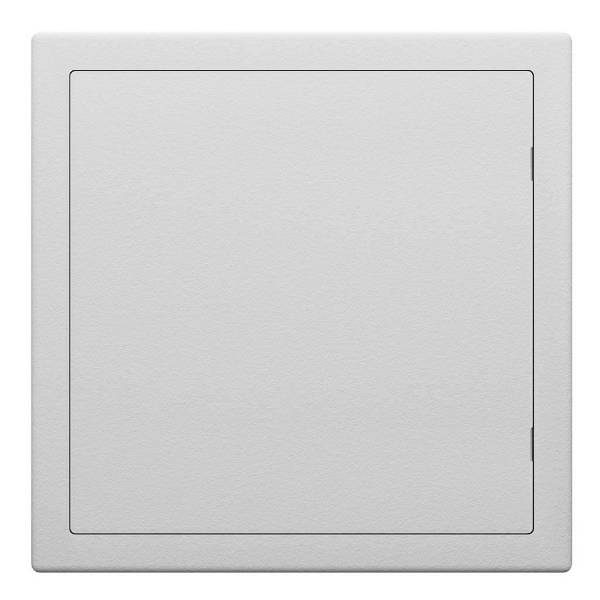

Plastic Access Panels
