Fire Rated Tiled Access Panel

Verified by manufacturer 5 months ago

Access Panels Direct

Tile faced wall access panel.

Jump to:
BOS
01922 313518 Website

Application

Recessed door for ceramic tiles.

Description

APD.CTD/FR60/120

Fire Rated Tile Faced Wall Access Panel with Moisture Board infill and Concealed Beaded Perforated front flange to take a ceramic tile. Fire rated to 1 hour. Supplied with either a Three-way Lock and Plastic Tee Key or Concealed Touch Latches. Other Locking Options available (refer to the Locking Options Guide). Door and Frame Fully Polyester Powder Coated RAL 9010, 20% Gloss.

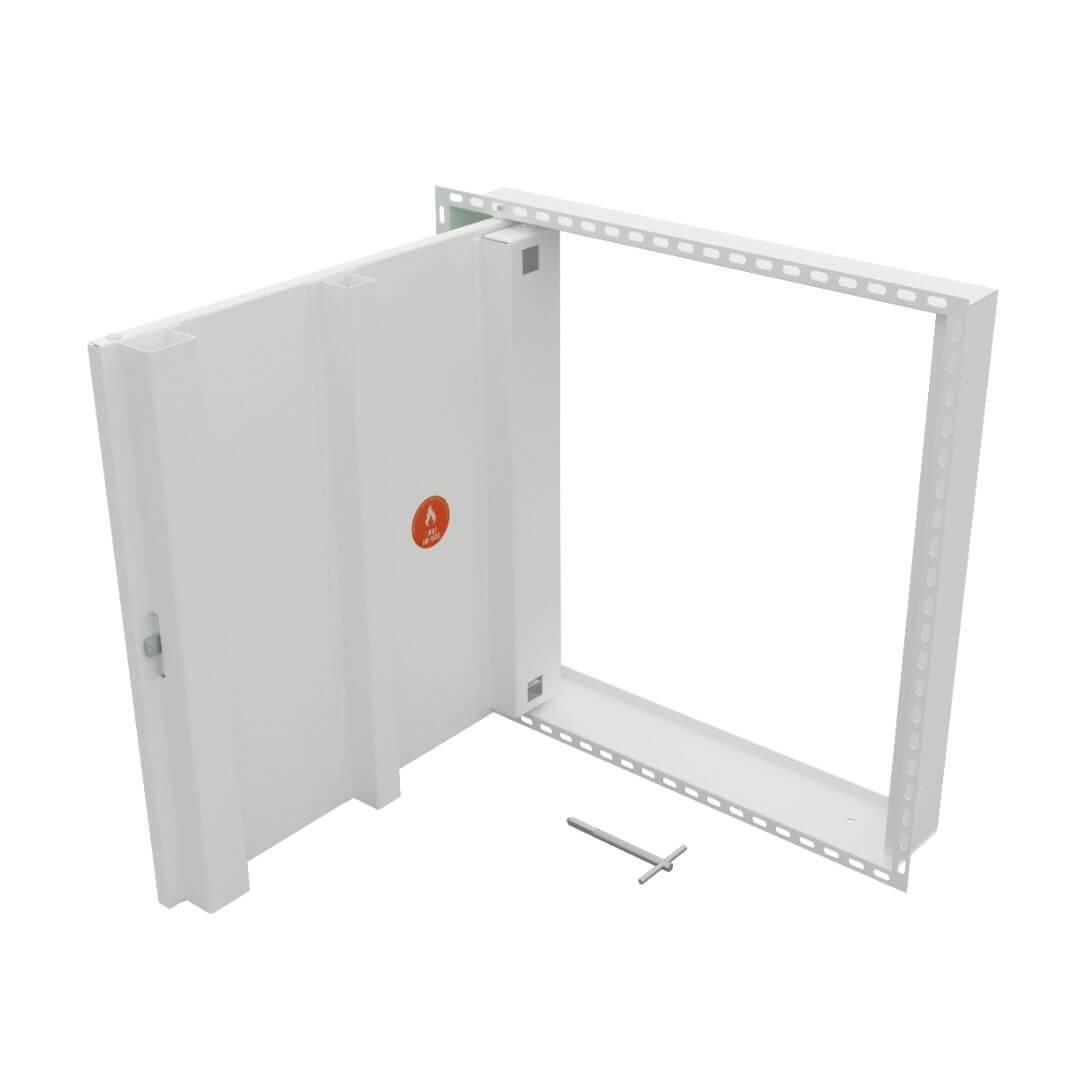

Fire Rated Tile Faced Wall Access Panel – Manufactured to order from 1.5 mm thick Zintec Steel with a front perforated flange (hidden when tiled) and polyester powder coated with a matt white RAL 9010 20% gloss. The recessed door is lined with 12.5 mm moisture resistant plasterboard and comes complete with a sliding pin hinge system. Various locking systems are available including touch catch, three-way locking and quarter turn lock. For more information please contact our technical sales department.


Features and benefits:

  • Resistant.
  • Suitable for areas.


Fire Rating:

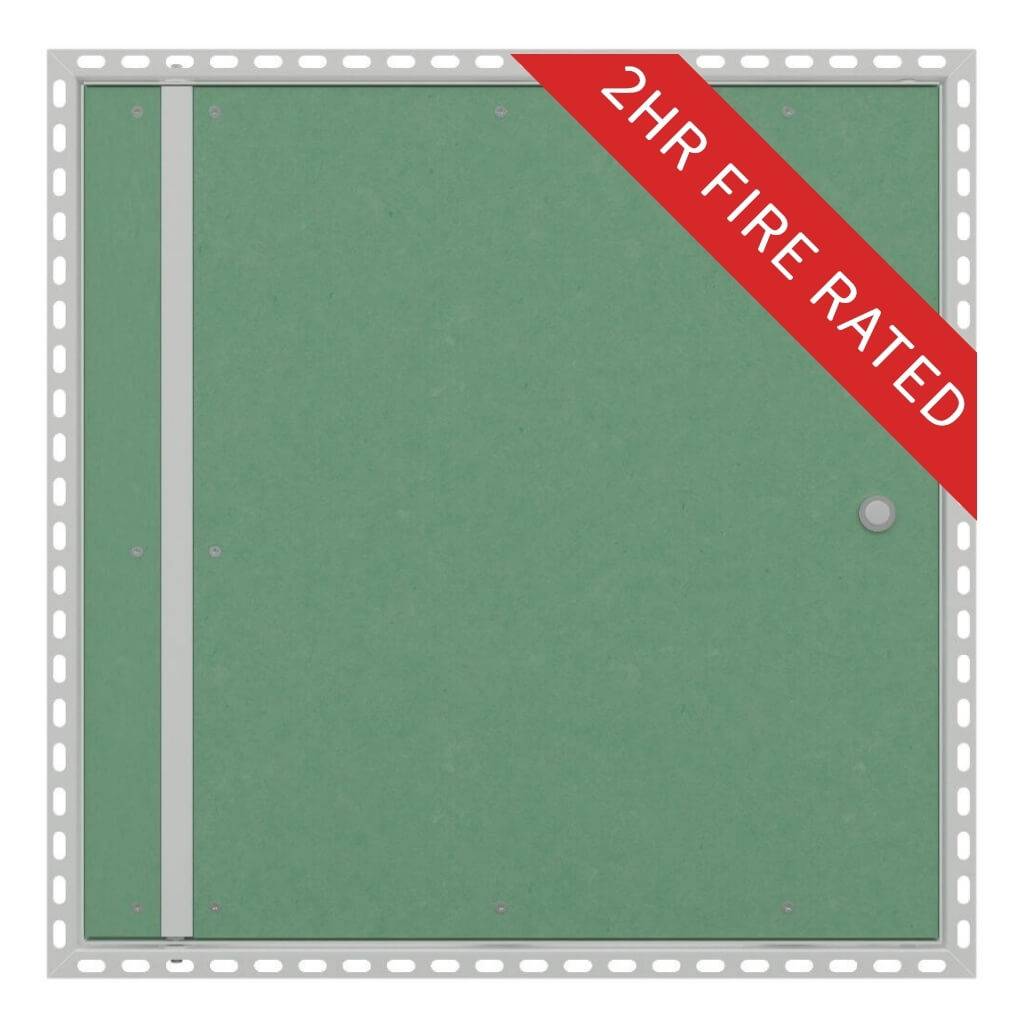

This APD.CTD/FR60 access panel has been independently tested to BS476. Part 22, 1987. A two hour fire rated tile faced wall access panel is available. For more information please contact our technical sales department.

General information

Color

White

Guidance for specification option:

Polyester Powder Coated in matt white RAL 9010 20% gloss.

Finish

Polyester powder coated

Material

Steel

Warranty description

10 year

Guidance for specification option:

Valid if the access panel is used correctly, not misused and is not modified in any way.

Size

-

Manufacturer guidance

Made to order, consult manufacturer for options.

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/57 Encasement on timber framing

K10/41 Wall lining system (metal furrings)

K10/55 Encasement system (metal framing)

K10/35 Wall lining system (metal framing)

K10/45 Wall lining system (adhesive)

K10/50 Suspended ceiling system on metal framing

K10/30 Metal stud

K10/15 Lining on timber

K10/25 Ceiling lining on timber

K10/430 Access panels

Specification data - Access panels

Position

Wall mounted.

Size

-

Manufacturer guidance

Bespoke, consult manufacturer for options.

Frame

Exposed picture frame type.

Panel

-

Material

Steel

Guidance for specification option:

Zintec steel.

Integral finish

Powder coated.

Guidance for specification option:

Polyester Powder Coated in matt white RAL 9010 20% gloss.

Latch or lock type

Budget lock.

Magnetic catch.

Security locks.

Operation

Manual.

Thickness

80 mm.

Guidance for specification option:

Overall frame.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
