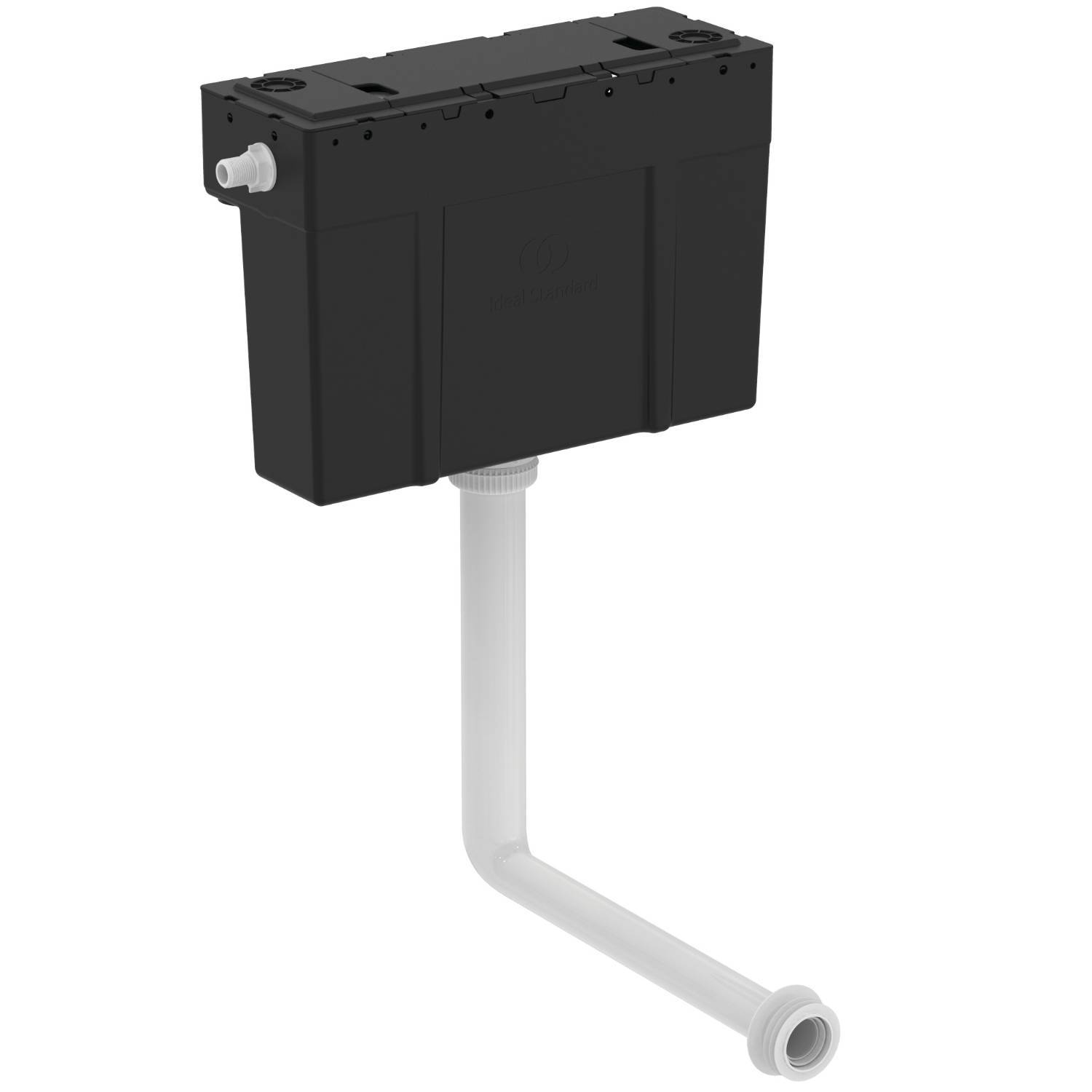

Conceala 3 Concealed Single Flush Pneumatic Cistern, Side Inlet
Verified by manufacturer today
Pneumatic, 6 L single flush concealed cistern, with side inlet, internal overflow and easy adjustable to low water volumes for water saving (4.5 or 4 L).
Application
Suitable for applications in a range of sectors including:
- Education.
- Healthcare.
- Hospitals.
- Sports and leisure.
Description
Pneumatic, 6 L single flush concealed cistern, with side inlet, internal overflow and easy adjustable to low water volumes for water saving (4.5 or 4 L).
Features and benefits:
- Components pre-fitted.
- Pneumatic actuation.
- Flush volume adjustable to 4.5 or 4 L.
- Water saving, delay fill inlet valve.
- Flushplate and button actuator options.
General information
Color | Black Guidance for specification option: Cistern. White Guidance for specification option: Flushbend. |
Finish | Natural |
Material | Plastic |
Shape | Other |
Length | 415 mm |
Width | 150 mm |
Height | 290 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | S332467 |
GTIN/EAN | 5017830556732 |
Specification data - WC cisterns
Classification data | |
Standard | To BS EN 14055, Class 2. |
Form | Concealed. |
Operation | Push-button. |
Materials | |
Body | Plastics. |
Finish and colour | Self-coloured. |
Capacity | 6 L. Guidance for specification option: Easy adjustment on outlet valve to lower water volumes. Set at 6 L, it can be adjusted to 4.5 or 4 L. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Overflow | None (internal). |
Outlet | Bottom outlet. |
Integral accessories | 800 mm length plastic air tube. Guidance for specification option: Supplied as standard. 3 m length plastic air tube. Guidance for specification option: SV316. Optional, can be purchased where remote operation is required. |
Net weight | 2.12 kg. |
Dimensions | 290 x 150 x 415 mm. Manufacturer guidanceHeight x width x length. |
Sustainability data
Material | Plastic |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
Literature
Conceala 3 Product Guide
