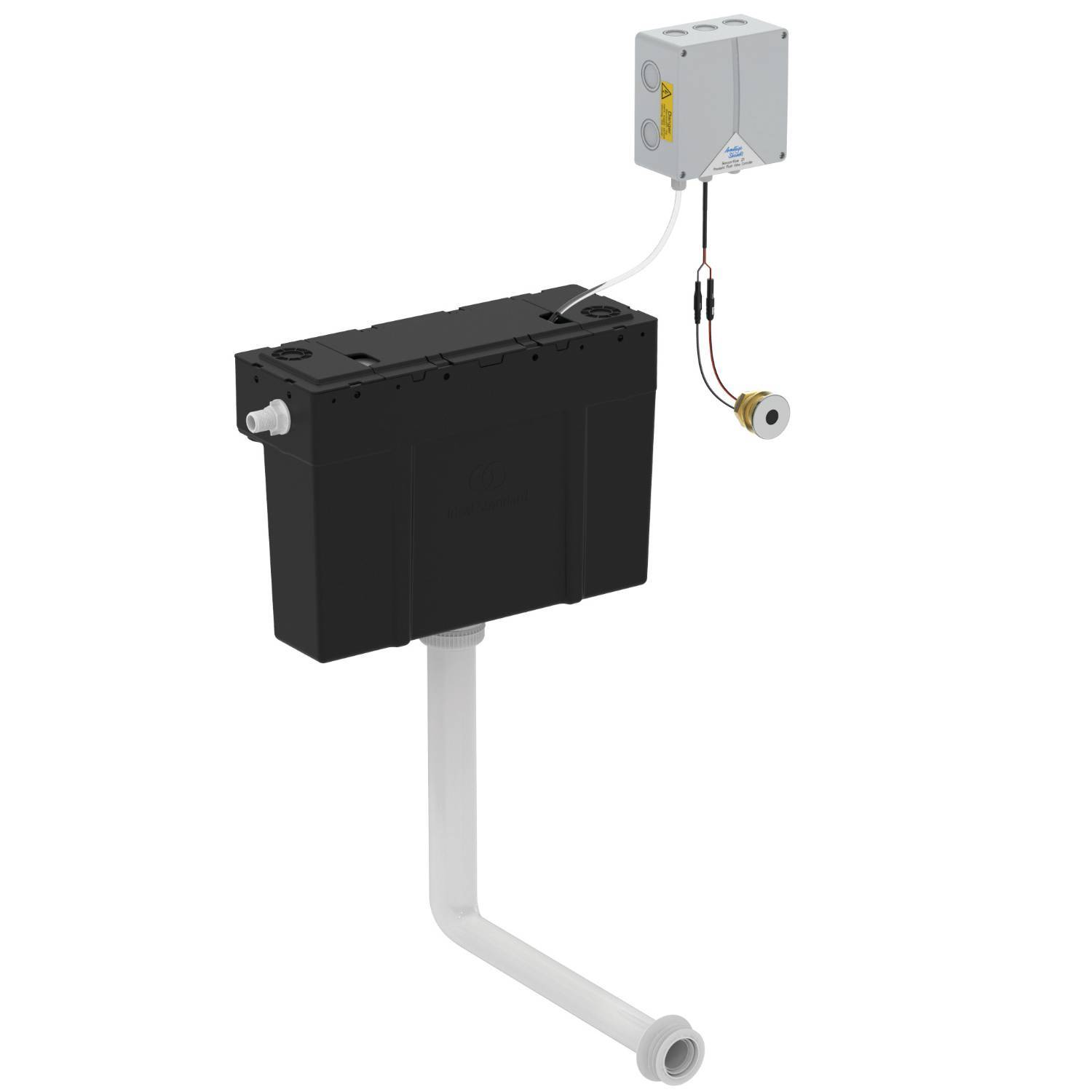

Conceala 3 Sensorflow 21 Single Flush Cistern With Panel Mounted Sensor, Side Inlet
Verified by manufacturer today
6 L single flush concealed cistern with side inlet, internal overflow, panel mounted hands free control sensor and easy adjustable to low water volumes for water saving (4.5 or 4 L).
Application
Suitable for applications in a range of sectors including:
- Education.
- Healthcare.
- Hospitals.
- Hotels.
- Offices.
- Sports and leisure.
- HTM/ HBN.
- Hygiene solutions.
Description
6 L single flush concealed cistern with side inlet, internal overflow, panel mounted hands free control sensor and easy adjustable to low water volumes for water saving (4.5 or 4 L).
Features and benefits:
- Commercial use.
- Components pre-fitted.
- Electronic flushing from mains water.
- Side, inlet options.
- Activated by waving hand.
- Can be adjusted to 4.5 or 4 L for water saving.
General information
Color | Black Guidance for specification option: Cistern. White Guidance for specification option: Flushbend. |
Finish | Natural |
Material | Plastic |
Shape | Other |
Length | 415 mm |
Width | 150 mm |
Height | 290 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | S333367 |
GTIN/EAN | 5017830556824 |
Specification data - WC cisterns
Classification data | |
Standard | To BS EN 14055, Class 2. |
Form | Concealed. |
Operation | Push-button. |
Materials | |
Body | Plastics. |
Finish and colour | Self-coloured. |
Capacity | 6 L. Guidance for specification option: Easy adjustment on outlet valve to lower water volumes. Set at 6 L, it can be adjusted to 4.5 or 4 L. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Overflow | None (internal). |
Outlet | Bottom outlet. |
Integral accessories | Panel mounted sensor. Flushpipe. |
Power supply | 220–240 V. Manufacturer guidanceMust be connected to a continuous permanent power supply of 220–240 V and having its own fuse spur. Consult manufacturer for more details. |
Net weight | 3.15 kg.` |
Dimensions | 290 x 150 x 415 mm. Guidance for specification option: Height x width x projection. |
Sustainability data
Material | Plastic |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
Literature
Conceala 3 Product Guide
