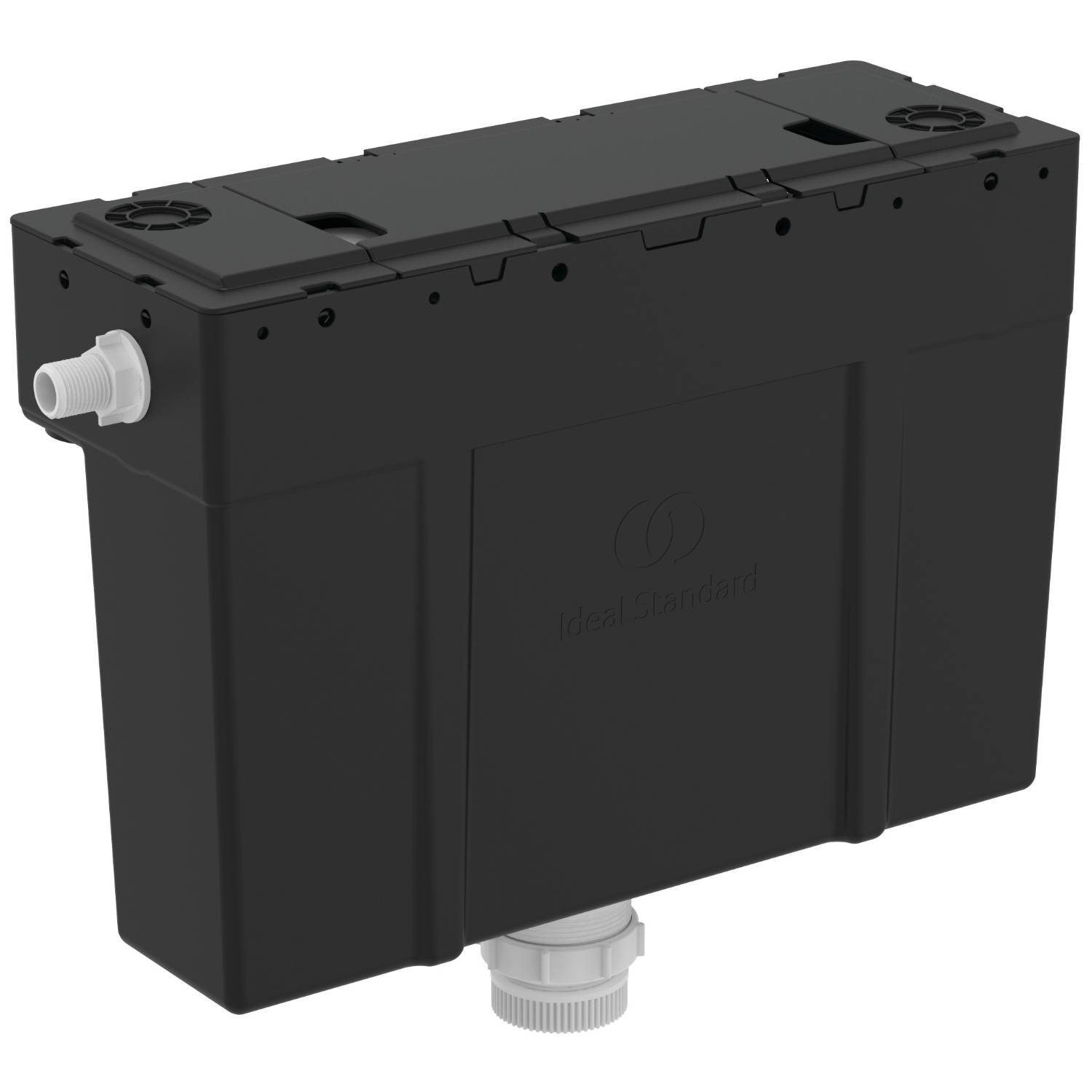

Conceala 3 High Level Pneumatic Operated Side Inlet Cistern
Verified by manufacturer today
Pneumatic operated cistern with internal overflow, side inlet and 6 L single flush, easy adjustable to low water volumes for water saving with internal overflow.
Application
Suitable for applications in a range of sectors including:
- Education.
- Healthcare.
- Hospitals.
- Sports and leisure.
Description
Pneumatic operated cistern with internal overflow, side inlet and 6 L single flush, easy adjustable to low water volumes for water saving with internal overflow.
Features and benefits:
- Components pre-fitted.
- Pneumatic push button operation.
- Single flush.
- Side inlet.
- Adjustable flush volumes.
General information
Color | Black Guidance for specification option: Cistern. White Guidance for specification option: Flushbend. |
Finish | Natural |
Material | Plastic |
Shape | Other |
Length | 415 mm |
Width | 150 mm |
Height | 290 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | S333167 |
GTIN/EAN | 5017830556800 |
Specification data - WC cisterns
Classification data | |
Standard | To BS EN 14055, Class 2. |
Form | High-level, concealed. |
Operation | Push-button. |
Materials | |
Body | Plastics. |
Finish and colour | Self-coloured. |
Capacity | 6 L. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Overflow | None (internal). |
Outlet | Bottom outlet. |
Integral accessories | 2.5 m length air tube. Guidance for specification option: Standard. Extended pipe. Guidance for specification option: Extended pipe purchased separately; consult manufacturer for more details and insert requirements. |
Net weight | 1.98 kg. |
Dimensions | 290 x 150 x 415 mm. |
Sustainability data
Material | Plastic |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
Literature
Conceala 3 Product Guide
