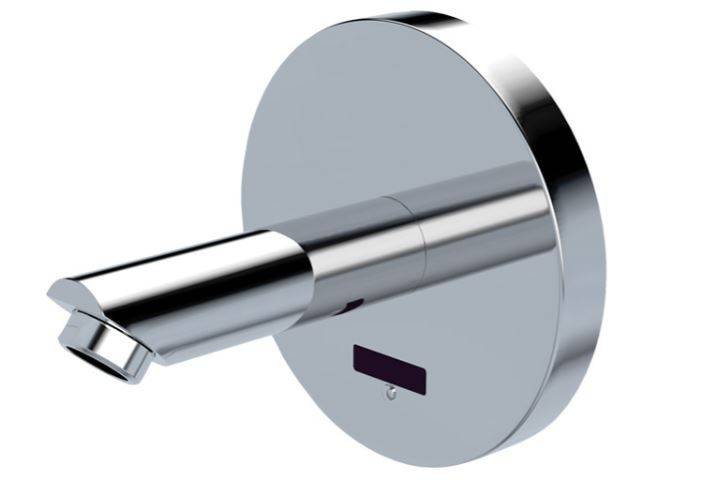

CONTI+ Lino Concealed Wall-Mounted Faucet WV10/WV20, Chrome, IR Sensor

Verified by manufacturer 4 months ago

120.330.11 - Lino concealed wall-mounted faucet WV20

Ecoprod Technique Variant:

Concealed, touchless, electronically controlled lavatory faucets.

Jump to:
01483 773373 Website

Application

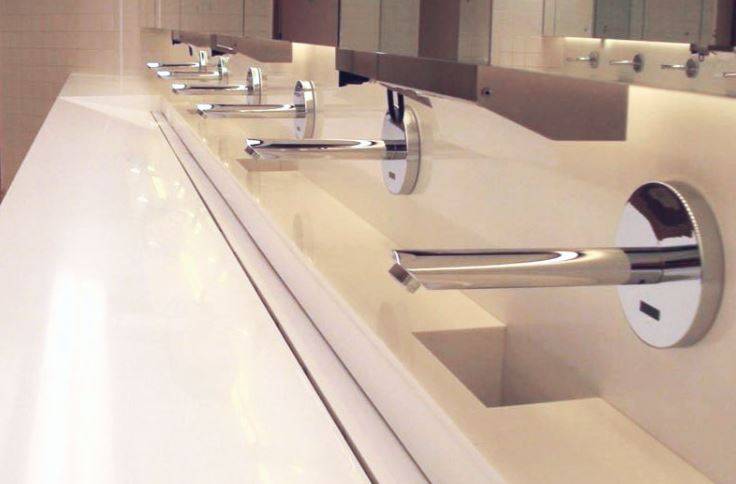

For use in public bathrooms.

Description

Wall-mounted, concealed, touchless, electronically controlled lavatory faucets with IR sensors.


Features and benefits:

  • Sturdy version, front plate and spout made of metal, chromed.
  • Built in 0.3 mm mesh filter.
  • Reliable solenoid valve ROBUST (minimal level of water pressure surge).
  • Dual infrared sensors (with automatic setting feature), microprocessor.
  • Follow-up time and sensor sensitivity adjustable with function key.
  • Check valves and built-in filters.
  • Continuous water flow time and hygienic flush time adjustable with function key.
  • 12, 24 or 48-hour hygienic flush activatable with function key.
  • Compatible with CNX and Service APP: control of stored operational data, settings and control functions.

General information

Color

Silver

Finish

Chrome

Material

Brass

Shape

Other

Circle

Length

120 mm

Guidance for specification option:

Water supply to spout. Consult manufacturer for further details.

170 mm

Guidance for specification option:

Water supply to spout. Consult manufacturer for further details.

220 mm

Guidance for specification option:

Water supply to spout. Consult manufacturer for further details.

Width

130 mm

Guidance for specification option:

Base diameter.

Height

130 mm

Warranty description

Two year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin taps

Standards

To DIN EN 200.

Form

Automatic-action taps (touchless).

Materials

-

Body

Metal.

Finish and colour

Chrome-plated.

Flow rate (maximum)

6 L/min at 3 bar.

Guidance for specification option:

Operating pressure: 0.3–10 bar.

Water supply temperature (maximum)

80°C.

Integral accessories

IR sensor.

HANSAVAROX basic unit U3V, compact-solution, DN15 (shell set), without stop valve (lino raw mounting set U3V).

Guidance for specification option:

220.027.00.

Accessories

Not required.

BLE Converter for CONTI+ Service APP (BLE converter).

Guidance for specification option:

CONO260000.

Power supply

6 V Lithium CRP2.

Guidance for specification option:

Lifetime up to four years.

Spout length

170 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Material

Brass
