CONTI+ Ultra Wall Mounted Lavatory Faucets - Chrome, with IR-sensor, G1/2 - Touchless, Electronically Controlled
Verified by manufacturer 4 months ago

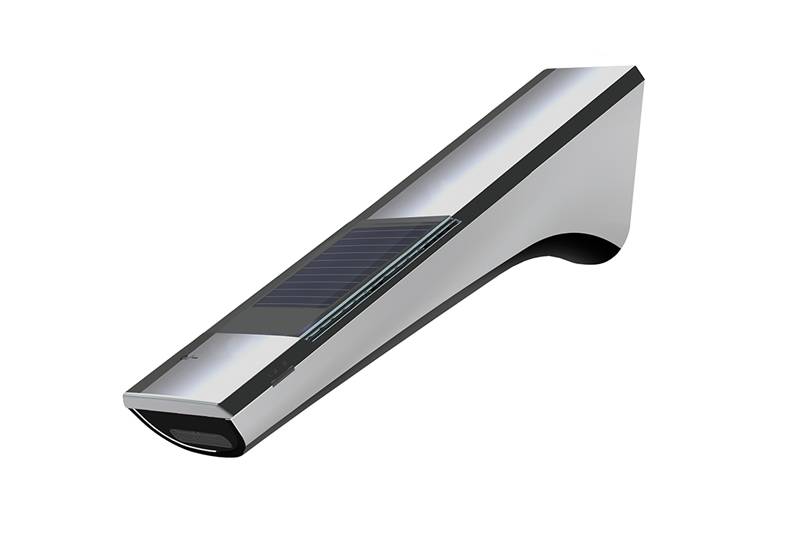

164.048.11 - GW20, chrome, IR-sensor, solar, metal, no temperature mixing
164.048.11 - GW20, chrome, IR-sensor, solar, metal, no temperature mixing
Range of wall mounted, touchless, electronically controlled lavatory faucets.
Application
Touchless, electronically controlled lavatory faucets.
Description
Range of wall mounted, touchless, electronically controlled lavatory faucets for cold or premixed water.
Features and benefits:
- Choice of power supply: Battery, VARIOconnect or solar.
- Chrome-plated as standard.
- Sturdy metal housing.
- Reliable solenoid valve ROBUST (minimal level of water pressure surge).
- Dual infrared sensors (with automatic setting feature), microprocessor.
- Vandal-resistant aerator (replaceable with integrated tool).
- Built-in filter.
- TwistStop: integrated automatic shut-off to facilitate replacing or cleaning the filter.
- One Tool Service - all system parts accessible from above.
- 12 or 24-hour hygienic flush activatable with Touch.
- Compatible with CNX and Service APP: Control of stored operational data, settings and control functions.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |

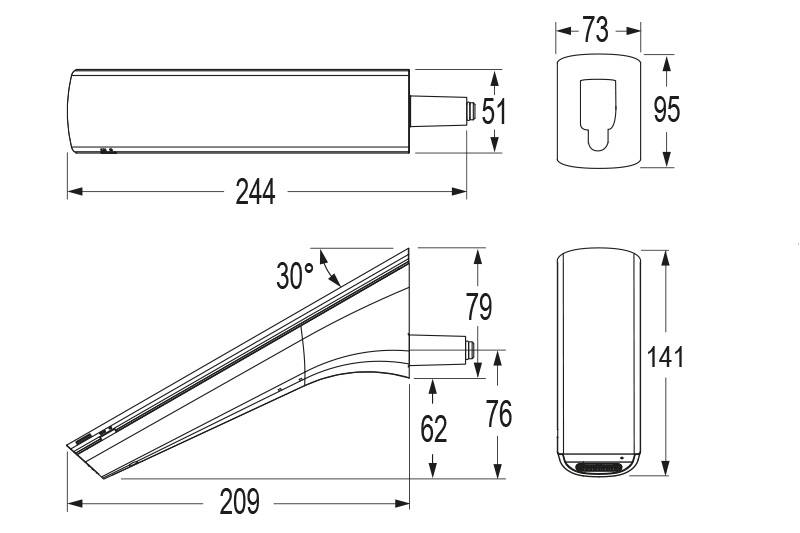

Length | 209 mm Guidance for specification option: Projection from wall. Overall length 244 mm. |
Width | 73 mm |
Warranty description | Two year Guidance for specification option: Consult manufacturer for details. |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Washbasin taps
Standards | To DIN EN 200. |
Approvals | CE marked. |
Form | Automatic-action taps (touchless), wall mounted. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5.7 L/minute at 3 bar.Guidance for specification option: Operating pressure: 0.3–10 bar. Manufacturer guidanceCan be adjusted to 1.9 L/minute with selected accessories - consult manufacturer for details. |
Water supply temperature (maximum) | 80°C. |
Integral accessories | IR sensor.Guidance for specification option:
|
Accessories | Ultra Shell set U3U, for concealed installation 220.060.00. Guidance for specification option:
Manufacturer guidanceA range of accessories is available; consult manufacturer for options and insert requirements or omit. A comprehensive list of replacement parts are also available; consult manufacturer for details. |
Power supply | Photovoltaic cell in combination with 4 x 1.5 V alkaline AA batteries. Guidance for specification option: (Backup batteries); life time up to eight years. |
Connections | G 1/2". |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Brass |
Recyclability | 100% |
