Application

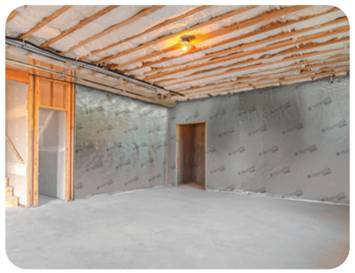

For internal walls, ceilings and floors.

Description

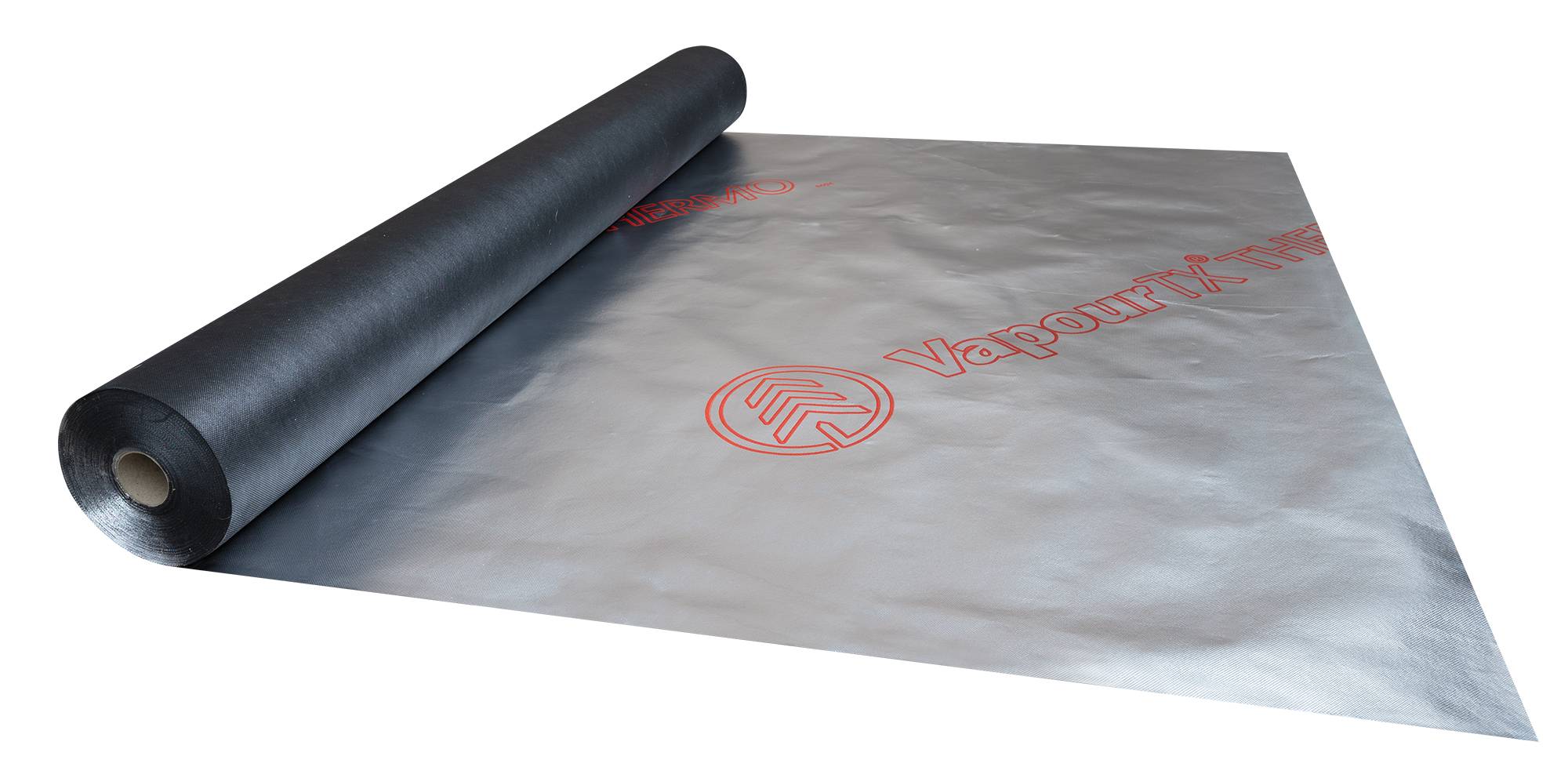

VapourTX® Thermo is a reflective, high-resistance vapour barrier for internal walls, ceilings and floors, specifically designed to enhance the thermal performance when placed on the warm side of the insulation. VapourTX® Thermo is a Type A vapour control layer tested to EN 13984 Flexible sheets for waterproofing - Plastics and rubber vapour control layers. VapourTX® Thermo conforms to the Construction Products Regulation (EU Regulation No. 305/2011), vapour control layers (Annex ZA of EN 13984) and is manufactured under control of an ISO 9001 quality management system.


Features and benefits:

  • Excellent thermal resistance 0.79 m2K/W.
  • Provides a complete air and vapour-tight barrier due to high air and vapour resistance.
  • It can be used to comply with BS 5250 and Part L.
  • Suitable for use in PassivHaus and Net Zero Carbon projects.
  • Coated to ensure aluminium foil is resistant to corrosion and damage.
  • Durable product with high nail tear and tensile properties
  • Independently third-party certified by BM TRADA to ensure product performance.
  • UK manufactured.

General information

Color

Silver

Finish

Coated

Material

Aluminium

Shape

Rectangle

Length

50000 mm

Width

3000 mm

Warranty description

Other

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

P10/60 Air and vapour control layer

P10/310 Air and vapour control layer

J42/395 Air and vapour control layer

J41/395 Air and vapour control layer

J31/330 Air and vapour control layer

J21/395 Air and vapour control layer

H31/45 Air and vapour control membrane

H31/261 Air and vapour control membrane

H30/30 Air and vapour control membrane

H30/261 Air and vapour control membrane

Specification data - Plastics sheets

Material

Aluminium foil.

Purpose

Vapour control layer.

Standard

To EN 13984.

Third-party certification

BM TRADA Q-Mark.

Performance characteristics

-

Tensile strength (minimum)

To EN 12311-1, 260 N/50 mm (MD); 200 N/50 mm (CD).

Tear resistance

To EN 12310-1, 155 N (MD); 155 N (CD).

Elongation to break

To EN 12311-1, 59% (MD), 70% (CD).

Water vapour resistance (minimum)

To EN 1931, 150 m (Sd).

Fire performance

To EN 11925-2, Class E.

Physical properties

-

Colour

Silver.

Weight (minimum)

142 g/m².

Class (minimum)

W1.

Guidance for specification option:

Water penetration to EN 1928.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Manufacturing plant location

Literature

Vapour TX Thermo Datasheet Issue 7 - Nov 2023

Vapour TX Thermo Datasheet Issue 7 - Nov 2023

VapourTX® Thermo & Reflectashield® Flyer

VapourTX® Thermo & Reflectashield® Flyer
