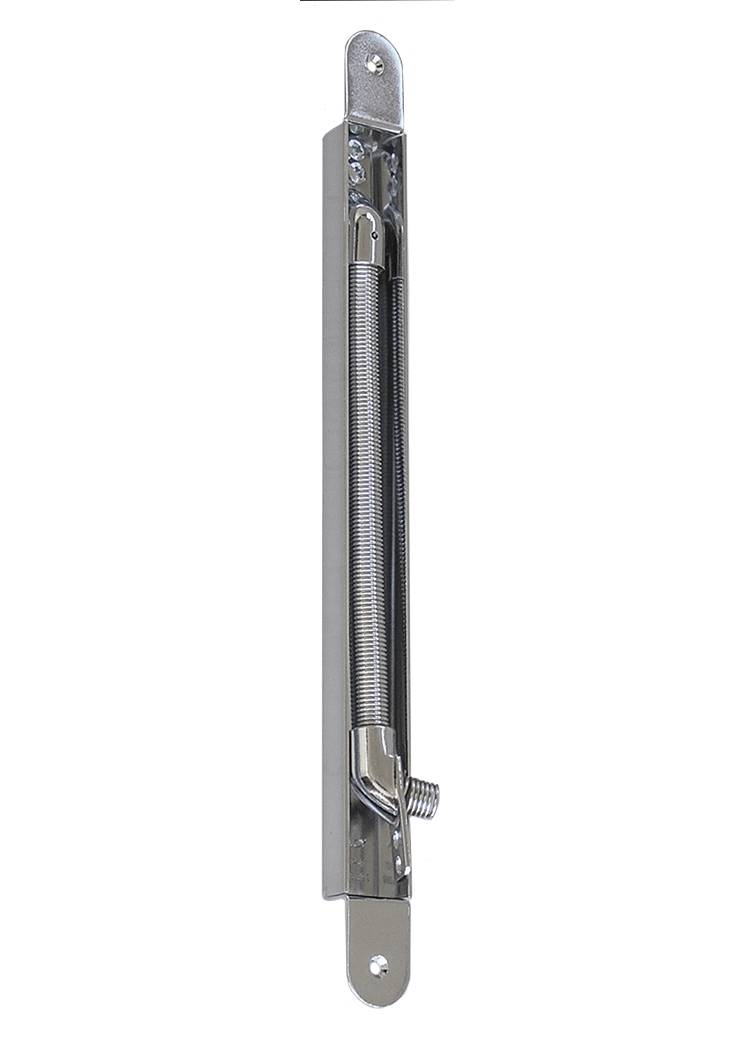

Door Loop 120° - Concealed Chrome (EA280)
Verified by manufacturer 10 months ago
Lead cover for doors opening up to 120°.
Application
- For use on doors where the distance from hinge pin to door frame is less than 20 mm.
- Not for use on centrally pivoted doors.
Description
Lead cover for doors opening up to 120° enabling the unbroken transfer of wires between door and frame.
Features and benefits:
- Invisible when door is closed.
- Maximum diameter of wire bundle 7.5 mm.
General information
Finish | Chrome |
Material | Steel Guidance for specification option: Housing and flexible tube. |
Length | Bespoke |
Width | 23.8 mm |
Height | 323 mm |
Uniclass | |
CAWS | P21/56 Door holders P21/750 Limiting door stays |
Specification data - Door limiting stays
Size | 323 x 23.8 mm. |
Material and finish | Chrome finished steel.Guidance for specification option: Housing and flexible tube. |
Colour | Self-finished. |
Execution | Fasteners for hardware. |
Product Reference | Door Loop 120° - Concealed Chrome (EA280) |
Diameter | 12 mm. Manufacturer guidanceCable diameter. |
Angle | 120°. Manufacturer guidanceOpening angle. |
