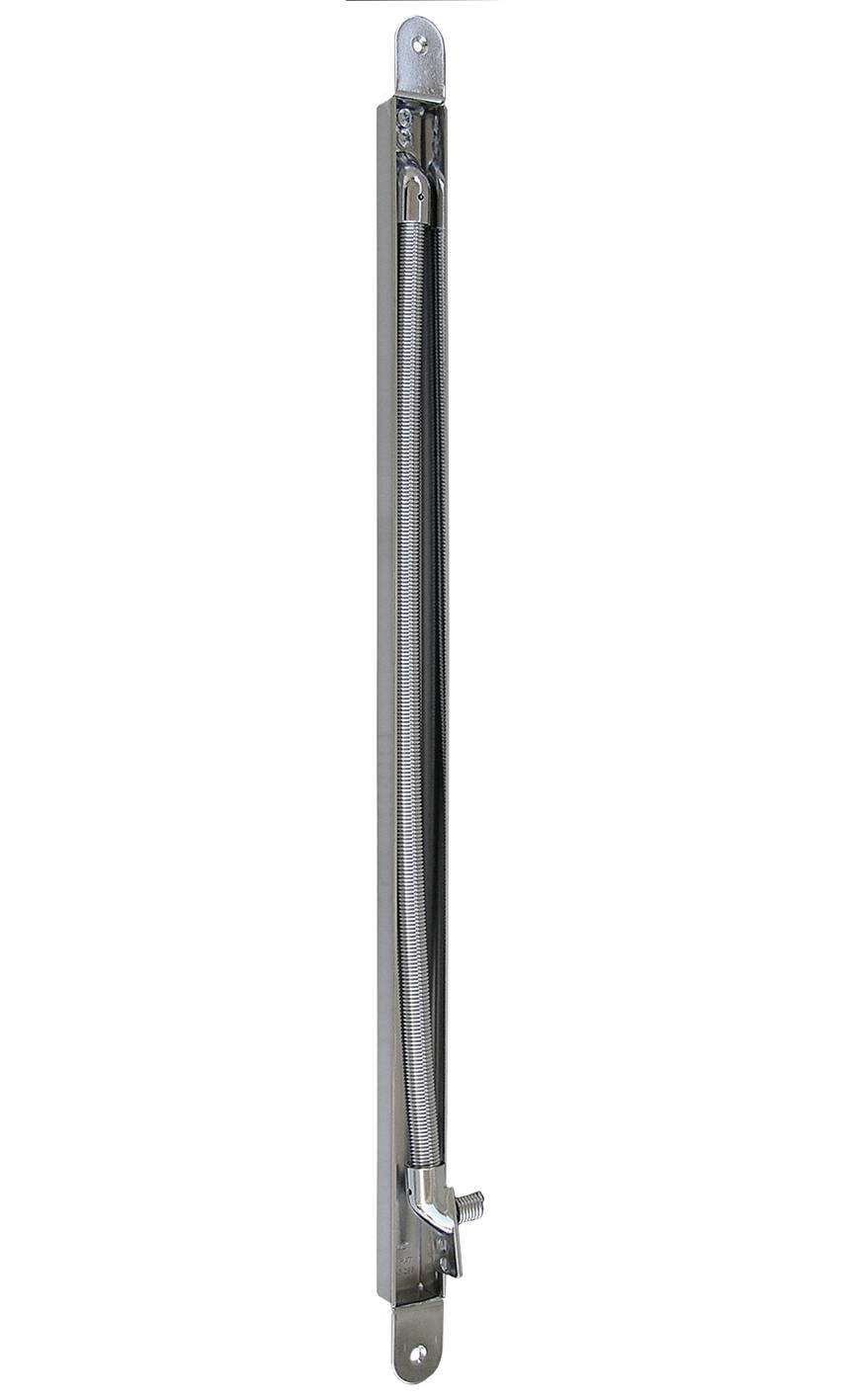

Door Loop 180° - Concealed Chrome (EA281)

Verified by manufacturer 10 months ago

Abloy UK

Lead cover for doors opening up to 180°.

Jump to:
+44 (0)1902 364500 Website

Application

  • For use on doors where the distance from hinge pin to door frame is more than 20 mm.
  • Not suitable for use on centrally pivoted doors.

Description

Lead cover for doors opening up to 180° enabling the unbroken transfer of wires between the door and frame.


Features and benefits:

  • Invisible when door is closed.
  • Maximum diameter of wire bundle 7.5 mm.

General information

Finish

Chrome

Material

Steel

Guidance for specification option:

Housing and flexible tube.

Length

Bespoke

Width

23.8 mm

Height

543 mm

Uniclass

Pr_30_36_59_24 Door limiting staysPrimary

CAWS

P21/56 Door holders

P21/750 Limiting door stays

Specification data - Door limiting stays

Size

543 x 23.8 mm.

Material and finish

Chrome finished steel.

Colour

Self-finished.

Execution

Fasteners for hardware.

Product Reference

Door Loop 180° - Concealed Chrome (EA281)

Diameter

12 mm.

Manufacturer guidance

Cable diameter.

Angle

180°.

Manufacturer guidance

Opening angle.
