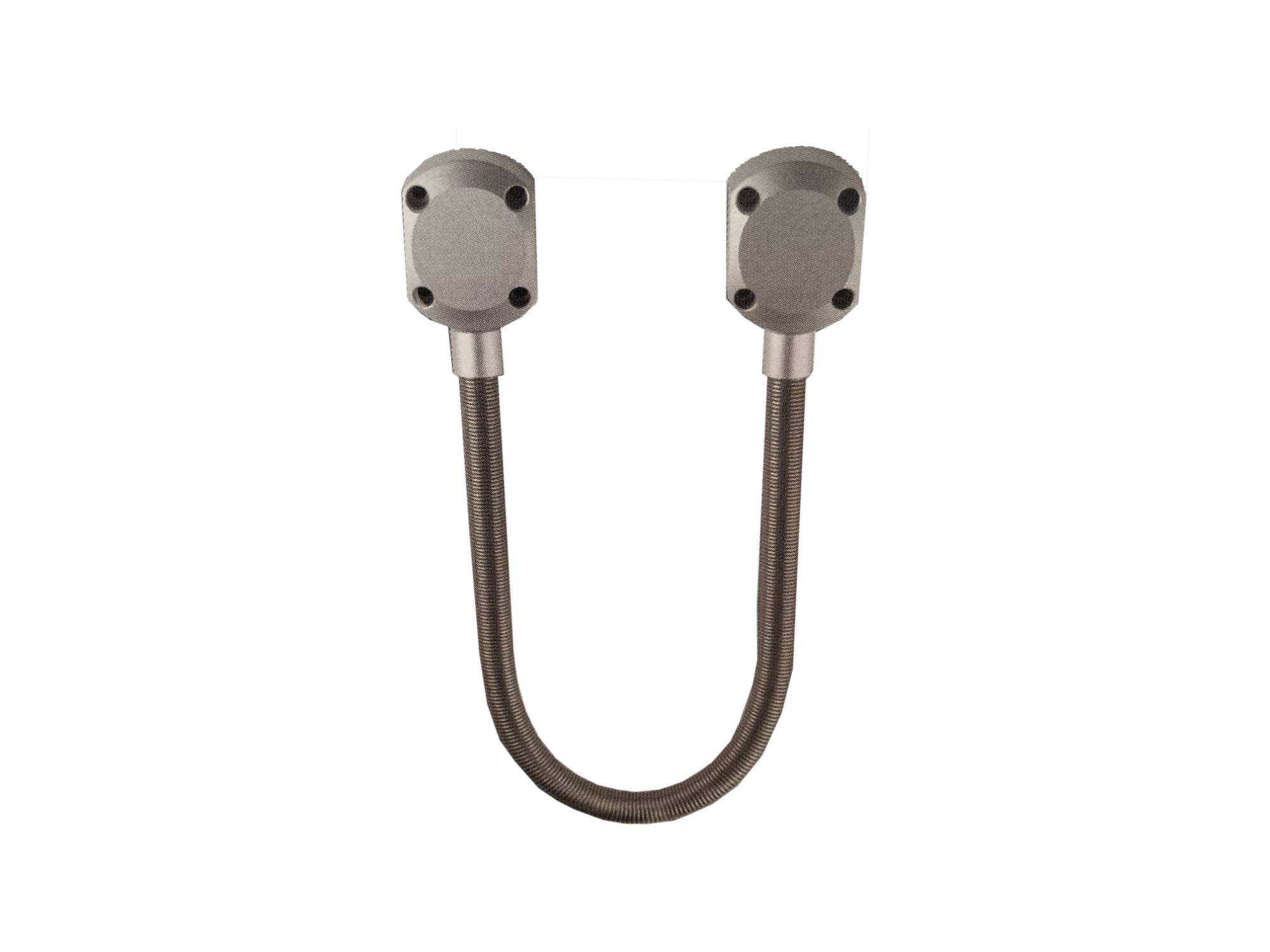

Surface Mount Door Loop (DL8)

Verified by manufacturer 10 months ago

Abloy UK

Armoured door loop.

Jump to:
+44 (0)1902 364500 Website

Application

  • Suitable for use on electric doors.
  • For internal use only.

Description

Armoured door loop to guide power and control cables from a door frame to door leaf.


Features and benefits:

  • Cast aluminium alloy ends.
  • Flexible mild steel armoured conduit.
  • Fixing screws supplied.
  • Enables the unbroken transfer of wires between door and frame.

General information

Finish

Satin

Guidance for specification option:

Satin anodised aluminium casting.

Material

Aluminium

Guidance for specification option:

Cast aluminium ends.

Steel

Guidance for specification option:

Flexible mild steel armoured conduit.

Size

450 mm

Manufacturer guidance

Overall length.

Uniclass

Pr_30_36_59_24 Door limiting staysPrimary

CAWS

P21/56 Door holders

P21/750 Limiting door stays

Specification data - Door limiting stays

Size

450 mm.

Manufacturer guidance

Over length.

Material and finish

Cast aluminium alloy and mild steel.

Guidance for specification option:

Cast aluminium alloy ends and flexible mild steel armoured conduit.


Colour

Self-finished.

Execution

Fasteners for hardware.

Product Reference

Surface Mount Door Loop (DL8)

InnerDiameter

10 mm.

OverallDiameter

8 mm.

Manufacturer guidance

Max cable diameter.

Size:

47 x 40 mm.

Manufacturer guidance

Ends size.

Length

360 mm.

Manufacturer guidance

Internal length.
