DORMA ITS96- Concealed Cam Action Door Closer EN2-4 (HUKP-0304-06) - Door Controls

Verified by manufacturer 5 months ago

Hafele UK Ltd

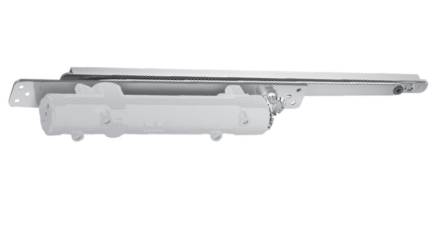

Concealed cam action door closer.

Jump to:
+44 (0)800 171 2907 Website

Application

  • Suitable for door widths up to 1100 mm.
  • For up to one hour on timber door sets.
  • For steel doors and frames up to four hours' fire-resistance.
  • Not to be fitted to timber door sets without Intumescent protection.

Description

Concealed cam action door closer.


Features and benefits:

  • Dormakaba ITS96 Concealed Cam action for single action doors.
  • Minimum 40 mm thick.
  • Closing force and latching action infinitely variable.
  • Cam action technology for rapidly decreasing opening resistance.
  • EN2-4 Max door opening angle approximately 120°.
  • Maximum door leaf 130 kg.

General information

Color

Black

Bronze

Gold

Silver

Manufacturer guidance

RAL colours available to special order.

Finish

Matt

Polished

Satin

Material

Stainless steel

Shape

Rectangle

Length

400 mm

Width

32 mm

Height

46 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Product range

Door closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

3.

Durability

8.

Door closer power size

4.

Safety

1.

Closer functions

Latching.

Materials and finishes

-

Bodies

Stainless steel.

Matt.

Polished.

Satin.

Arms

Stainless steel.

Casings

Stainless steel.

Colour

Silver.

Stainless steel.

Matt black.

Light bronze.

Dark bronze.

Hafele black.

Polished brass.

Satin brass.

RAL colour.

Manufacturer guidance

Other finishes available to special order.

Third-party certification

CE marked and Certifire approved CF 140.

Dimensions

242 x 42 mm.

Guidance for specification option:

Length x width.

Door leaf

130 kg.

Guidance for specification option:

Maximum door weight.

Opening

120°.

Sustainability data

Contains Red List materials

Yes

Guidance for specification option:

Lead in metal alloy.

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

7.68 kg CO₂ eq/kg

Self declared

Recyclability

Yes
