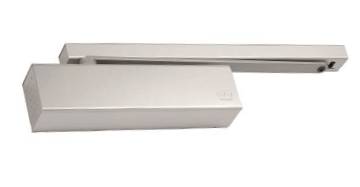

DORMA TS93-G Cam Action Contur Design Door Closer EN2-5 With Guide Rail (HUKP-0304-02) - Self Closers

Verified by manufacturer 5 months ago

Hafele UK Ltd

Cam action door closer.

Jump to:
+44 (0)800 171 2907 Website

Application

  • Suitable for door widths up to 1250 mm.
  • For up to two hours on timber door sets.
  • For steel doors and frames up to four hours' fire-resistance.

Description

Cam action door closer.


Features and benefits

  • Dormakaba TS93-G Cam Action Closer- Fig 1/61 Push Side.
  • Contur Design cover available in various finishes.
  • Adjustable ‘thinking’ backcheck.
  • Adjustable delayed action.
  • EN 2-5 adjustable and infinitely variable closing speed.

General information

Color

Bronze

Black

Silver

Gold

Manufacturer guidance

Any RAL colour available to special order.

Finish

Polished

Satin

Matt

Material

Stainless steel

Shape

Rectangle

Length

442 mm

Width

53 mm

Height

97 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Product range

Door closers

Specification data - Controlled door closers

Standard

To BS EN 1154 and BS 8300.

Classification grades (minimum)

-

Durability

8.

Door closer power size

5.

Safety

1.

Form

Mounted push side on door leaf and transom mounted on pull side.

Closer functions

Back check and delayed closing.

Materials and finishes

-

Bodies

Stainless steel.

Polished.

Satin.

Matt.

Arms

Stainless steel.

Casings

Stainless steel.

Colour

Satin stainless steel.

Polished stainless steel.

Light bronze.

Dark bronze.

Hafele black.

Matt black.

Satin brass.

RAL colour.

Manufacturer guidance

Other finishes available to special order.

Third-party certification

CE marked and Certifire approved CF 119.

Dimensions

275 x 60 mm.

Guidance for specification option:

Length x width.

Sustainability data

Contains Red List materials

Yes

Guidance for specification option:

Lead in metal alloy.

Country of material origin

Singapore

Country of product manufacture

Singapore

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

9.75 kg CO₂ eq/kg

Self declared

Recyclability

Yes
