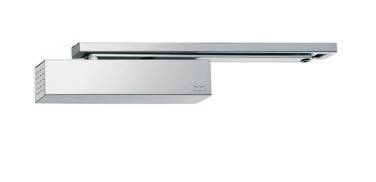

DORMA TS92-B Cam Action Door Closer in Contur Design EN1-4 with Guide Rail (HUKP-0304-03) - Self Closers
Verified by manufacturer 6 months ago
Cam action door closer.
Application
- Suitable for door widths up to 1100 mm.
- For up to two hours on timber door sets.
- For steel doors and frames up to four hours fire-resistance.
Description
Cam action door closer.
Features and benefits:
- Dormakaba TS92-B Cam Action Closer-Fig 1/61 Pull Side.
- Contur Design cover available in various finishes.
- Suitable for left and right hand use.
- EN 1-4 adjustable and infinitely variable closing speed.
General information
Color | Bronze Black Silver Gold Manufacturer guidanceRAL colours available to special order. |
Finish | Polished Matt Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 428 mm |
Width | 47 mm |
Height | 102 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Standard | To BS EN 1154 and BS 8300. |
Classification grades (minimum) | |
Durability | 8. |
Door closer power size | 4. |
Safety | 1. |
Form | Mounted on pull side of door leaf and transom mounted on push side. |
Closer functions | Controlled closing. |
Materials and finishes | |
Bodies | Stainless steel.Polished.Matt.Satin. |
Arms | Stainless steel. |
Casings | Stainless steel. |
Colour | Satin stainless steel.Polished stainless steel.Matt black.Light bronze.Dark bronze.Hafele black.Polished brass.Satin brass.RAL colour.Manufacturer guidanceOther finishes available to special order. |
Third-party certification | CE marked and Certifire approved CF 119. |
Dimensions | 281 x 65 mm. Guidance for specification option: Length x width. |
Sustainability data
Contains Red List materials | Yes Guidance for specification option: Lead in metal alloy. |
Country of material origin | Singapore |
Country of product manufacture | Singapore |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 17.58 kg CO₂ eq/kg Self declared |
Recyclability | Yes |
