Drinking Fountain - G20109N
Verified by manufacturer over a year ago

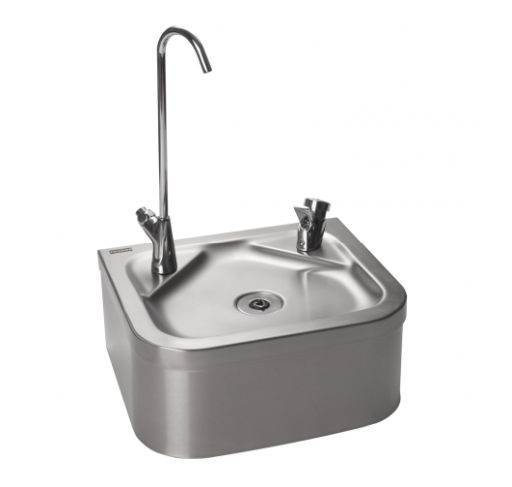

Centinel drinking fountain wall hung.
Application
Drinking water fountain for wall mounting.
Description
Centinel drinking fountain wall hung.
Features and Benefits:
- With bottle filler supplied complete with 19 mm waste and water bubbler.
- The wall mounted model is simply fixed to the wall using a joggle strip and integral mounting brackets.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Shape | Square |
Length | 264 mm |
Width | 310 mm |
Height | 135 mm |
Warranty description | Five year Guidance for specification option: Two years for water controls. |
Uniclass | |
CAWS | N13/379 Drinking fountains |
Product range |
Specification data - Water coolers
Form | Wall mounted. |
Body | Stainless Steel. |
Integral accessories | Spare bubbler. |
Product Reference | (G20100N) 213.0000.011 (G20109N) 213.0000.013 Guidance for specification option: With bottle filler. |
Sustainability data
Country of material origin | Poland |
Country of product manufacture | Poland |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
