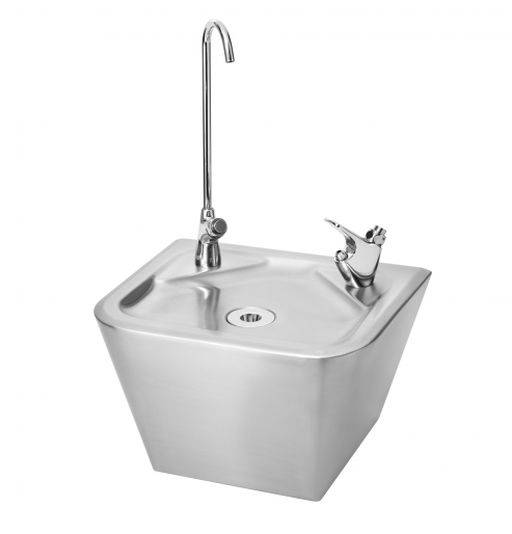

Drinking Fountain

Verified by manufacturer over a year ago

ANMX300

KWC DVS Limited Variant:

Wall hung drinking fountains.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

For hanging on the wall.

Description

Drinking water fountains manufactured from grade Austenitic stainless steel, material thickness 1.2 mm, supplied complete with waste and water bubbler. The wall mounted model is simply fixed to the wall using integral mounting brackets.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Length

258 mm

350 mm

Width

310 mm

350 mm

Height

200 mm

256 mm

461 mm

Warranty description

Five year

Guidance for specification option:

Two years for water controls

Uniclass

Pr_40_70_15_96 Water coolersPrimary

CAWS

N13/379 Drinking fountains

Product range

Drinking Fountains

Specification data - Water coolers

Dimensions

310 x 200 x 258 mm.

Guidance for specification option:

w x h x d

Product Reference

(ANMX300) 213.0000.024

(ANMX306) 213.0000.002

Guidance for specification option:

With bottle filler.

(ANMX330) 213.0000.008

Guidance for specification option:

Supplied additionally with chlorine water filter and low inlet P trap.

(ANMX331) 213.0000.009

Guidance for specification option:

Supplied additionally with bottle filter, chlorine water filter, P trap and plumbing connections.

Accessories

None.

(B9094) 213.0000.010.

Guidance for specification option:

Spare chlorine water filter.

(F1037) 208.0000.008.

Guidance for specification option:

Spare Bubbler.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2015
