Duo-6 Perimeter Twin Wire Mesh Fencing
Verified by manufacturer 4 months ago

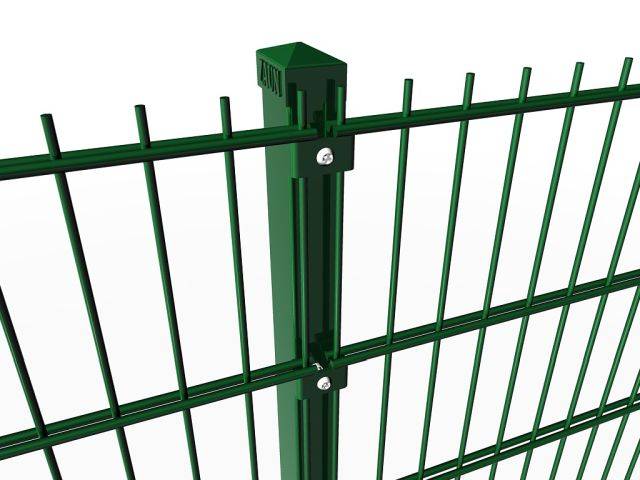

Duo6 Zaunfix
Duo6 Zaunfix
Robust fence system.
Application
- Civic and public sector.
- Health and emergency services.
- High security.
- Industrial.
- Residential and commercial.
- Schools and education.
- Transport and infrastructure.
- Utilities.
Description
Zaun’s Duo6 twin wire perimeter fencing system combines a robust design with a low visual impact that will blend into any situation. It is manufactured from dual horizontal 6 mm wires sandwiching a single 5 mm vertical wire, producing a 50 x 200 mm mesh pattern that is strong and vandal resistance. Widely specified in both private and public sectors. Each panel is fixed with either a full length clamp bar or bracket system.
Features and benefits:
- Designed with twin 6 mm horizontal wires.
- Open mesh pattern provides high visibility to monitor sites without restriction.
- High level of vandal resistance.
- Available with optional V-Beam to further increase strength.
- Supplied with standard or minimal projections at the top of the panel.
- Available either bolt down, in ground or on wall.
- For low level fences a safety capping is available.
General information
Finish | Galvanized Powder-coated |
Material | Metal |
Width | 2510 mm |
Height | 1230 mm 1830 mm 2030 mm 2430 mm |
Uniclass | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel general purpose fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Metal mesh panel fencing systems
Standard | To BS1722, ISO 12944. |
Posts | 60 x 60 mm rectangular hollow section (RHS) posts.Guidance for specification option: Sizes dependent on height, spaced at 2525 mm centres. |
Panels | Duo6 mesh.Guidance for specification option: Comprising 50 x 200 mm mesh with dual 6 mm horizontal wires at 200 mm centres and single 5 mm vertical wires at 50 mm centres. |
System accessories | Not required.Pedestrian gates.Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gates.Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. V-beam.Safety capping. |
Height | 1230 mm. 1830 mm. 2030 mm. 2430 mm. Manufacturer guidanceOther heights are available upon request. |
Applied finishes | Galvanized and polyester powder coated. |
Fixing | Bolt down. In ground. Wall. |
Gates | 50 x 50 mm RHS frame, Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop and two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts. |
Projection | Minimal. Standard. |
Panel fixings | Panels fixed to posts with ZaunFix clip and bolt fixings at 400 mm centres. |
Width | 2510 mm. Manufacturer guidanceOptional widths are available upon request |
WireDiameter | 5 mm / 2 x 6 mm. Guidance for specification option: Vertical x Horizontal. |
Fixings | Anti tamper security fixings. |
Post centres | 2525 mm. |
Fixing method | Clips. |
Literature
Zaun Systems Brochure
