Elite 1 - Roof System

Name: Elite 1 - Roof System
Brand: Euroclad Group Ltd
SKU: asYLHJP8oDSkLYFVBS6c4n

Verified by manufacturer 5 months ago

Euroclad Group Ltd

Insulated built-up roof with a trapezoidal external profile.

Jump to:

+44 (0)2922 010101 Website

Application

Suitable for commercial and offices, distribution centres, education, industrial, mechanical, retail and transport applications.

Description

Elite 1 is recommended for use in designs with a finished roof pitch equal to or greater than 4°. Barrel vault curved roofs can also be achieved where crown sheet end laps are equal to or greater than 2.5° finished pitch.

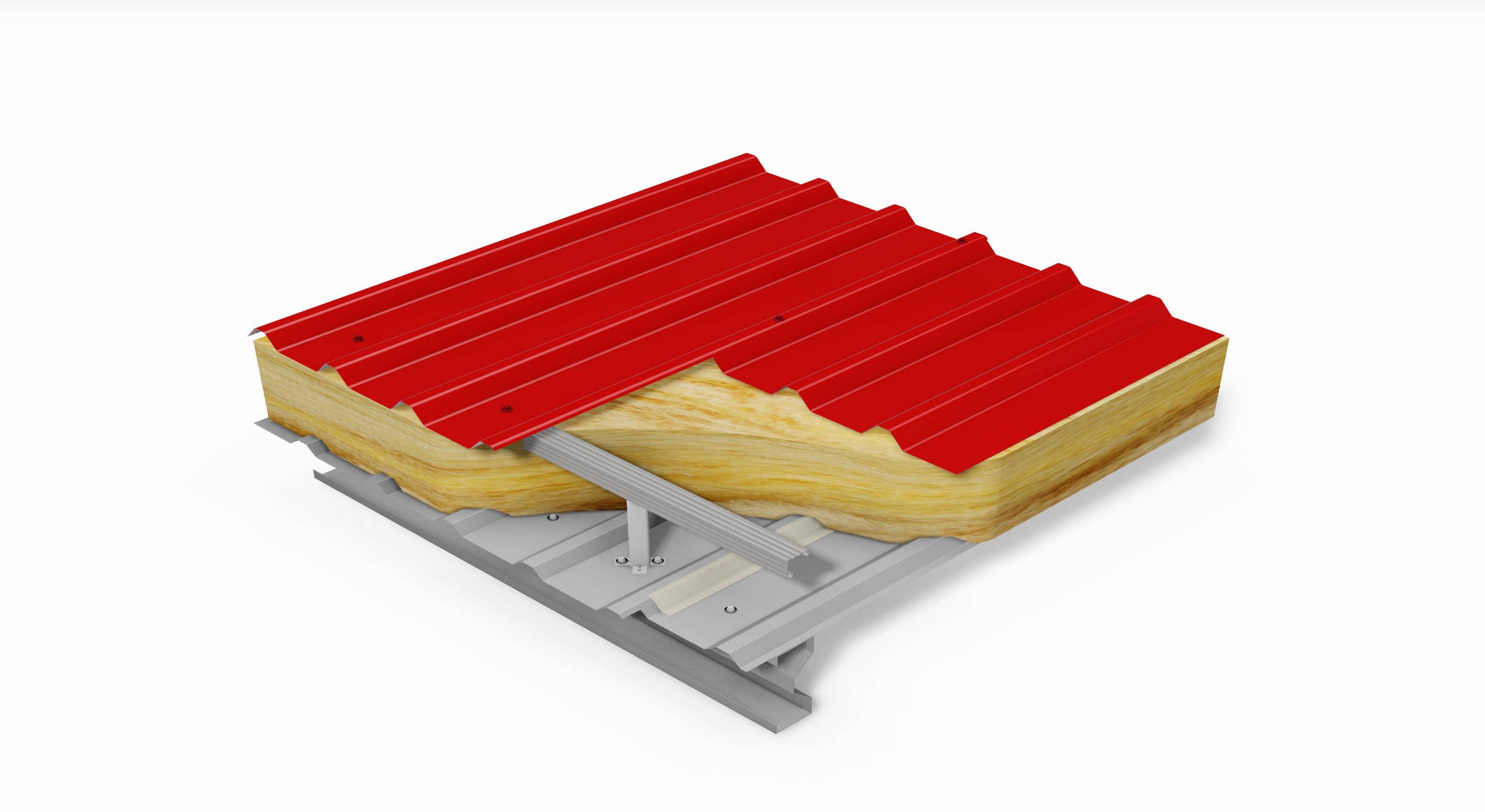

The EC 32-167-1000 Roof Profile 1 or EC 32-167-1000 Roof SF Forward Special external profile is fixed to the Quattro spacer system, which creates the insulation gap between the outer sheet and the EC 19-167-1000 Liner 2 liner.

Features and benefits:

0.7 mm EC 32-167-1000 Roof external steel sheet.
0.4 mm EC 19-167-1000 Liner internal steel sheet.
Quattro Spacer System featuring Quattro Bar and Quattro Bracket.
0.040λ (Lambda) quilt insulation.
External steel sheet available in a range of coatings and colours.

General information

Color	White Grey Black Blue Brown Yellow Green Red Beige Show more
Finish	Coated
Material	Steel Glass mineral wool Mineral wool Mineral fibre
Shape	Trapezoid
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: Guaranteed for up to 30 years with the Elite Plus system guarantee.

Uniclass	Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary
CAWS	H31/10 Metal H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Classification data
System performance	External sheet coating fire performance: To BS EN 13501-5:2016, BROOF(T4). Guidance for specification option: Colorcoat HPS200 Ultra: By physical testing. Colorcoat Prisma: By Commission Decision 2000/553/EC.
Liner sheets	-
Material	Euroclad EC 19-167-1000 Liner 2 0.4 mm steel.
Primary fasteners	Carbon steel fixings. Guidance for specification option: Elite guarantee. Stainless steel fixings. Guidance for specification option: Elite PLUS guarantee.
End and side laps	Not required.
Air and vapour control layer	-
Material	Euroclad Elite VCL. Euroclad Elite HH VCL.
Sealing	Euroclad Elite VCL Sealing Tape. Euroclad Elite HH VCL Sealing Tape.
Spacers	Quattro Bar and 80 mm Quattro Bracket. Guidance for specification option: System depth: 112.40 mm. U-value: 0.57 W/m²K. Quattro Bar and 100 mm Quattro Bracket. Guidance for specification option: System depth: 132.40 mm. U-value: 0.45 W/m²K. Quattro Bar and 120 mm Quattro Bracket. Guidance for specification option: System depth: 152.40 mm. U-value: 0.37 W/m²K. Quattro Bar and 140 mm Quattro Bracket. Guidance for specification option: System depth: 172.40 mm. U-value: 0.32 W/m²K. Quattro Bar and 150 mm Quattro Bracket. Guidance for specification option: System depth: 182.40 mm. U-value: 0.30 W/m²K. Quattro Bar and 160 mm Quattro Bracket. Guidance for specification option: System depth: 192.40 mm. U-value: 0.28 W/m²K. Quattro Bar and 170 mm Quattro Bracket. Guidance for specification option: System depth: 202.40 mm. U-value: 0.26 W/m²K. Quattro Bar and 180 mm Quattro Bracket. Guidance for specification option: System depth: 212.40 mm. U-value: 0.25 W/m²K. Quattro Bar and 185 mm Quattro Bracket. Guidance for specification option: System depth: 217.40 mm. U-value: 0.24 W/m²K. Quattro Bar and 200 mm Quattro Bracket. Guidance for specification option: System depth: 232.40 mm. U-value: 0.23 W/m²K. Quattro Bar and 220 mm Quattro Bracket. Guidance for specification option: System depth: 252.40 mm. U-value: 0.20 W/m²K. Quattro Bar and 240 mm Quattro Bracket. Guidance for specification option: System depth: 272.40 mm. U-value: 0.19 W/m²K. Quattro Bar and 260 mm Quattro Bracket. Guidance for specification option: System depth: 292.40 mm. U-value: 0.17 W/m²K. Quattro Bar and 280 mm Quattro Bracket. Guidance for specification option: System depth: 312.40 mm. U-value: 0.16 W/m²K. Quattro Bar and 300 mm Quattro Bracket. Guidance for specification option: System depth: 332.40 mm. U-value: 0.15 W/m²K. Quattro Bar and 320 mm Quattro Bracket. Guidance for specification option: System depth: 352.40 mm. U-value: 0.14 W/m²K. Quattro Bar and 340 mm Quattro Bracket. Guidance for specification option: System depth: 372.40 mm. U-value: 0.13 W/m²K. Quattro Bar and 360 mm Quattro Bracket. Guidance for specification option: System depth: 392.40 mm. U-value: 0.12 W/m²K. Quattro Bar and 380 mm Quattro Bracket. Guidance for specification option: System depth: 412.40 mm. U-value: 0.12 W/m²K. Quattro Bar and 400 mm Quattro Bracket. Guidance for specification option: System depth: 432.40 mm. U-value: 0.11 W/m²K.
Thermal insulation	Knauf Factoryclad 40. Rockwool Cladding Roll. Superglass Cladding Mat 40. Manufacturer guidance Declared lambda: 0.040 W/mK.
External sheets	-
Material	EC 32-167-1000 Roof Profile 1 0.7 mm steel Colorcoat HPS200 Ultra®. EC 32-167-1000 Roof SF Forward Special 0.7 mm steel Colorcoat HPS200 Ultra®. EC 32-167-1000 Roof Profile 1 0.7 mm steel Colorcoat Prisma®. EC 32-167-1000 Roof SF Forward Special 0.7 mm steel Colorcoat Prisma®.
Primary fasteners	Carbon steel fixings. Guidance for specification option: Elite guarantee. Stainless steel fixings. Guidance for specification option: Elite PLUS guarantee.
System accessories	Fasteners Standard U-value rooflights. Flashings. Membranes. Tapes. Mastic and sealants. Fabrications. PV solutions. Fall arrest and fall restraint. Roof penetrations. Manufacturer guidance Consult manufacturer for details.
Colour/ Finish	Alaska Grey (RAL 7000). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Albatross (RAL 240 80 05). Guidance for specification option: Colorcoat HPS200 Ultra®. Anthracite (RAL 7016). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Aquarius. Guidance for specification option: Colorcoat Prisma®. Ardenne (RAL 7022). Guidance for specification option: Colorcoat HPS200 Ultra®. Ariana. Guidance for specification option: Colorcoat Prisma®. Atlantis. Guidance for specification option: Colorcoat Prisma®. Barn Red (RAL 030 30 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Black (RAL 9005). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Burano (RAL 3004). Guidance for specification option: Colorcoat HPS200 Ultra®. Chili (RAL 3000). Guidance for specification option: Colorcoat HPS200 Ultra®. Cream (RAL 1015). Guidance for specification option: Colorcoat Prisma®. Ephyra. Guidance for specification option: Colorcoat Prisma®. Goosewing Grey (RAL 7038). Guidance for specification option: Colorcoat HPS200 Ultra®. Green Grey (RAL 150 40 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Hamlet (RAL 9002). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Helios. Guidance for specification option: Colorcoat Prisma®. Heritage Green (RAL 6002). Guidance for specification option: Colorcoat HPS200 Ultra®. Honesty (RAL 1015). Guidance for specification option: Colorcoat HPS200 Ultra®. Ice Blue (RAL 230 80 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Ivy (RAL 170 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Jade (RAL 150 50 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Juniper Green (RAL 140 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Kronos. Guidance for specification option: Colorcoat Prisma®. Marlstone (RAL 1013). Guidance for specification option: Colorcoat HPS200 Ultra®. Meadowland (RAL 100 80 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Merlin Grey (RAL 180 40 05). Guidance for specification option: Colorcoat HPS200 Ultra®. Mole Brown (RAL 070 40 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Moorland Green (RAL 100 60 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Mushroom (RAL 080 70 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Ocean Blue (RAL 220 30 25). Guidance for specification option: Colorcoat HPS200 Ultra®. Olive Green (RAL 100 30 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Orion (RAL 9007). Guidance for specification option: Colorcoat Prisma®. Orion Matt (RAL 9007). Guidance for specification option: Colorcoat Prisma®. Oxide Red† (RAL 3009). Guidance for specification option: Colorcoat Prisma®. Oxidised (RAL 050 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Oyster (RAL 7035). Guidance for specification option: Colorcoat Prisma®. Pegasus. Guidance for specification option: Colorcoat Prisma®. Petra (RAL 3013). Guidance for specification option: Colorcoat HPS200 Ultra®. Pure Grey (RAL 000 55 00). Guidance for specification option: Colorcoat HPS200 Ultra®. Raven (RAL 7021). Guidance for specification option: Colorcoat HPS200 Ultra®. Sargasso (RAL 5003). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Seren Black. Guidance for specification option: Colorcoat Prisma®. Seren Copper. Guidance for specification option: Colorcoat Prisma®. Seren Gold. Guidance for specification option: Colorcoat Prisma®. Seren Silver. Guidance for specification option: Colorcoat Prisma®. Seren White. Guidance for specification option: Colorcoat Prisma®. Sirius (RAL 9006). Guidance for specification option: Colorcoat Prisma®. Sirius Matt (RAL 9006). Guidance for specification option: Colorcoat Prisma®. Slate Grey (RAL 7012). Guidance for specification option: Colorcoat Prisma®. Solent Blue (RAL 240 40 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Straw (RAL 080 70 30). Guidance for specification option: Colorcoat HPS200 Ultra®. Svelte Grey (RAL 080 50 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Terracotta (RAL 040 40 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Van Dyke Brown (RAL 8014). Guidance for specification option: Colorcoat HPS200 Ultra®. Wedgewood Blue (RAL 220 5 15). Guidance for specification option: Colorcoat HPS200 Ultra®. White (RAL 9003). Guidance for specification option: Colorcoat HPS200 Ultra®. White (RAL 9010). Guidance for specification option: Colorcoat Prisma®. White Matt (RAL 9010). Guidance for specification option: Colorcoat Prisma®. Zeus Matt. Guidance for specification option: Colorcoat Prisma®.
