Elite 7 Range - Roof System

Name: Elite 7 Range - Roof System
Brand: Euroclad Group Ltd
SKU: vCz9skoTbhHYcQoK7Q6jnT

Verified by manufacturer 4 months ago

Elite 7

Euroclad Group Ltd

Insulated trapezoidal roof system over a structural deck profile.

Jump to:

+44 (0)2922 010101 Website

Application

Suitable for commercial and offices, distribution centres, education, industrial, mechanical, retail and transport applications.

Description

Euroclad Elite 7 Range provides a trapezoidal roofing system utilising a Euroclad structural deck fitted directly to the main frame without secondary steelwork.

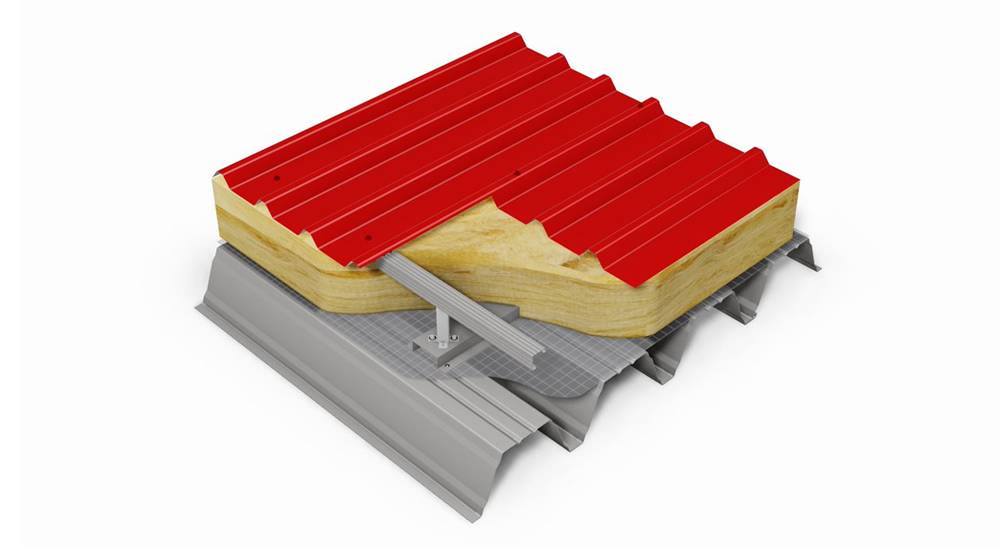

The EC 32-167-1000 Roof Profile 1 or EC 32-167-1000 Roof SF Forward Special roof external profile is fixed to the Quattro spacer system and tophats which together create the insulation gap between the outer sheet and the structural deck.

Features and benefits:

0.7 mm EC 32-167-1000 Roof external steel sheet.
Joris Ide internal structural deck profile (non-perforated or web-perforated).
30 mm deep 1.6 mm gauge galvanized steel tophats.
Quattro Spacer System featuring Quattro Bars and Quattro Brackets.
0.040λ (Lambda) quilt insulation.

General information

Color	White Grey Black Blue Brown Yellow Green Red Beige Show more
Finish	Coated
Material	Steel Glass mineral wool Mineral wool Mineral fibre
Shape	Trapezoid
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: Guaranteed for up to 30 years with the Elite Plus system guarantee.

Uniclass	Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary
CAWS	H31/10 Metal H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Classification data
System performance	External sheet coating fire performance: To BS EN 13501-5:2016, BROOF(T4). Guidance for specification option: Colorcoat HPS200 Ultra: By physical testing. Colorcoat Prisma: By Commission Decision 2000/553/EC.
Liner sheets	-
Material	Structural deck - JID 100-275-825. Structural deck - JID 137-310-930. Structural deck - JID 153-280-840. Structural deck - JID 158-250-750. Structural deck - JID 200-375-750. Manufacturer guidance Available in 0.75 mm, 0.88 mm, 1.00 mm, 1.25 mm and 1.50 mm thicknesses. Insert requirements.
Primary fasteners	Carbon steel fixings. Guidance for specification option: Elite guarantee. Stainless steel fixings. Guidance for specification option: Elite PLUS guarantee.
End and side laps	Not required.
Air and vapour control layer	-
Material	Standard Elite VCL.
Sealing	Euroclad Elite VCL Sealing Tape.
Spacers	Quattro Bar, 80 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 343.50 mm. U-value: 0.38 W/m²K. Quattro Bar, 100 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 363.50 mm. U-value: 0.32 W/m²K. Quattro Bar, 120 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 383.50 mm. U-value: 0.28 W/m²K. Quattro Bar, 140 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 403.50 mm. U-value: 0.25 W/m²K. Quattro Bar, 150 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 413.50 mm. U-value: 0.24 W/m²K. Quattro Bar, 160 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 423.50 mm. U-value: 0.23 W/m²K. Quattro Bar, 170 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 433.50 mm. U-value: 0.21 W/m²K. Quattro Bar, 180 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 443.50 mm. U-value: 0.20 W/m²K. Quattro Bar, 185 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 448.50 mm. U-value: 0.20 W/m²K. Quattro Bar, 200 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 463.50 mm. U-value: 0.19 W/m²K. Quattro Bar, 220 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 483.50 mm. U-value: 0.17 W/m²K. Quattro Bar, 240 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 503.50 mm. U-value: 0.16 W/m²K. Quattro Bar, 260 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 523.50 mm. U-value: 0.15 W/m²K. Quattro Bar, 280 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 543.50 mm. U-value: 0.14 W/m²K. Quattro Bar, 300 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 563.50 mm. U-value: 0.13 W/m²K. Quattro Bar, 320 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 583.50 mm. U-value: 0.12 W/m²K. Quattro Bar, 340 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 603.50 mm. U-value: 0.12 W/m²K. Quattro Bar, 360 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 623.50 mm. U-value: 0.11 W/m²K. Quattro Bar, 380 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 643.50 mm. U-value: 0.11 W/m²K. Quattro Bar, 400 mm Quattro Bracket and tophats. Guidance for specification option: System depth: 663.50 mm. U-value: 0.10 W/m²K. Manufacturer guidance Note: Depths and weights calculated with JID 200-375-750 in 1.5 mm gauge, as this is the deepest and heaviest possible structural deck from shown available options.
Thermal insulation	Knauf Factoryclad 40. Rockwool Cladding Roll. Superglass Cladding Mat. 40. Manufacturer guidance Declared lambda: 0.040 W/mK.
External sheets	-
Material	EC 32-167-1000 Roof Profile 1 Colorcoat HPS200 Ultra®. EC 32-167-1000 Roof SF Forward Special 0.7 mm steel Colorcoat HPS200 Ultra®. EC 32-167-1000 Roof Profile 1 Colorcoat Prisma®. EC 32-167-1000 Roof SF Forward Special 0.7 mm steel Colorcoat Prisma®.
Primary fasteners	Carbon steel fixings. Guidance for specification option: Elite guarantee. Stainless steel fixings. Guidance for specification option: Elite PLUS guarantee.
System accessories	Fasteners Standard U-value rooflights. Flashings. Membranes. Tapes. Mastic and sealants. Fabrications. PV solutions. Fall arrest and fall restraint. Roof penetrations. Manufacturer guidance Consult manufacturer for details.
Colour/ Finish	Alaska Grey (RAL 7000). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Albatross (RAL 240 80 05). Guidance for specification option: Colorcoat HPS200 Ultra®. Anthracite (RAL 7016). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Aquarius. Guidance for specification option: Colorcoat Prisma®. Ardenne (RAL 7022). Guidance for specification option: Colorcoat HPS200 Ultra®. Ariana. Guidance for specification option: Colorcoat Prisma®. Atlantis. Guidance for specification option: Colorcoat Prisma®. Barn Red (RAL 030 30 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Black (RAL 9005). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Burano (RAL 3004). Guidance for specification option: Colorcoat HPS200 Ultra®. Chili (RAL 3000). Guidance for specification option: Colorcoat HPS200 Ultra®. Cream (RAL 1015). Guidance for specification option: Colorcoat Prisma®. Ephyra. Guidance for specification option: Colorcoat Prisma®. Goosewing Grey (RAL 7038). Guidance for specification option: Colorcoat HPS200 Ultra®. Green Grey (RAL 150 40 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Hamlet (RAL 9002). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Helios. Guidance for specification option: Colorcoat Prisma®. Heritage Green (RAL 6002). Guidance for specification option: Colorcoat HPS200 Ultra®. Honesty (RAL 1015). Guidance for specification option: Colorcoat HPS200 Ultra®. Ice Blue (RAL 230 80 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Ivy (RAL 170 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Jade (RAL 150 50 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Juniper Green (RAL 140 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Kronos. Guidance for specification option: Colorcoat Prisma®. Marlstone (RAL 1013). Guidance for specification option: Colorcoat HPS200 Ultra®. Meadowland (RAL 100 80 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Merlin Grey (RAL 180 40 05). Guidance for specification option: Colorcoat HPS200 Ultra®. Mole Brown (RAL 070 40 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Moorland Green (RAL 100 60 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Mushroom (RAL 080 70 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Ocean Blue (RAL 220 30 25). Guidance for specification option: Colorcoat HPS200 Ultra®. Olive Green (RAL 100 30 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Orion (RAL 9007). Guidance for specification option: Colorcoat Prisma®. Orion Matt (RAL 9007). Guidance for specification option: Colorcoat Prisma®. Oxide Red† (RAL 3009). Guidance for specification option: Colorcoat Prisma®. Oxidised (RAL 050 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Oyster (RAL 7035). Guidance for specification option: Colorcoat Prisma®. Pegasus. Guidance for specification option: Colorcoat Prisma®. Petra (RAL 3013). Guidance for specification option: Colorcoat HPS200 Ultra®. Pure Grey (RAL 000 55 00). Guidance for specification option: Colorcoat HPS200 Ultra®. Raven (RAL 7021). Guidance for specification option: Colorcoat HPS200 Ultra®. Sargasso (RAL 5003). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Seren Black. Guidance for specification option: Colorcoat Prisma®. Seren Copper. Guidance for specification option: Colorcoat Prisma®. Seren Gold. Guidance for specification option: Colorcoat Prisma®. Seren Silver. Guidance for specification option: Colorcoat Prisma®. Seren White. Guidance for specification option: Colorcoat Prisma®. Sirius (RAL 9006). Guidance for specification option: Colorcoat Prisma®. Sirius Matt (RAL 9006). Guidance for specification option: Colorcoat Prisma®. Slate Grey (RAL 7012). Guidance for specification option: Colorcoat Prisma®. Solent Blue (RAL 240 40 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Straw (RAL 080 70 30). Guidance for specification option: Colorcoat HPS200 Ultra®. Svelte Grey (RAL 080 50 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Terracotta (RAL 040 40 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Van Dyke Brown (RAL 8014). Guidance for specification option: Colorcoat HPS200 Ultra®. Wedgewood Blue (RAL 220 5 15). Guidance for specification option: Colorcoat HPS200 Ultra®. White (RAL 9003). Guidance for specification option: Colorcoat HPS200 Ultra®. White (RAL 9010). Guidance for specification option: Colorcoat Prisma®. White Matt (RAL 9010). Guidance for specification option: Colorcoat Prisma®. Zeus Matt. Guidance for specification option: Colorcoat Prisma®.
