Elite 10 - Roof System
Verified by manufacturer 5 months ago
A secret-fixed cold roof system.
Application
Suitable for commercial and offices, distribution centres, education, industrial, mechanical, retail and transport applications.
Description
Euroclad Elite 10 Range offers a secret fixed cold roof solution whilst retaining the aesthetic of a traditional warm roof system.

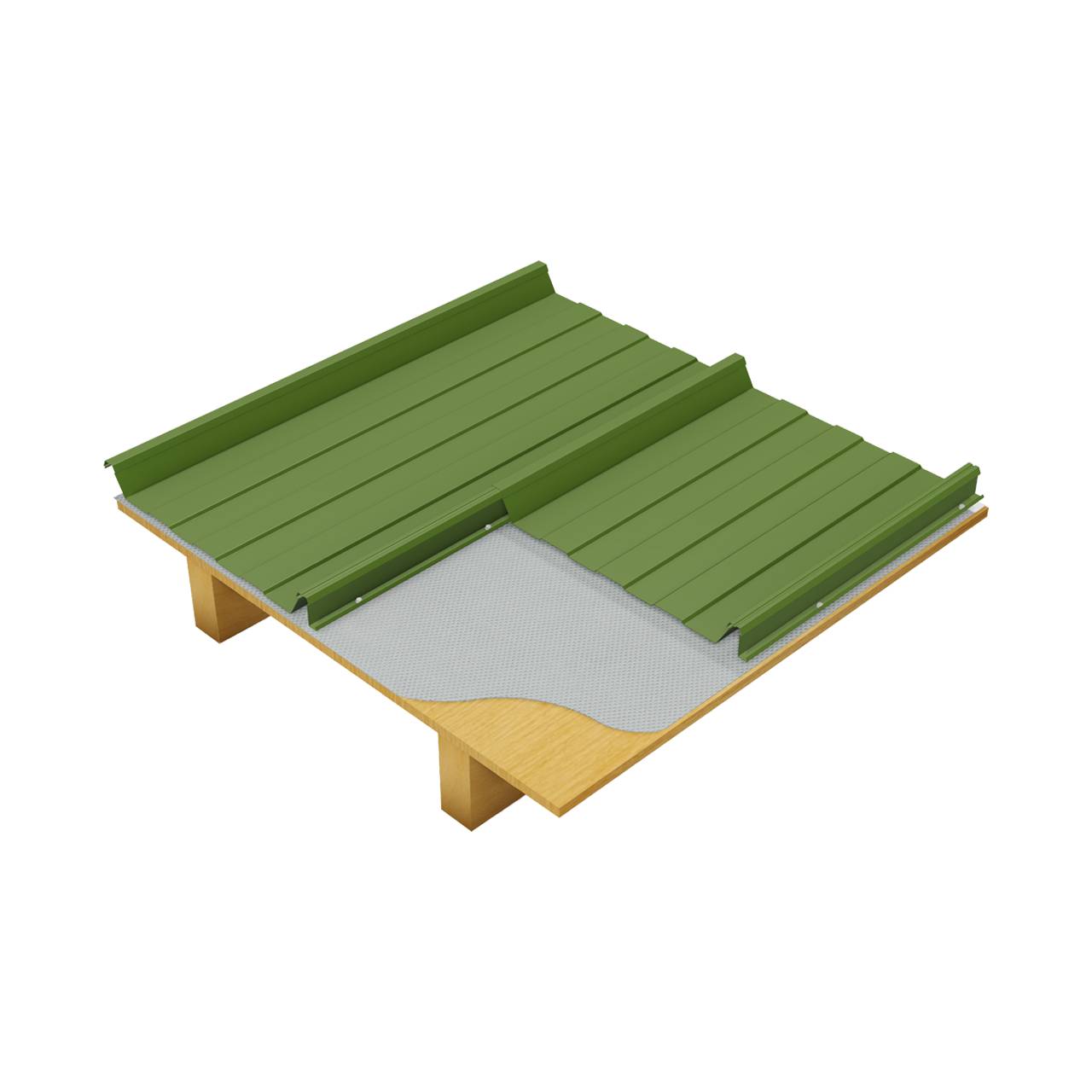

The SF500 snap fix overlap profile enables a quick and simple installation. The system comprises interlocking profiled sheets and accessories for fixing to timber and OSB decking or structural plywood (18 mm minimum thickness). The system allows for finished pitches as low as 1º and can also self-curve to a 50 metre radius (convex).
General information
Color | White Grey Black Blue Beige |
Finish | Coated |
Material | Steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Guaranteed for up to 30 years with the Elite Plus system guarantee. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Specification data - Metal profiled sheet self-supporting roof covering systems
Classification data | |
System performance | External sheet coating fire performance: To BS EN 13501-5:2016, BROOF(T4). Guidance for specification option: Colorcoat HPS200 Ultra: By physical testing. Other coating options are available on request. |
Liner sheets | |
Material | Structural timber deck (by others). |
Primary fasteners | Carbon steel fixings. Guidance for specification option: Elite guarantee. Stainless steel fixings. Guidance for specification option: Elite PLUS guarantee. |
Breather membrane | |
Material | Euroclad Breather Membrane. |
External sheets | |
Material | Euroclad EC 54-500 Secret Fix 0.7 mm steel Colorcoat HPS200 Ultra®. Euroclad EC 54-500 Secret Fix 0.7 mm steel Colorcoat Prisma®. Manufacturer guidanceSystem depth: 54 mm. System weight: 7.75 kg/m². |
Primary fasteners | Carbon steel fixings. Guidance for specification option: Elite guarantee. Stainless steel fixings. Guidance for specification option: Elite PLUS guarantee. |
System accessories | Fasteners Standard U-value rooflights. Flashings. Membranes. Non-penetrative clamps. Guidance for specification option: For attachment of PV arrays and other roof-mounted installations such as walkways. Tapes. Mastic and sealants. Fabrications. PV solutions. Fall arrest and fall restraint. Roof penetrations. Manufacturer guidanceConsult manufacturer for details. |
Colour/ Finish | Alaska Grey (RAL 7000). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Albatross (RAL 240 80 05). Guidance for specification option: Colorcoat HPS200 Ultra®. Anthracite (RAL 7016). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Ardenne (RAL 7022). Guidance for specification option: Colorcoat HPS200 Ultra®. Barn Red (RAL 030 30 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Black (RAL 9005). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Burano (RAL 3004). Guidance for specification option: Colorcoat HPS200 Ultra®. Chili (RAL 3000). Guidance for specification option: Colorcoat HPS200 Ultra®. Goosewing Grey (RAL 7038). Guidance for specification option: Colorcoat HPS200 Ultra®. Green Grey (RAL 150 40 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Hamlet (RAL 9002). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Heritage Green (RAL 6002). Guidance for specification option: Colorcoat HPS200 Ultra®. Honesty (RAL 1015). Guidance for specification option: Colorcoat HPS200 Ultra®. Ice Blue (RAL 230 80 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Ivy (RAL 170 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Jade (RAL 150 50 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Juniper Green (RAL 140 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Marlstone (RAL 1013). Guidance for specification option: Colorcoat HPS200 Ultra®. Meadowland (RAL 100 80 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Merlin Grey (RAL 180 40 05). Guidance for specification option: Colorcoat HPS200 Ultra®. Mole Brown (RAL 070 40 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Moorland Green (RAL 100 60 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Mushroom (RAL 080 70 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Ocean Blue (RAL 220 30 25). Guidance for specification option: Colorcoat HPS200 Ultra®. Olive Green (RAL 100 30 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Oxidised (RAL 050 20 10). Guidance for specification option: Colorcoat HPS200 Ultra®. Petra (RAL 3013). Guidance for specification option: Colorcoat HPS200 Ultra®. Pure Grey (RAL 000 55 00). Guidance for specification option: Colorcoat HPS200 Ultra®. Raven (RAL 7021). Guidance for specification option: Colorcoat HPS200 Ultra®. Sargasso (RAL 5003). Guidance for specification option: Colorcoat HPS200 Ultra®. Colorcoat Prisma®. Solent Blue (RAL 240 40 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Straw (RAL 080 70 30). Guidance for specification option: Colorcoat HPS200 Ultra®. Svelte Grey (RAL 080 50 20). Guidance for specification option: Colorcoat HPS200 Ultra®. Terracotta (RAL 040 40 40). Guidance for specification option: Colorcoat HPS200 Ultra®. Van Dyke Brown (RAL 8014). Guidance for specification option: Colorcoat HPS200 Ultra®. Wedgewood Blue (RAL 220 5 15). Guidance for specification option: Colorcoat HPS200 Ultra®. White (RAL 9003). Guidance for specification option: Colorcoat HPS200 Ultra®. |
Sustainability data
Material | Steel |
