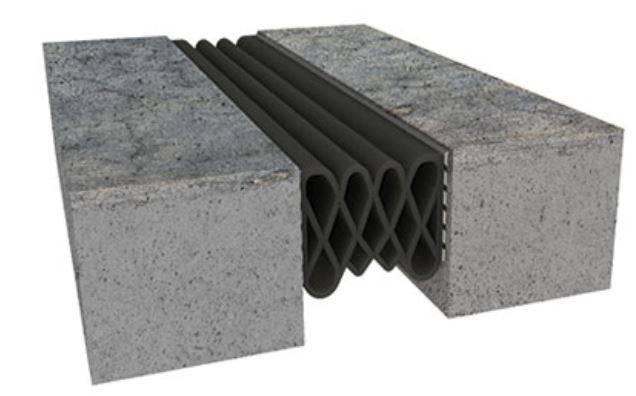

Epoxied-in-place Exterior Compression Seal (AR Series)

Verified by manufacturer 3 months ago

AR-100S

Inpro Variant:

Compression seal suitable for 25–100 mm joints requiring 50%+- movement

Jump to:
07494249485 Website

Application

Suitable for horizontal and vertical applications where watertight conditions are required.

Description

Seal expansion joint system which is heat weldable for watertight seams.


Features and benefits:

  • Heavy pedestrian/ light duty vehicular loading capabilities.
  • Appropriate for horizontal and vertical applications where watertight conditions are required.
  • Comprised of a tough synthetic rubber called "Santoprene".
  • Superior movement while being highly resistant to UV degradation, extreme temperatures and chemicals.
  • Heat weldable for watertight seams and transition points.
  • Industry unique profile ensures against waviness or bulging while addressing high load resistance.
  • Unique design incorporates ribs on side faces to aid in pooling epoxy and adding surface area for increased adhesion.
  • Profile engineered for improved ease of installation.
  • Colour seals available, contact manufacturer for more information.
  • Lateral shear capable.

General information

Color

Black

Material

Rubber

Guidance for specification option:

UL Greenguard Gold certified compression seal.

Warranty description

Four year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Size

-

Manufacturer guidance

25–102 mm joint width.

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

E40/545 Compressible sealing strip system

F30/615 Movement joints without sealant

F30/78 Fire-resisting movement joints without sealant

H42/661 Sealant joints

Product range

Expansion Joint Systems

Specification data - Strip movement joints

Joint width

19–32 mm.

Insert

-

Material

Synthetic rubber.

Guidance for specification option:

UL Greenguard Gold Certified Santoprene Rubber.

Colour

Black.

Height

51 mm.

Manufacturer guidance

Seal height.

Depth

56 mm.

Manufacturer guidance

Installed depth.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
