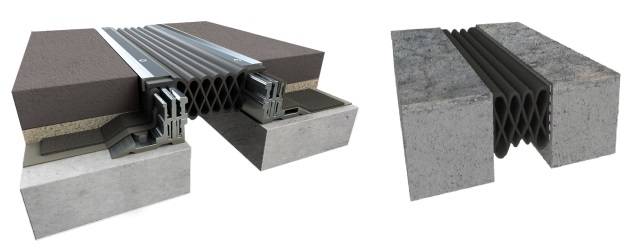

Exterior Splitslab Watertight Compression Seal Assembly (SR Series)

Verified by manufacturer 3 months ago

Inpro

Architectural compression seals for use with expansion joint systems. For use on exterior plazas, greenroofs, stadiums, and mass transit projects applying split slab construction.

Jump to:
07494249485 Website

Application

For use on exterior building structures including plazas, green roofs, stadiums and mass transit projects where watertight conditions are required.

Description

Architectural compression seals for use with expansion joint systems, which help to protect buildings from natural shifting and movement.


Features and benefits:

  • Applicable to split slab construction with waterproofing between structural and screed course slabs.
  • Compression seal mechanically sandwiched by aluminium upstands with multiple flashing counterflashing options to match single ply membrane or fluid applied waterproofing needs.
  • Variable upstand heights allow for a wide range of topping slab thicknesses.
  • Aluminium or Stainless steel retaining caps -or- cover plates available to meet pedestrian or high point loads .
  • UL Greenguard Gold Certified.
  • Fully heat weldable for watertight seams and transitions.

General information

Color

Black

Finish

Aluminium

Guidance for specification option:

Serrated aluminium cover available.

Stainless steel

Guidance for specification option:

Linear brushed stainless steel cover available.

Material

Rubber

Guidance for specification option:

UL Greenguard Gold Certified Santoprene Rubber.

Warranty description

Five year

Guidance for specification option:

Standard limited warranty against material and manufacturing defects for a period of not less than five years when installed in accordance with manufacturer’s recommendations.

Size

Guidance for specification option:

51–102 mm joint width.

Uniclass

Pr_35_90_53_86 Strip movement jointsPrimary

CAWS

F30/615 Movement joints without sealant

F30/78 Fire-resisting movement joints without sealant

H42/661 Sealant joints

Product range

Expansion Joint Systems

Specification data - Strip movement joints

Joint width

51–102 mm.

Edging

-

Material

Aluminium.

Stainless steel.

Colour

Black.

Insert

-

Material

Synthetic rubber.

Guidance for specification option:

UL Greenguard Gold Certified Santoprene Rubber.

Colour

Black.

Accessories

Not required.

Cover plates.

Guidance for specification option:

Aluminium or stainless steel. For SR Series only. Accommodates high loads or pedestrian traffic.

Retaining caps.

Guidance for specification option:

Aluminium or stainless steel. For SR Series only. Accommodates high loads or pedestrian traffic.

Fire barriers.

Guidance for specification option:

Various options available, consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
