Estate Railings

Verified by manufacturer 4 months ago

Jacksons Fencing Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

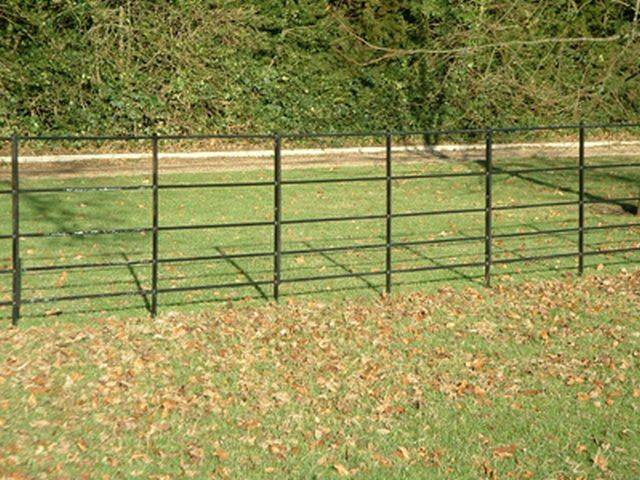

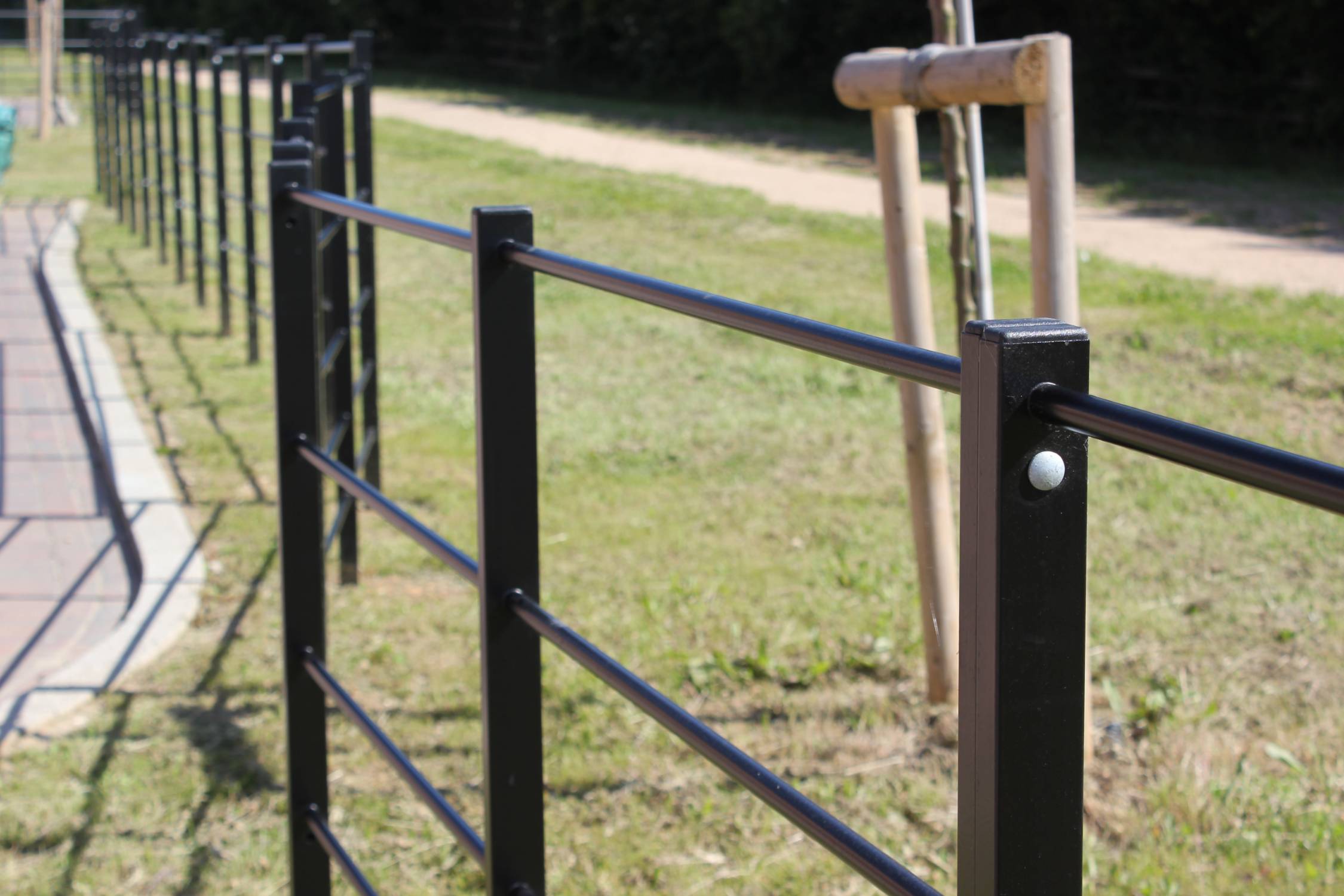

Tubular metal railings for use in agricultural settings, country parks, and large estates, for demarcation.

Jump to:
0800 408 4757 Website

Application

For residential properties, country estates, parks and leisure facilities.

Description

Tubular metal railings for demarcation. Commonly used in country parks, agricultural settings, and large estates. Traditional style metal rail fence in kit form.


Features and benefits:

  • Tubular construction for extra strength.
  • Hot-dip galvanized finish as standard to BS EN 1461 and can also be powder coated to BS EN 13438.
  • Low life time cost.
  • 25-year service life guarantee.
  • Stronger than traditional flat bar railings.
  • Matching gates also available.
  • Can be powder-coated at additional cost.

General information

Color

Green

Black

Other

Blue

Brown

Show more

Finish

Galvanized

Powder-coated

Material

Steel

Width

2000 mm

Guidance for specification option:

Per panel.

Height

1215 mm

Warranty description

25 year

Uniclass

Ss_25_15_60_55 Metal post and panel barrier systemsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/340 Steel vertical bar fencing

Q40/430 Proprietary fencing

Specification data - Metal post and panel barrier systems

Posts

50 x 25 x 2 mm rectangular hollow section (RHS).

Guidance for specification option:

End posts are drilled with two holes for bolting to the next panel.

Post foundations

Set in concrete.

Guidance for specification option:

970 mm centres.

Rails

19 mm-diameter circular hollow section (CHS).

Guidance for specification option:

2900 mm-long.

Panels

50 x 25 x 2 rectangular hollow section (RHS) posts with 19 mm-diameter CHS rails.

Guidance for specification option:

Height: 1215 mm above finished ground level.

Width: 2000 mm per panel.

System accessories

None.

Matching gates.

Mesh cladding.

Spigot for end posts.

Worked finish

Galvanized.

Guidance for specification option:

Standard.

Powder-coated, black RAL 9005.

Powder-coated, green RAL 6005.

Powder-coated, other.

Guidance for specification option:

Insert requirements.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
