Pedestrian Guard Railings

Verified by manufacturer 4 months ago

Jacksons Fencing Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Hollow tubular rail galvanised pedestrian railings.

Jump to:
0800 408 4757 Website

Application

Specifically designed for highway applications, providing an effective roadside barrier for pedestrians while allowing good visibility from a motorist's view point. For use on highways and schools.

Description

Hollow tubular rail fencing. The welded hollow tubular rail and solid pale construction is extremely strong and features a bolt-together design for ease of installation or replacement.


Features and benefits:

  • Conforms to UK Highways Specifications.
  • Strong welded construction to BS EN 7818 Class 1.
  • Can be manufactured to suit gradients and radii.
  • Galvanized to BS EN 1461 as standard or can be powder-coated to BS EN 13438 at extra cost.
  • Standard, see-through or staggered designs.
  • 25-year guarantee.

General information

Color

Other

Finish

Galvanized

Powder-coated

Material

Steel

Width

1000 mm

1800 mm

2000 mm

Height

1100 mm

Warranty description

25 year

Uniclass

Ss_25_15_60_55 Metal post and panel barrier systemsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/340 Steel vertical bar fencing

Q40/430 Proprietary fencing

Specification data - Metal post and panel barrier systems

Posts

1370 mm long, 50 x 30 mm.

Guidance for specification option:

Centres: To suit panel width.

Height above ground: 1100 mm.

Post foundations

Set in concrete.

Base plated.

Cranked.

Rails

Welded hollow tubular rail.

Guidance for specification option:

Vertical and horizontal rails: 50 x 30 mm rectangular hollow section (RHS) and pales are 12 mm solid at 112 mm centres.

Panels

Standard, 1100 x 1000 mm.

Guidance for specification option:

Inline pales from top to bottom.

Standard, 1100 x 1800 mm.

Guidance for specification option:

Inline pales from top to bottom.

Standard, 1100 x 2000 mm.

Guidance for specification option:

Inline pales from top to bottom.

See-through, 1100 x 1000 mm.

Guidance for specification option:

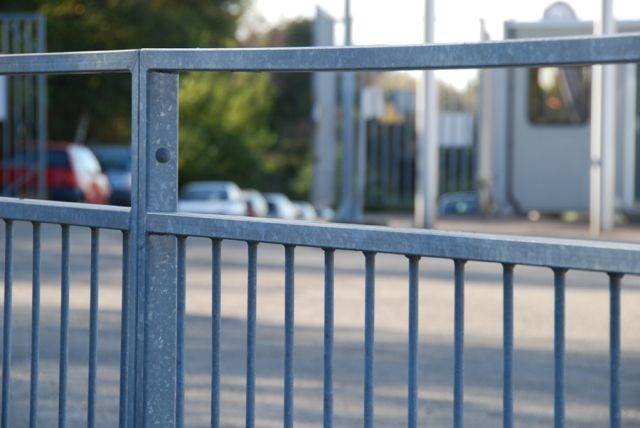

Inline pales and clear visibility slot below top rail, providing increased vision for motorists.

See-through, 1100 x 1800 mm.

Guidance for specification option:

Inline pales and clear visibility slot below top rail, providing increased vision for motorists.

See-through, 1100 x 2000 mm.

Guidance for specification option:

Inline pales and clear visibility slot below top rail, providing increased vision for motorists.

Staggered, 1100 x 1000 mm.

Guidance for specification option:

Infill bars are staggered.

Staggered, 1100 x 1800 mm.

Guidance for specification option:

Infill bars are staggered.

Staggered, 1100 x 2000 mm.

Guidance for specification option:

Infill bars are staggered.

System accessories

None.

Matching gates.

Guidance for specification option:

To be specified separately.

Fence topping

Flat bar top.

Worked finish

Galvanized.

Guidance for specification option:

Standard; hot-dip galvanized.

Powder-coated, black RAL 9005.

Powder-coated, green RAL 6005.

Powder-coated, other.

Guidance for specification option:

Insert requirements.

Marine coated.

Guidance for specification option:

For installations near the sea or an estuary.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
