Euroweep-vent

Verified by manufacturer 6 months ago

Cavity Trays Ltd

Plastic perpend joint weep hole and cavity ventilator of reduced size.

Jump to:
+44 (0)1935 474769 Website

Application

for use in external masonry leaves for ventilating cavities and suspended floor voids.

Description

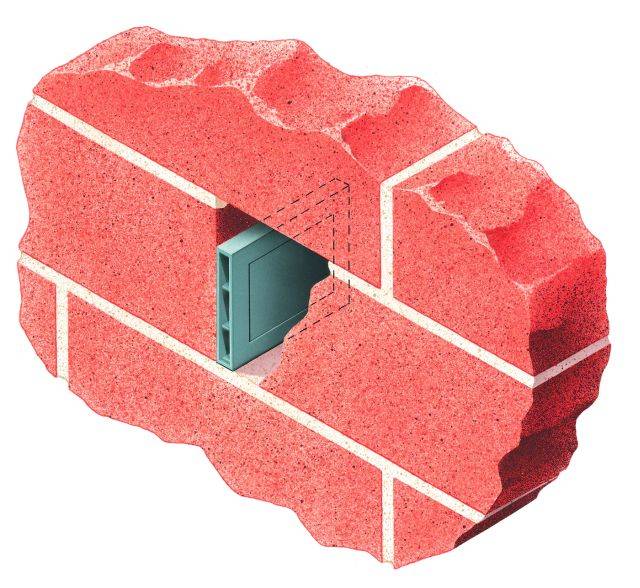

A dual function plastics perpend joint weep hole and cavity ventilator, of a size less than the standard full perpend joint height, for use in external masonry leaves for ventilating cavities and suspended floor voids.


Features and benefits:

  • Forward set grille prevents insect fostering within body of weep/vent and maximizes wind driven rain deflection.
  • Vertical front.
  • Can be used with restricted height masonry units.

General information

Color

Material

Polypropylene

Shape

Rectangle

Length

87 mm

Width

9 mm

Height

49 mm

Uniclass

Pr_35_90_50_62 Perpend joint plastics weepholesPrimary

CAWS

F30/132 Perpend joint plastics weep holes

F30/175 Cavity ventilators

F30/8 Perpend joint plastics weep holes

Specification data - Perpend joint plastics weepholes

Colour

Beige.

Black.

Brown.

Clear.

Grey.

Terracotta.

White.

Duct extension

Not required.

Required.

Render front cover

Not required.

Required.

Free airflow

300 mm².

Guidance for specification option:

(Approximate).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
