Small Weep Vent - Adjustable

Verified by manufacturer 7 months ago

Cavity Trays Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Small perpend joint, telescopic weep hole/ cavity ventilator.

Jump to:
+44 (0)1935 474769 Website

Application

For use in external masonry leaves of thickness up to 163 mm.

Description

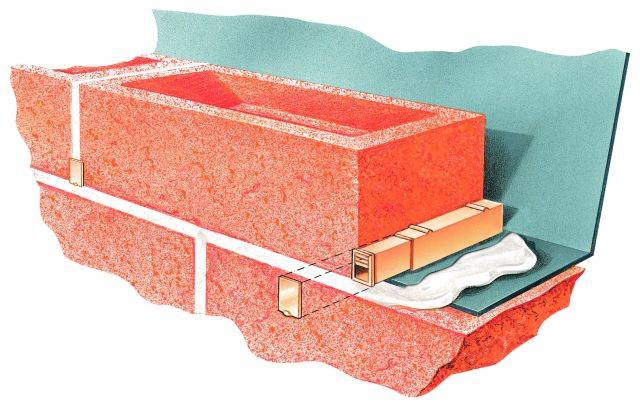

A small perpend joint weep hole/ cavity ventilator with in-built telescopic facility.


Features and Benefits:

  • Forward set grille prevents insect fostering within body of weep and maximizes wind driven rain deflection.
  • Telescopic feature can project the small weep forward of the face-line when rendering, and pushed back upon completion.
  • Includes a removable, protective cap on the front of the weep to prevent render or mortar soiling during construction.

General information

Color

Beige

Black

Grey

Brown

Material

Polypropylene

Guidance for specification option:

BS polypropylene.

Length

93 mm

Width

9.5 mm

Height

24 mm

Uniclass

Pr_35_90_50_62 Perpend joint plastics weepholesPrimary

CAWS

F30/132 Perpend joint plastics weep holes

F30/175 Cavity ventilators

F30/8 Perpend joint plastics weep holes

Specification data - Perpend joint plastics weepholes

Colour

Beige.

Black.

Clear.

Grey.

Terracotta.

Execution

Installing perpend joint plastics weep holes.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polypropylene

Guidance for specification option:

BS polypropylene.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.3 kg CO₂ eq/kg

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Third party certifications

EPD

EPD

EPD - 0848

Literature

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
