Pyramid Weep - Masonry Bleed Straw

Verified by manufacturer 8 months ago

Cavity Trays Ltd

Low profile bleed straw styled weep.

Jump to:
+44 (0)1935 474769 Website

Application

For new and existing applications.

Description

Features and benefits:

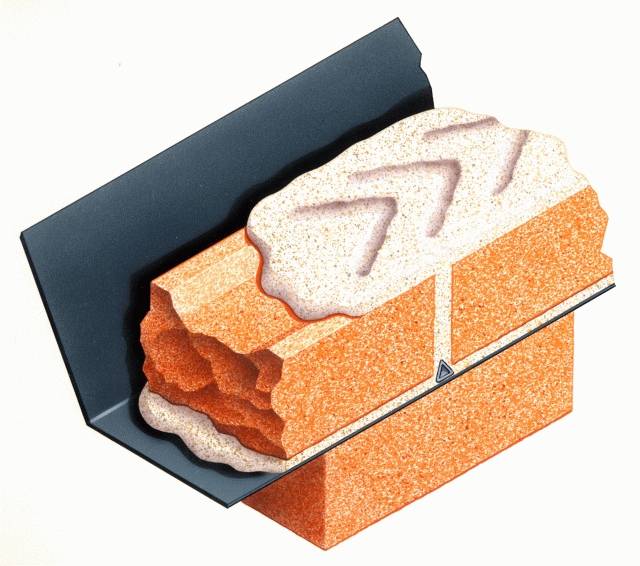

  • A triangular PVC-U weep based on the traditional bleed straw weep.
  • Can be incorporated within a standard sized mortar bed. If the mortar bed and perp joints are smaller than standard, the Pyramid Weep can be positioned with its base in the bedding course and its converging point rising into the perp joint.
  • The front of the weep finishes flush with the external face and is almost unnoticeable within the finished masonry.

General information

Color

Grey

Material

PVC-U

Guidance for specification option:

Un-plasticized polyvinyl chloride.

Shape

Triangle

Length

100 mm

Width

8 mm

Height

8 mm

Uniclass

Pr_35_90_50_62 Perpend joint plastics weepholesPrimary

CAWS

F30/132 Perpend joint plastics weep holes

F30/8 Perpend joint plastics weep holes

Specification data - Perpend joint plastics weepholes

Colour

Mortar Grey.

Dimensions

8 x 8 x 8 x 100 mm.

Guidance for specification option:

To suit standard masonry skin.

8 x 8 x 8 x 240 mm.

Guidance for specification option:

To suit masonry skins up to 240 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
